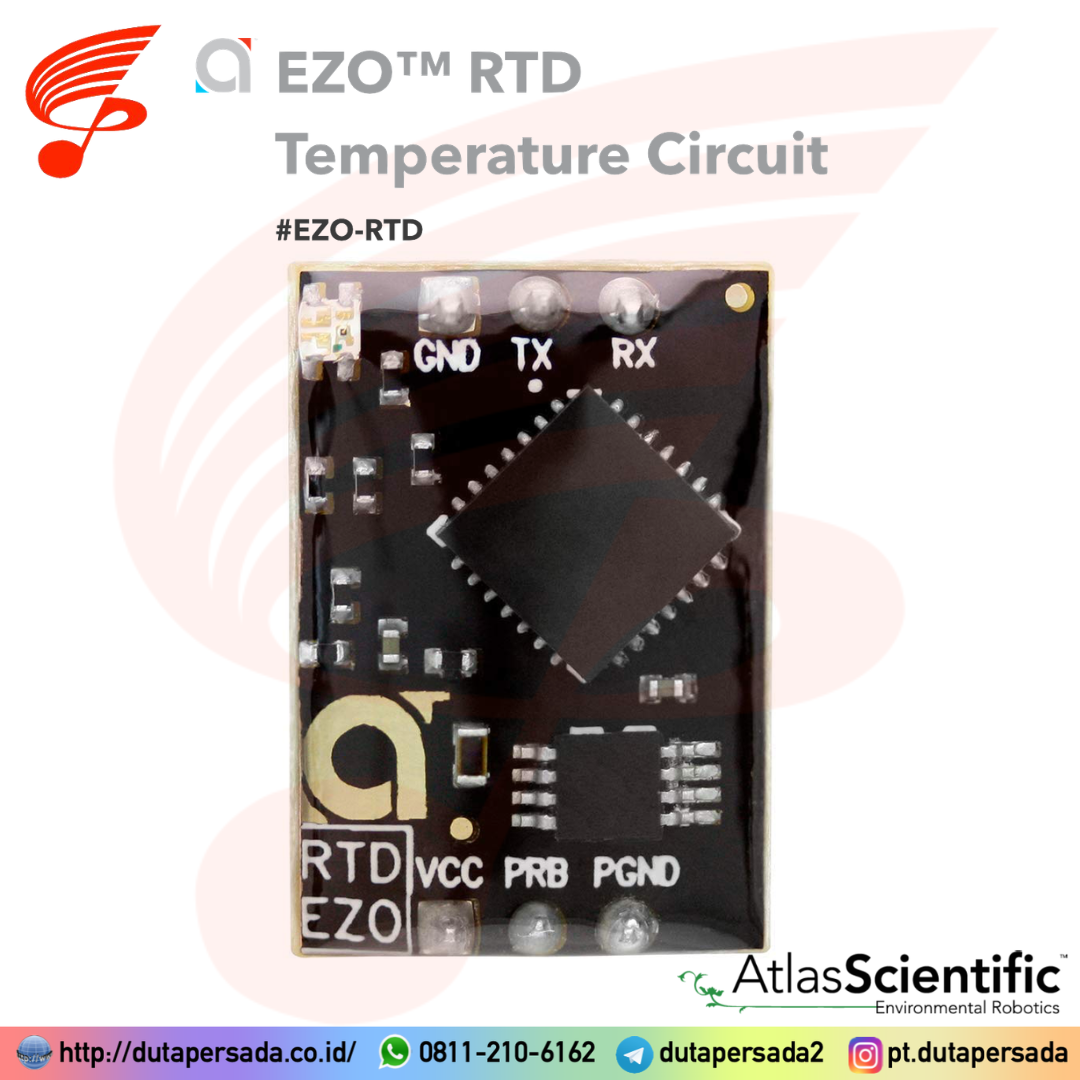

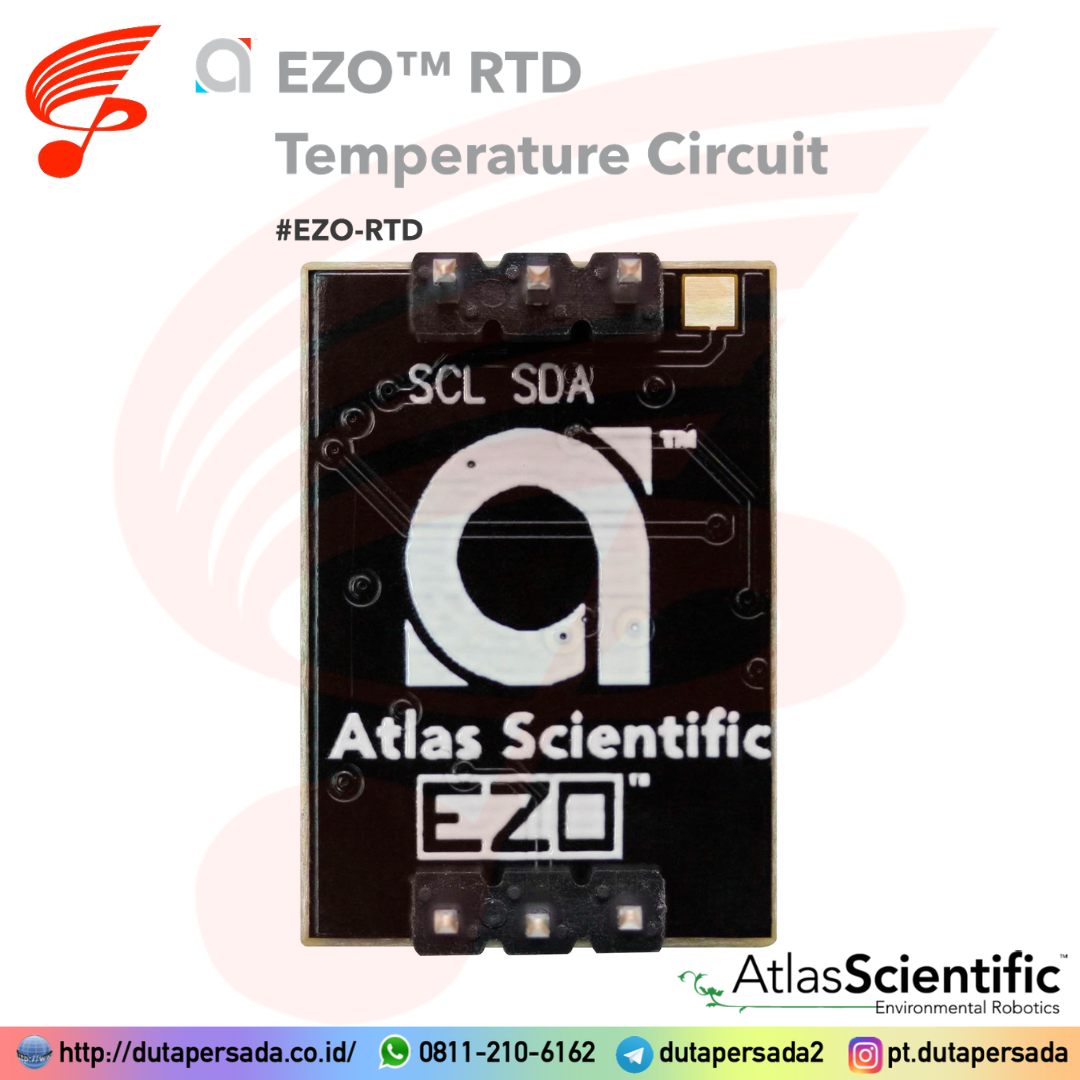

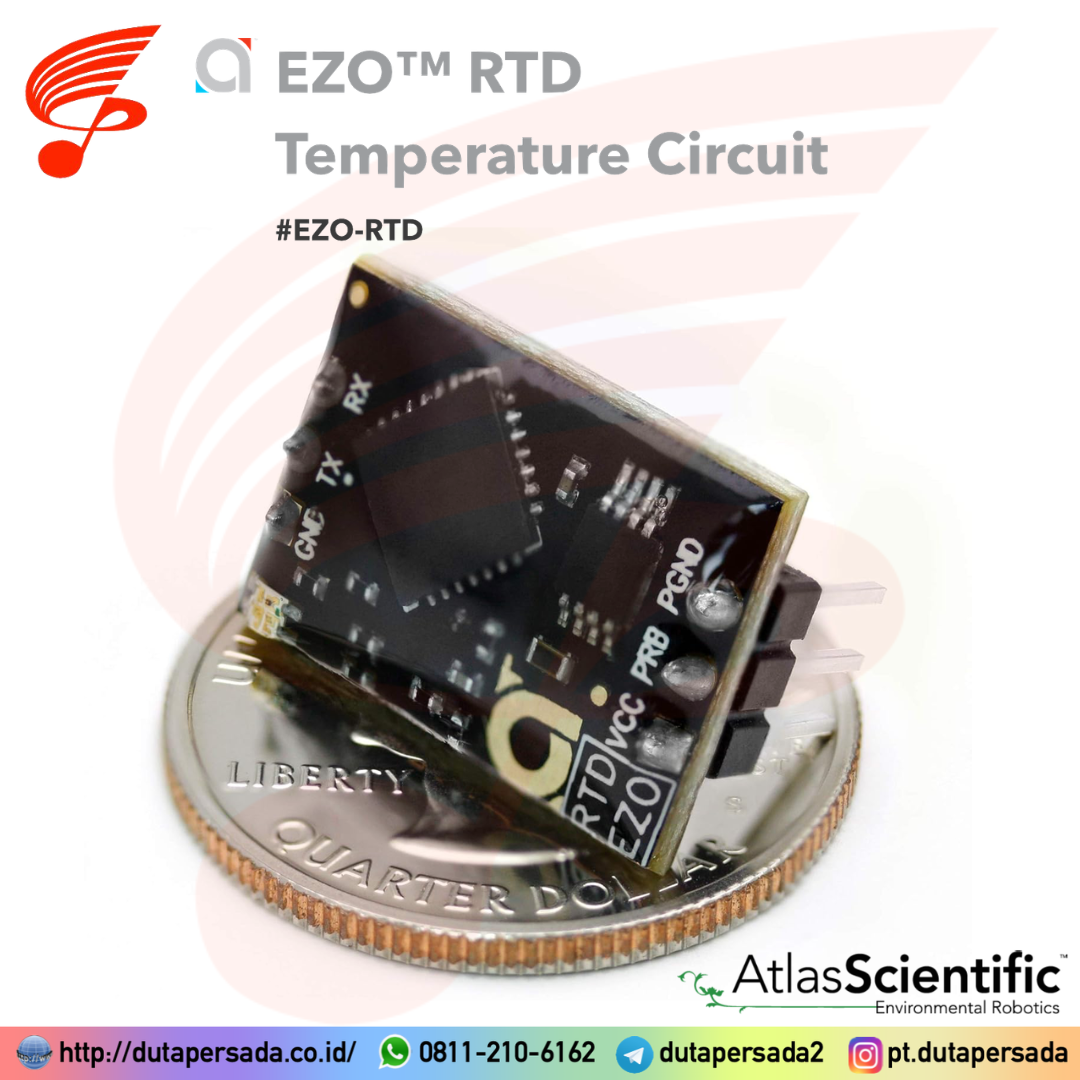

Atlas Scientific EZO RTD Temperature Circuit #EZO-RTD
Availability:
Stok 1
There is no shortage of temperature probes out there, and the most accurate of all is the platinum RTD probe. But, converting the resistance of platinum to an actual temperature is unusually complicated. Fortunately, the Atlas Scientific EZO-RTD Circuit makes taking high accuracy readings from a platinum RTD probes easy. The EZO-RTD Circuit can work with any class of 2, 3, or 4 wire platinum RTD probes and has a sensing range of -126.000 °C to +1,254 °C.
Status Barang: Ready
Kondisi: Baru
Made in the USA
Part #EZO-RTD
OVERVIEW:
There is no shortage of temperature probes out there, and the most accurate of all is the platinum RTD probe. But, converting the resistance of platinum to an actual temperature is unusually complicated. Fortunately, the Atlas Scientific EZO-RTD Circuit makes taking high accuracy readings from a platinum RTD probes easy. The EZO-RTD Circuit can work with any class of 2, 3, or 4 wire platinum RTD probes and has a sensing range of -126.000 °C to +1,254 °C.
SPECIFICATION:
◆ RTD: Resistance Temperature Detector
◆ Reads: Temperature
◆ Range: -126.000 °C − 1254 °C
◆ Resolution: 0.001
◆ Accuracy: +/– (0.1 + 0.0017 x ̊C)
◆ Response time: 1 reading per sec
◆ Supported probes: Any type & brand PT-100 or PT-1000 RTD
◆ Calibration: Single point
◆ Temperature output: °C, °K, or °F
◆ Data protocol: UART & I2C
◆ Default I2C address: 102 (0x66)
◆ Operating voltage: 3.3V − 5.5V
◆ Data format: ASCII
◆ Onboard Data Logger: 50 Readings
EACH UNIT INCLUDES WITH:
◆ EZO RTD Temperature Circuit only
| Berat | 0,1 kg |
|---|
Based on 0 reviews
Be the first to review “Atlas Scientific EZO RTD Temperature Circuit #EZO-RTD”
Produk Terkait
- Ready StockEZO
Atlas Scientific EZO Conductivity Circuit #EZO-EC
From chemical production to hydroponics, conductivity is a fundamental measurement of water chemistry. The Atlas Scientific EZO-EC Circuit reads conductivity, salinity, and TDS (PPM). Embedding this module into your machine gives you access to the same accuracy and functionality found in costly bench-top conductivity meters. If you need accurate readings that you can rely on, the EZO-EC circuit is the drop-in solution you have been looking for.
SKU: EZO-EC - Ready StockEZO

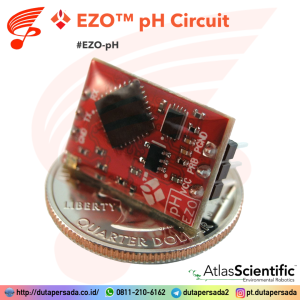

Atlas Scientific EZO pH Circuit # EZO-pH
