EZO

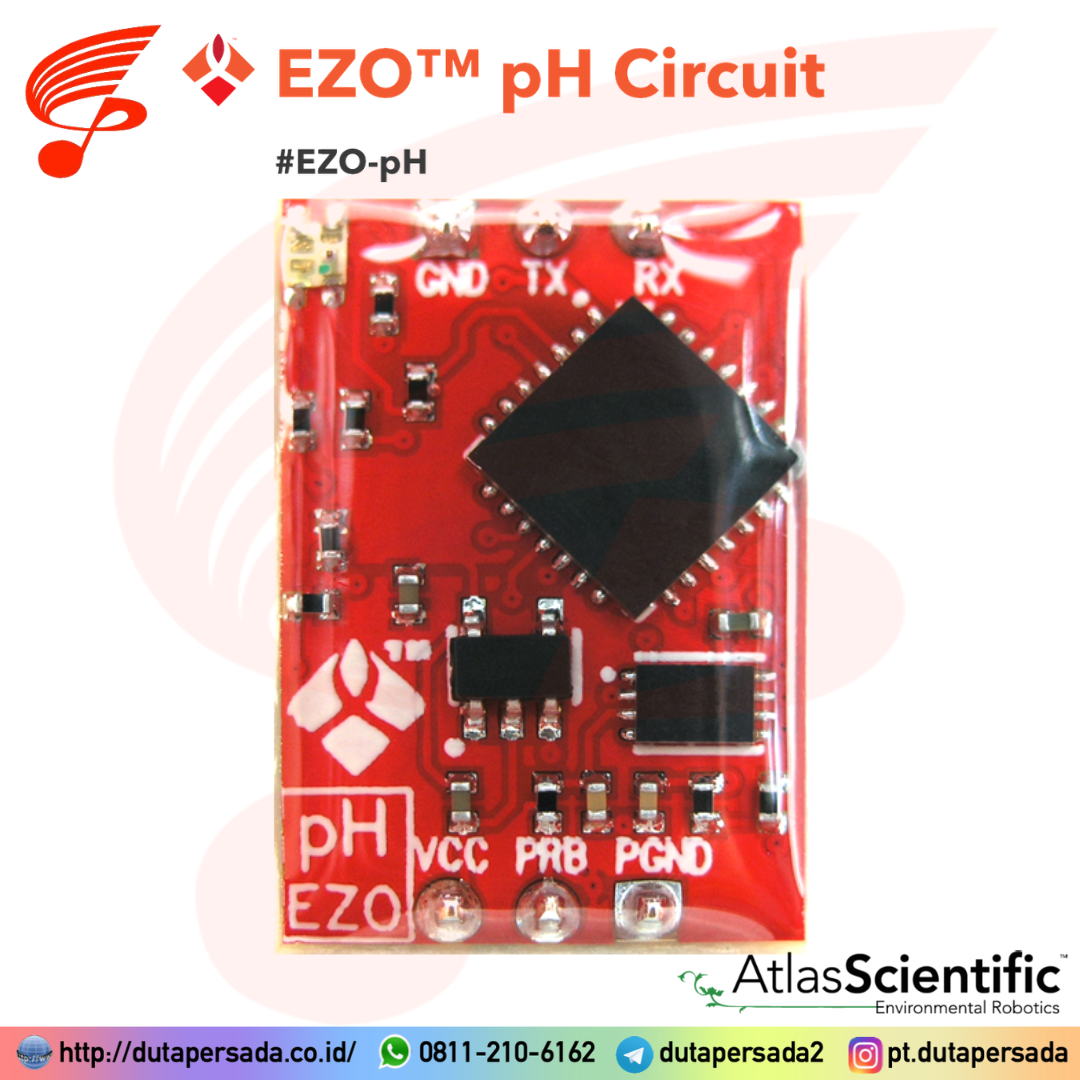

Atlas Scientific EZO pH Circuit # EZO-pH
Availability:
Stok 5
Although it is a common measurement, accurately reading pH is very difficult. Atlas Scientific’s EZO-pH circuit gives engineers the ability to read pH with the same accuracy and capabilities that were traditionally only found in expensive bench-top meters.
With an easy to use data protocol, simple command structure, and an easy to read datasheet engineers of any skill level will be able to add high accuracy pH readings to their next project quickly.
Status Barang: Ready
Kondisi: Baru
Minimal Order: 1 pcs
Made in the USA
Part # EZO-pH
OVERVIEW:
Although it is a common measurement, accurately reading pH is very difficult. Atlas Scientific’s EZO-pH circuit gives engineers the ability to read pH with the same accuracy and capabilities that were traditionally only found in expensive bench-top meters.
With an easy to use data protocol, simple command structure, and an easy to read datasheet engineers of any skill level will be able to add high accuracy pH readings to their next project quickly.
SPECIFICATION:
◆ Reads: pH
◆ Range: .001 − 14.000
◆ Resolution: .001
◆ Accuracy: +/– 0.002
◆ Response time: 1 reading per sec
◆ Supported probes: Any type & brand
◆ Calibration: 1, 2, 3 point
◆ Temp. compensation: Yes
◆ Data protocol: UART & I2C
◆ Default I2C address: 99 (0x63)
◆ Operating voltage: 3.3V − 5V
◆ Data format: ASCII
EACH UNIT INCLUDES WITH:
◆ EZO pH Circuit only
| Berat | 0,1 kg |
|---|
