Atlas Scientific Industrial Conductivity K 1.0 Kit #KIT-106E

Made in the USA

Part #KIT-106E

This Conductivity probe can be fully submerged in fresh or salt water, up to the tinned leads indefinitely.

OVERVIEW:
Are you working with a PLC and aren’t sure what parts are right for you? Let us help you. This is the Atlas Scientific, Industrial Conductivity kit. It comes with everything you need to take high accuracy, interference-free readings with a PLC. The industrial strength conductivity probe is ready for the job, whatever it may be. This probe doesn’t care, from batch process chemical production to wastewater treatment. You can use it for anything. The DIN rail mount and wide operating voltage makes it easy to install. The 4-20mA data output and display makes it easy to read. And the simple calibration protocol gets you up and running in no time.

SPECIFICATION:
◆ Reads: Conductivity
◆ Range: 5 − 200,000 μS/cm
◆ Accuracy: +/ – 2%
◆ Connector: Tinned leads
◆ Response Time: 90% in 1s
◆ Max pressure: 200 PSI
◆ Max depth: 60m (197 ft)
◆ Temperature range °C: 0 − 110 °C
◆ Cable length: 3 meters
◆ Body material: CPVC, Graphite, Viton
◆ Internal temp. probe: Yes
◆ Temp. accuracy: +/- (0.15 + (0.002*t))

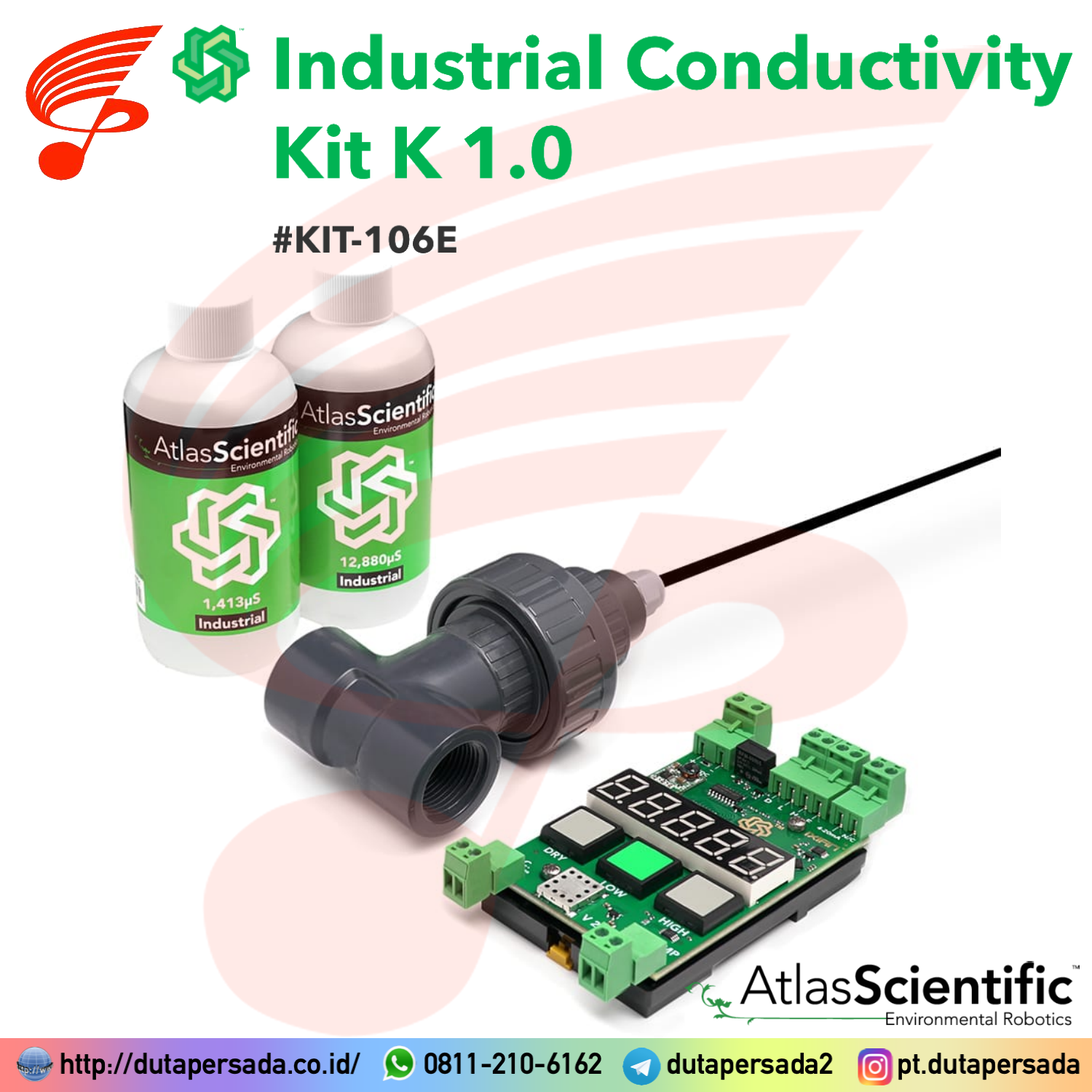

EACH UNIT INCLUDES WITH:

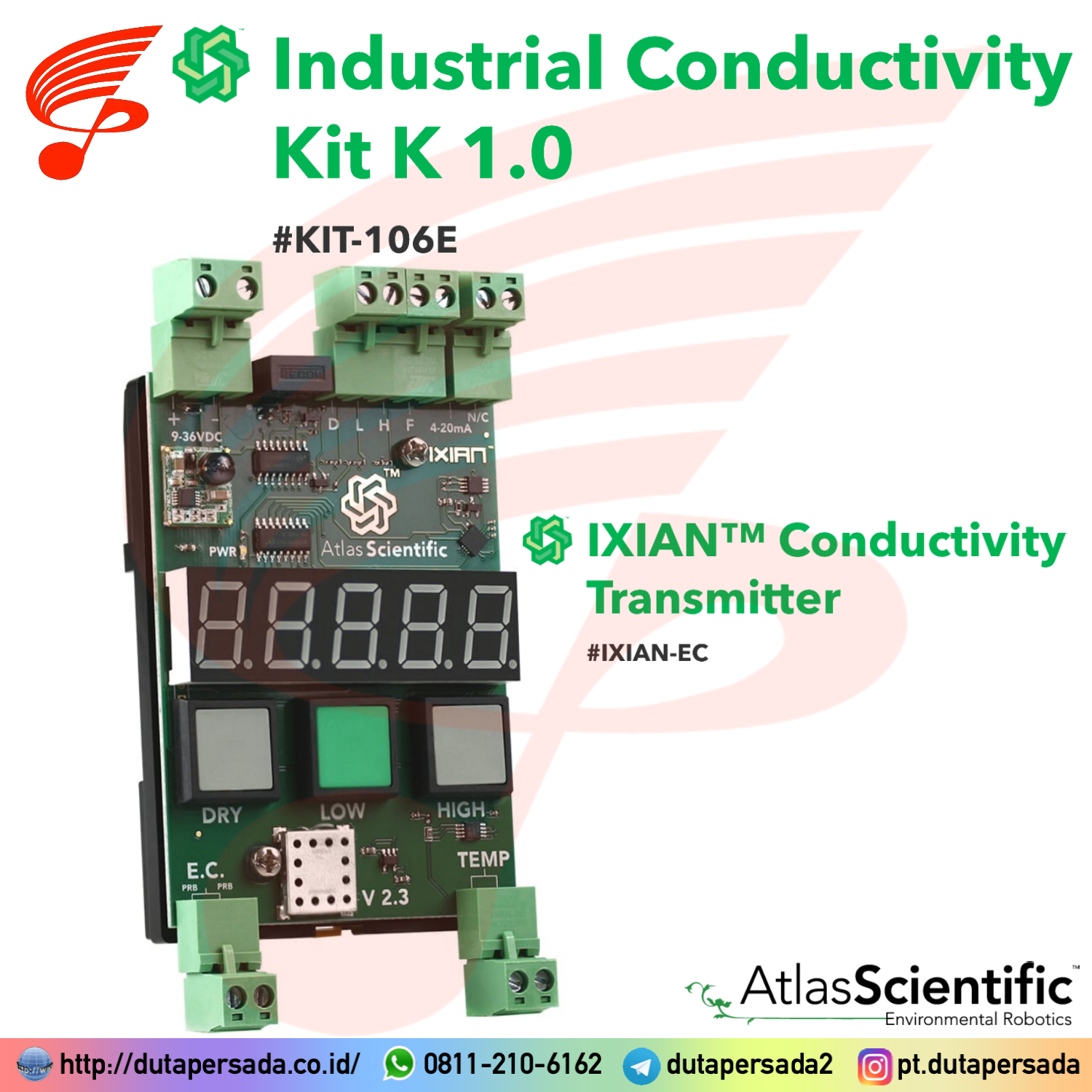

◆ 1x IXIAN Conductivity Transmitter

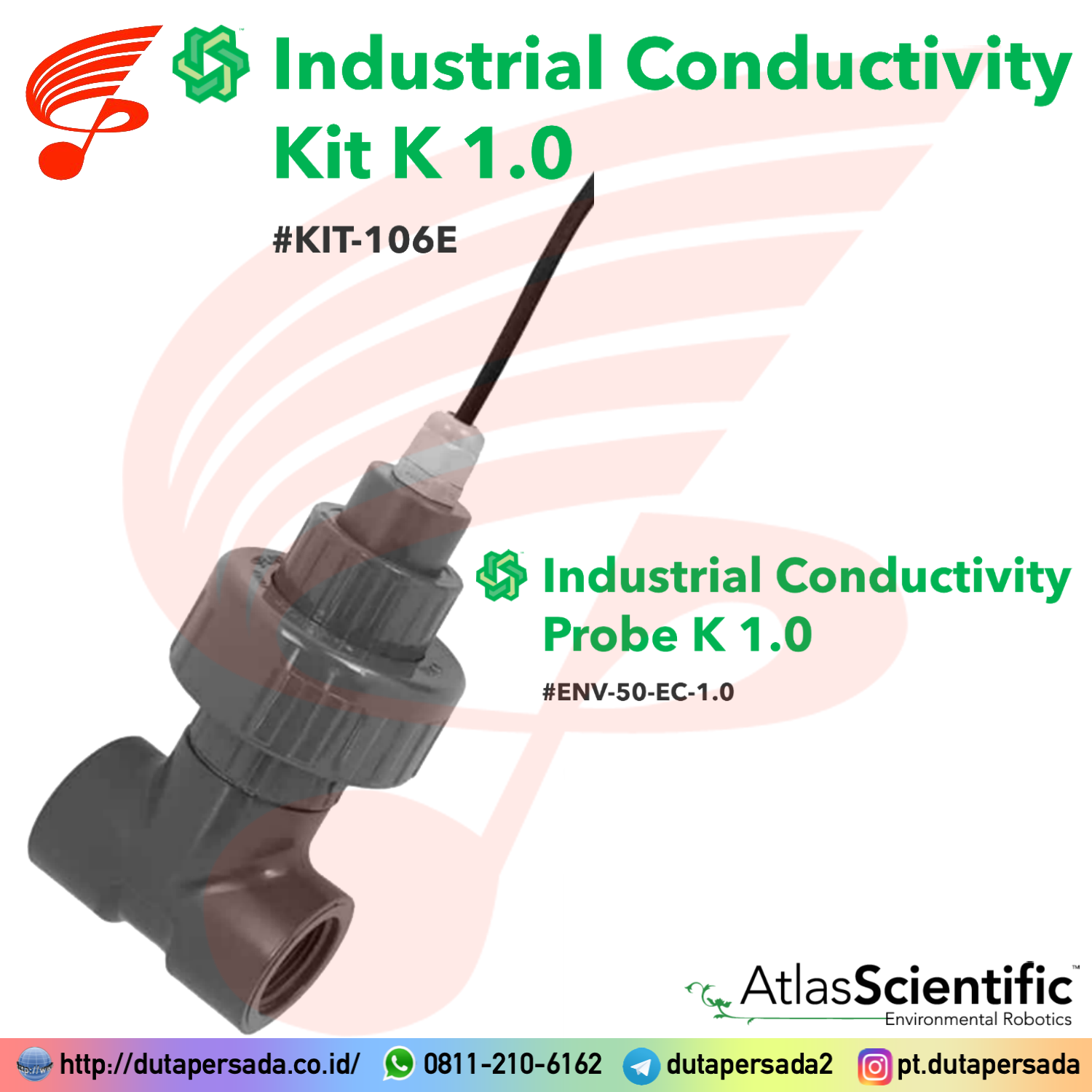

◆ 1x Industrial Conductivity Probe K 1.0
◆ 3/4″ NPT pipe thread on input and output side
◆ 1x 250ml (8oz) calibration solutions (1,413µS)
◆ 1x 250ml (8oz) calibration solutions (12,880µS)
