EZO

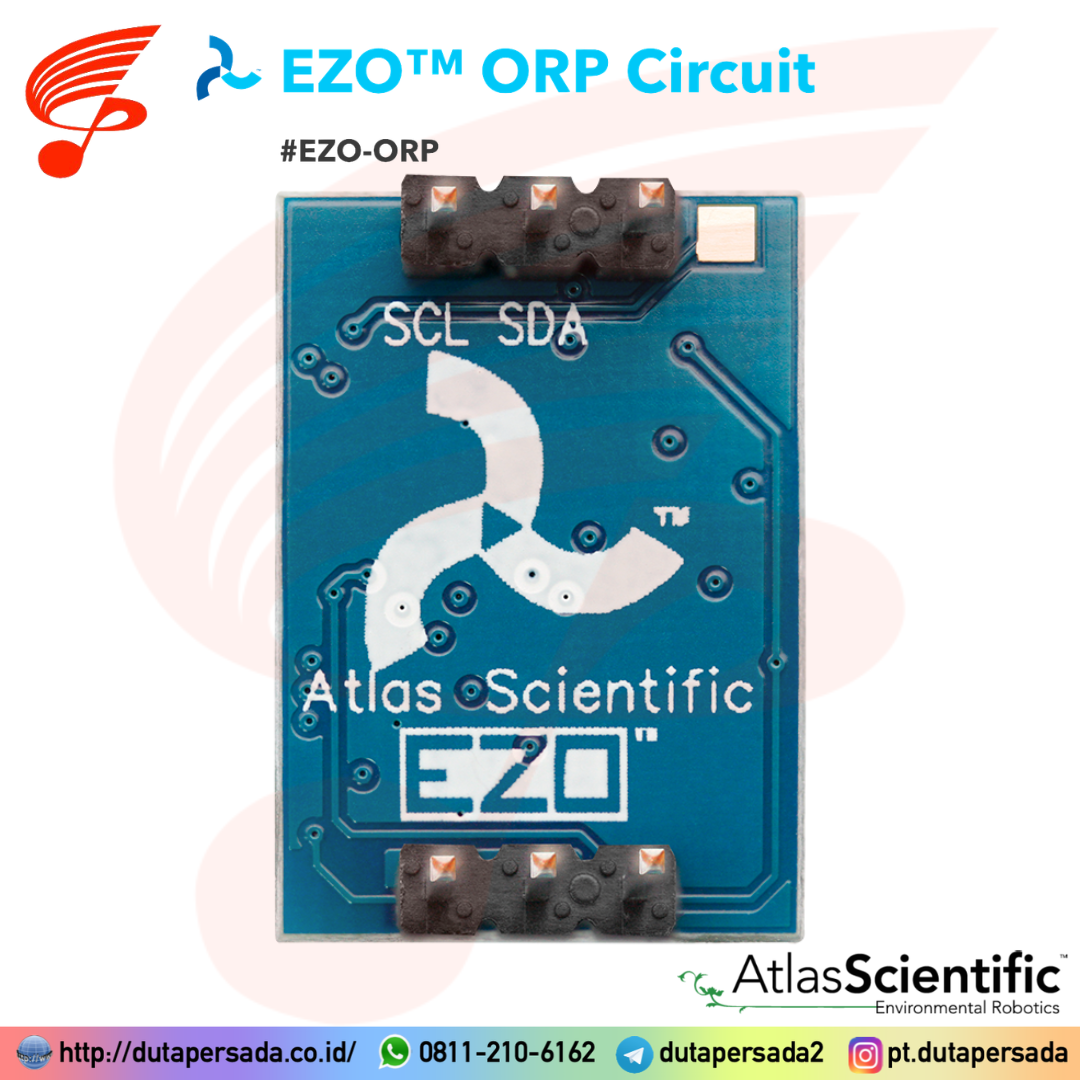

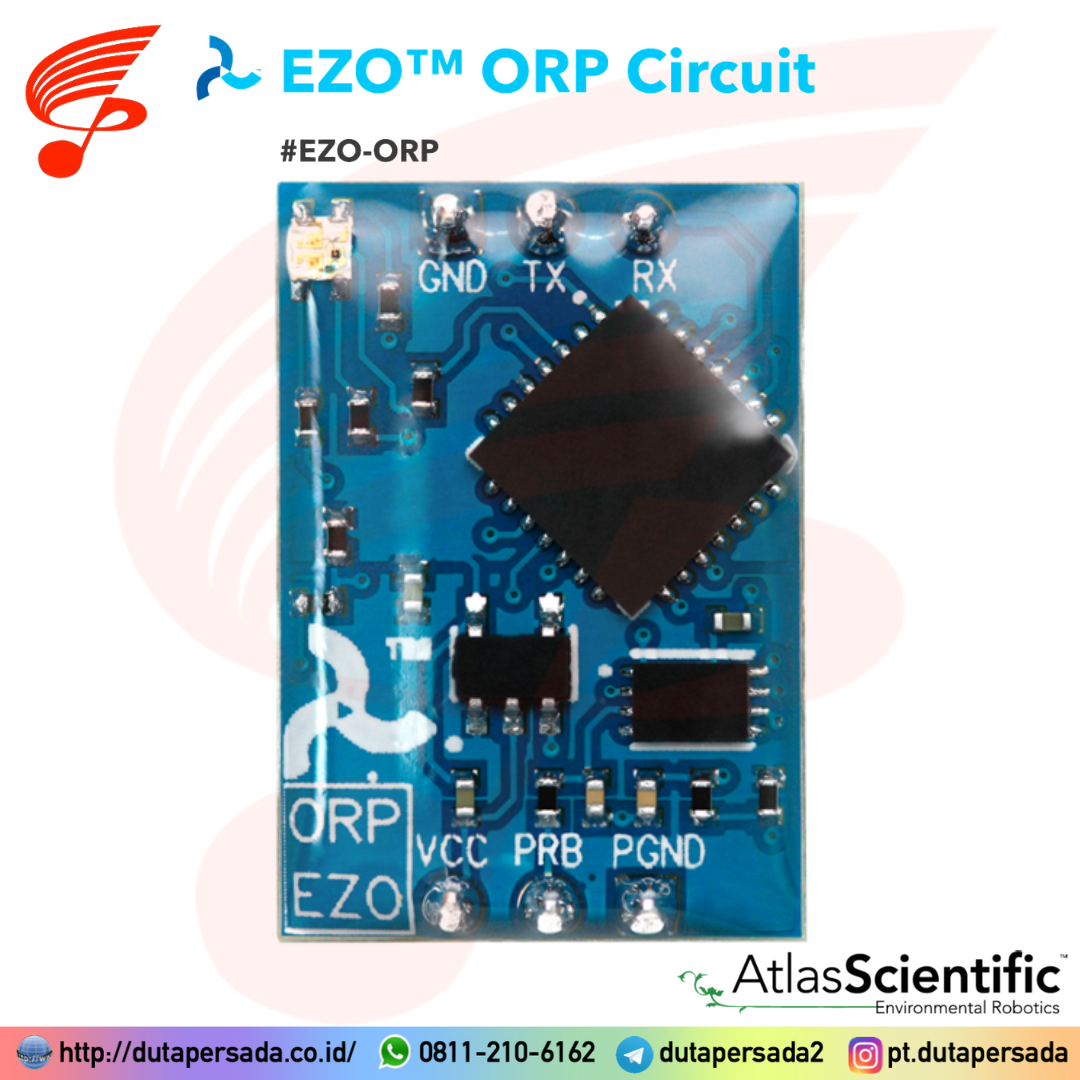

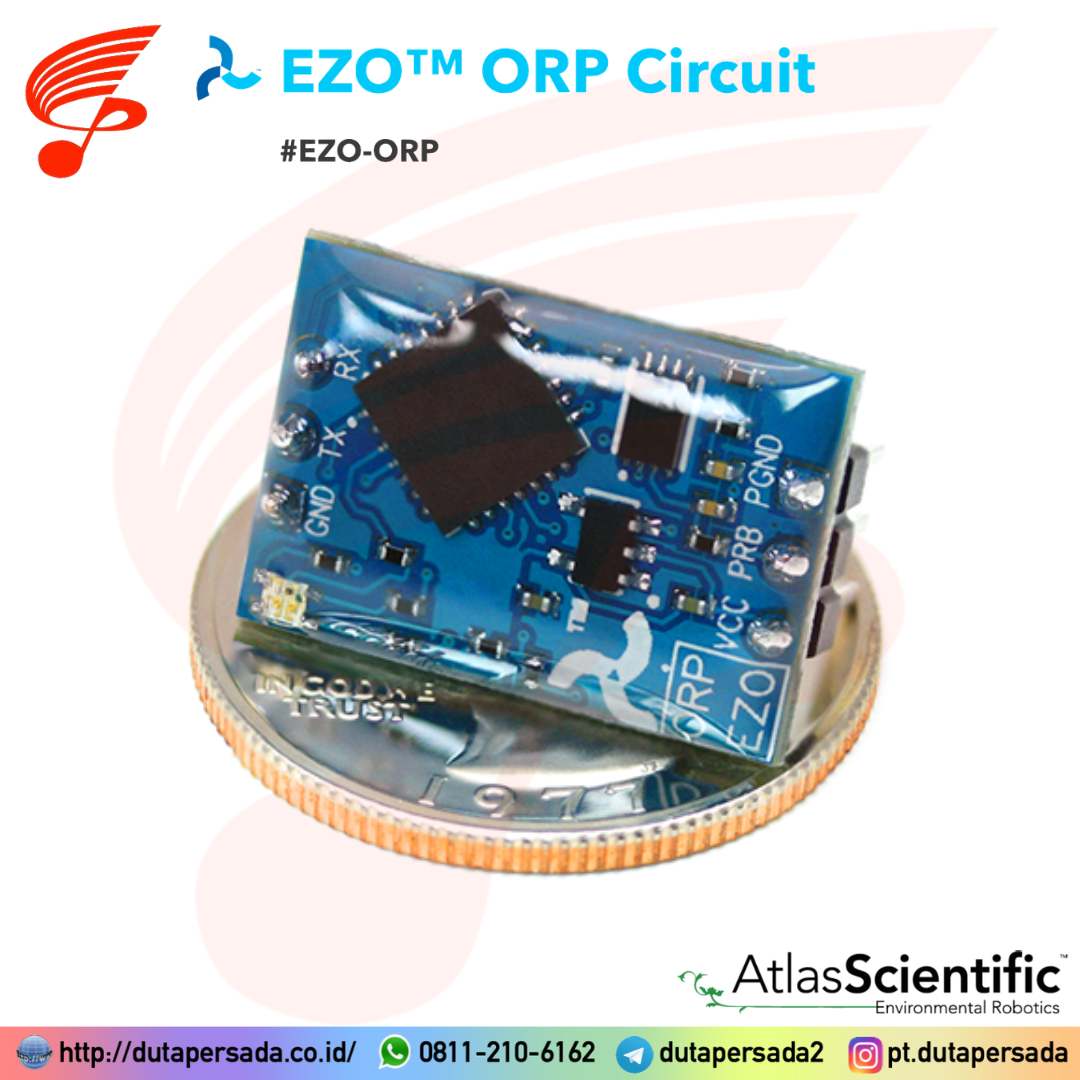

Atlas Scientific EZO ORP Circuit #EZO-pH
Availability:
Stok 1
From water sterilization to chemical production, the reasons for needing to know the ORP of water are many. Fortunately, Atlas Scientifics EZO-ORP circuit makes taking high accuracy ORP readings easy. From calibration to timed readings, the Atlas Scientific EZO-ORP circuit is a drop-in solution to a complex measurement.
Status Barang: Ready
Kondisi: Baru
Minimal Order: 1 pcs
OVERVIEW:
From water sterilization to chemical production, the reasons for needing to know the ORP of water are many. Fortunately, Atlas Scientifics EZO-ORP circuit makes taking high accuracy ORP readings easy. From calibration to timed readings, the Atlas Scientific EZO-ORP circuit is a drop-in solution to a complex measurement.
SPECIFICATION:
◆ Reads: ORP
◆ Range: -1020mV − 1020mV
◆ Accuracy: +/– 1mV
◆ Response time: 1 reading per sec
◆ Supported probes: Any type & brand
◆ Calibration: Single point
◆ Temp. compensation: N/A
◆ International standard: ISO 11271 compliant (determination of redox potential)
◆ Data protocol: UART & I2C
◆ Default I2C address: 98 (0x62)
◆ Operating voltage: 3.3V − 5V
◆ Data format: ASCII
◆ Circuit dimensions: 13.97mm x 20.16mm (0.55″ x 0.79″)
◆ Weight: 1.86 grams
EACH UNIT INCLUDES WITH:
◆ EZO ORP only
| Berat | 0,1 kg |
|---|
Based on 0 reviews
Be the first to review “Atlas Scientific EZO ORP Circuit #EZO-pH”
