Atlas Scientific 3/8″ Flow Meter #Sen-206F

Made in the USA

Part #Sen-206F

OVERVIEW:

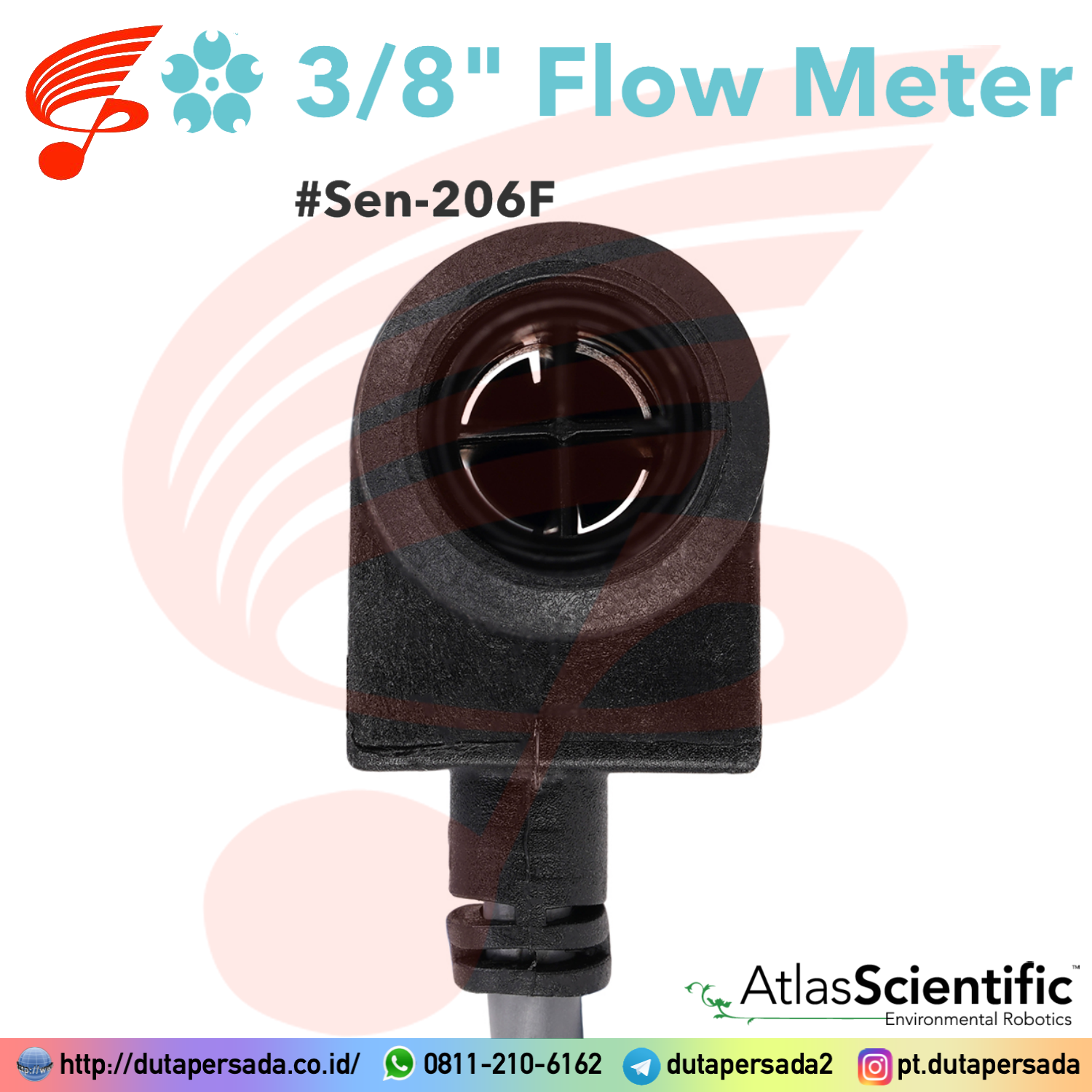

Our 3/8” male NPT turbine flow meters are compact, lightweight and allow for highly accurate and repeatable measurements during quick dispensing or metering cycles. This flow meter is intended for low flow ranges from 760 mL/min (0.2GPM) up to 7.6 L / min (4 GPM).

Every Atlas Scientific flow meter comes with our flow connector board, that allows the user to easily connect the flow meter to our EZO Embedded Flow Meter Totalizer.

SPECIFICATION:
◆ Reads: Total flow and flow rate
◆ Range: 760 ml/min – 7.6 L/min
◆ Accuracy: +/– 2%

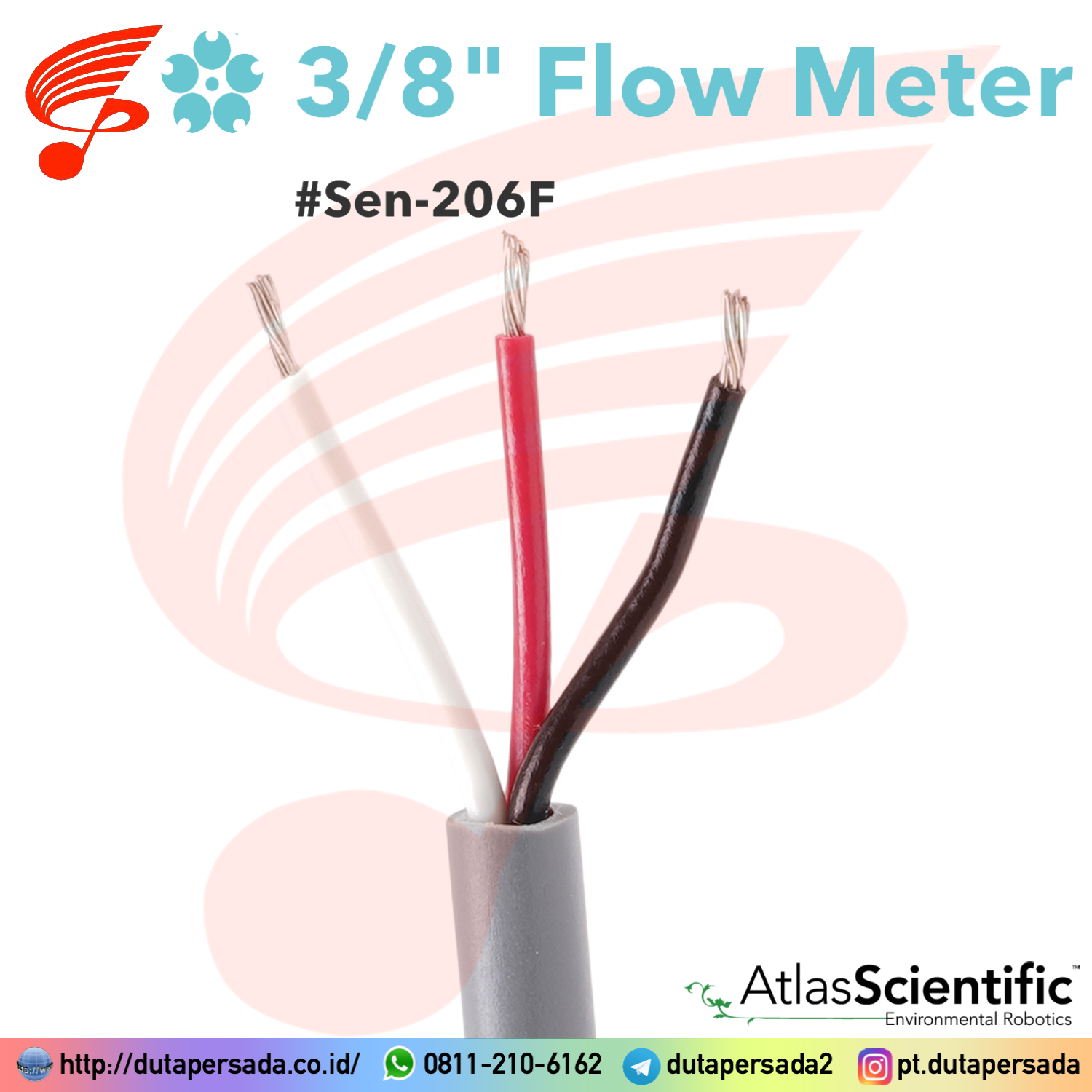

◆ Connector: Tinned leads
◆ Thread: 3/8” Male NPT
◆ Max pressure: 200 PSI
◆ Temperature range °C: -20 − 80 °C
◆ Max viscosity: 81 SSU
◆ Cable length: 86cm (33.8″)
◆ Voltage: 3.3V – 24 VDC
◆ Life expectancy: ~10 years

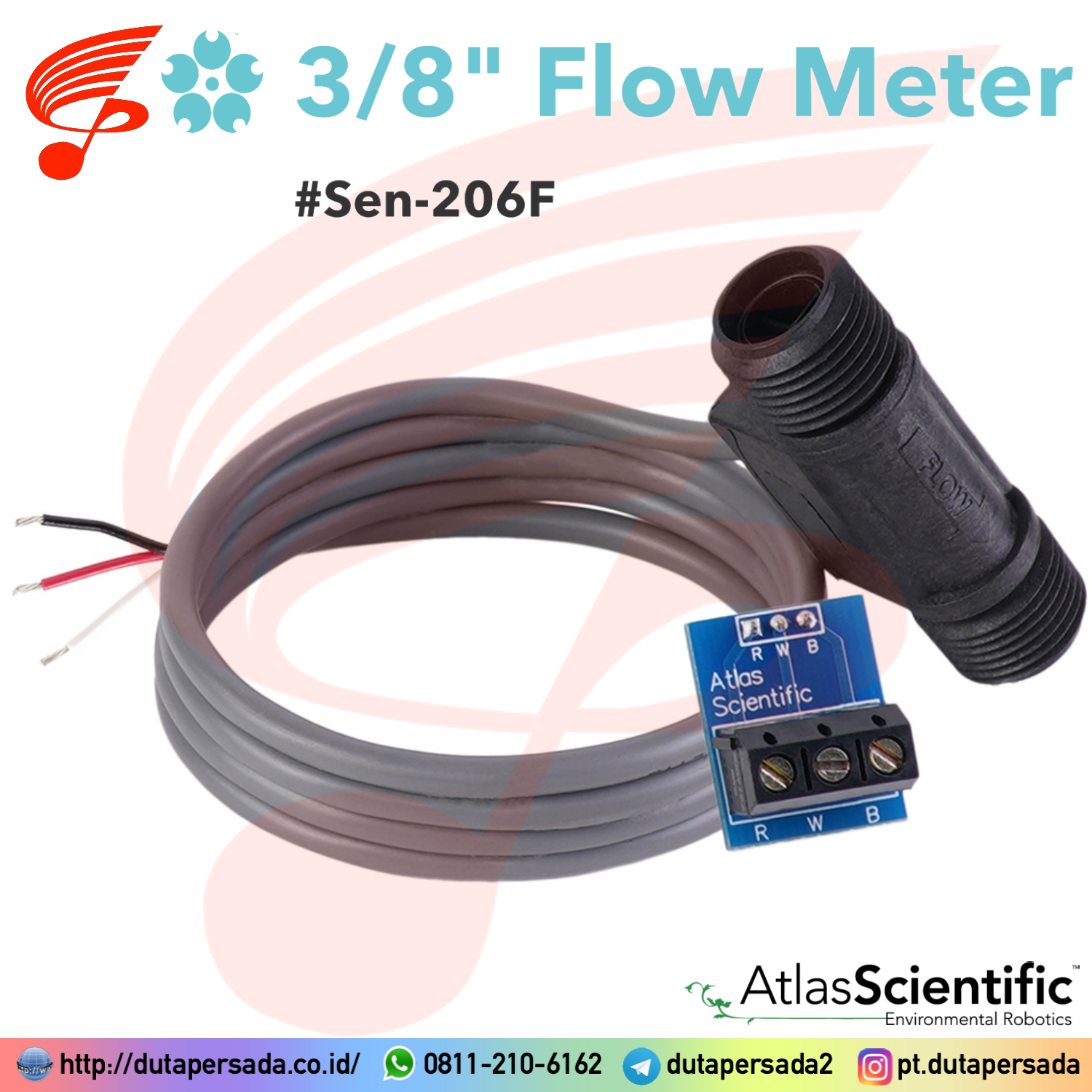

EACH UNIT INCLUDES WITH:
◆ 3/8″ Flow Meter
◆ Flow Connector Board
