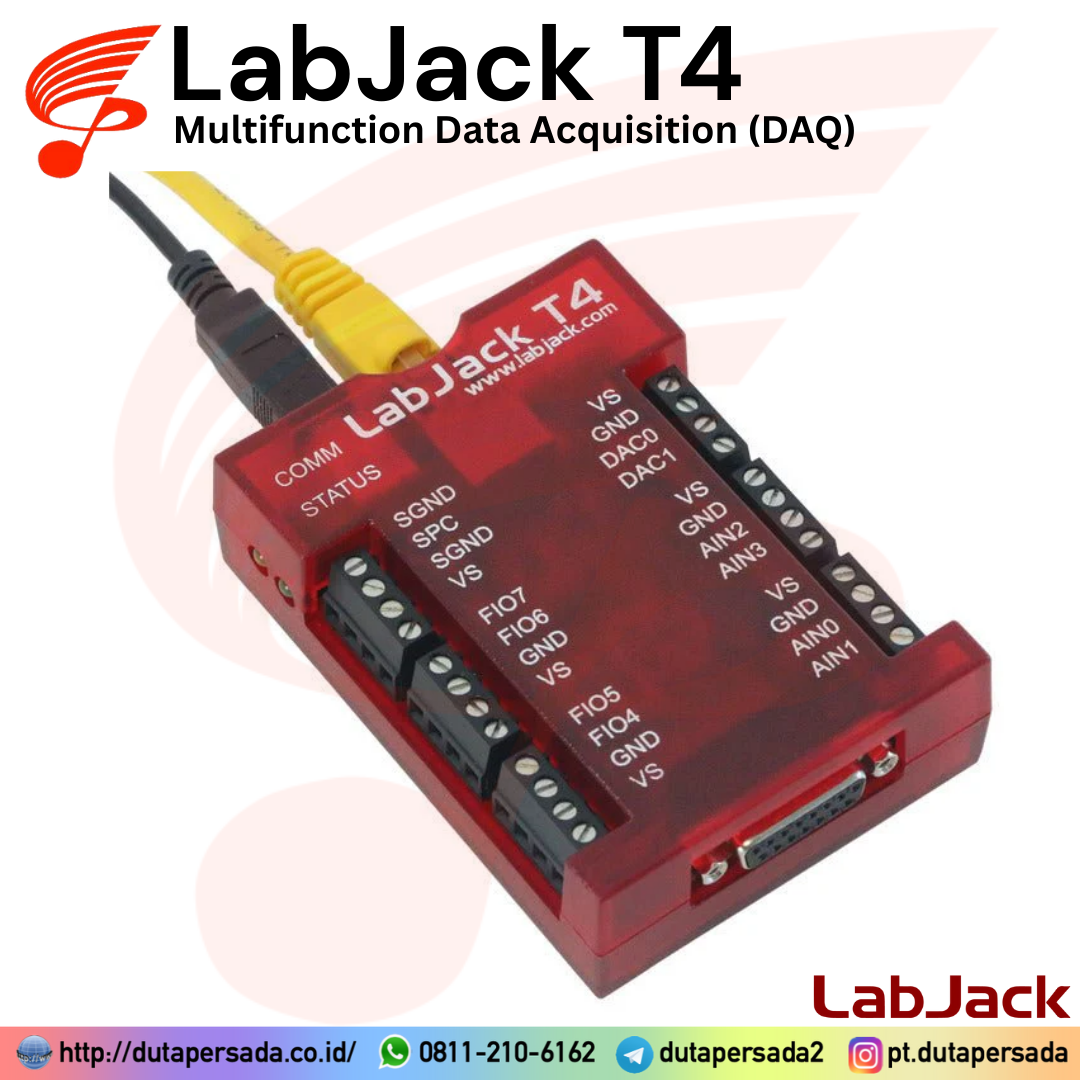

LabJack T4 – Multifunction Data Acquisition with Ethernet & USB
Availability:
Stok 4
Choose the T4 for low cost Ethernet connectivity and the same software API as our flagship T7 device. The T4 has 4 dedicated high voltage (±10V, 12-bit resolution) as well as up to 8 configurable low voltage analog inputs (0-2.5V, 12-bit resolution). The T4 also has numerous built-in firmware features to help users accomplish most data acquisition needs.
Status Barang: Ready
Kondisi: Baru
LabJack T4 is USB or Ethernet multifunction DAQ device with up to 12 analog inputs or 16 digital I/O, 2 analog outputs (10-bit), and multiple digital counters/timers.
OVERVIEW:
Choose the T4 series for low-cost Ethernet connectivity and the same software API as our flagship T7 series device. The T4 series devices have 4 dedicated high voltage (10V, 12-bit resolution) as well as up to 8 configurable low voltage analog inputs (0-2.5V, 12-bit resolution). The T4 series also has numerous built-in firmware features to help users accomplish most data acquisition needs.
The T4 series devices are our lowest cost devices with Ethernet connectivity. They are also capable of stand-alone operation by running Lua scripts.
KEY FEATURES:
◆ 4 dedicated high voltage (10V) analog inputs, 12-bits of accuracy
◆ 8 Flexible I/O lines (digital input, digital output, analog input)
◆ 8 Dedicated 3.3V digital I/O great for UART, SPI, I2C, 1-wire
◆ 2 Analog outputs (10-bit, 0-5 volts)
◆ Flexible I/O with range 0-2.5V, 12-bits accuracy
◆ Timers provide PWM output, quadrature input pulse/period timing, and pulse counting.
◆ Watchdog system
◆ Supports LJTick accessories for additional analog outputs, analog buffers
◆ Industrial range (-40° to +85°C)
◆ Serial protocols: SPI, I2C
◆ Up to 8 PWM, Quadrature, Pulse Width
◆ Same software API as the T7/T7-Pro
EACH UNIT INCLUDES WITH:
◆ T4
◆ USB cable
◆ Ethernet Cable
◆ USB 5V power supply
| Berat | 0,5 kg |
|---|

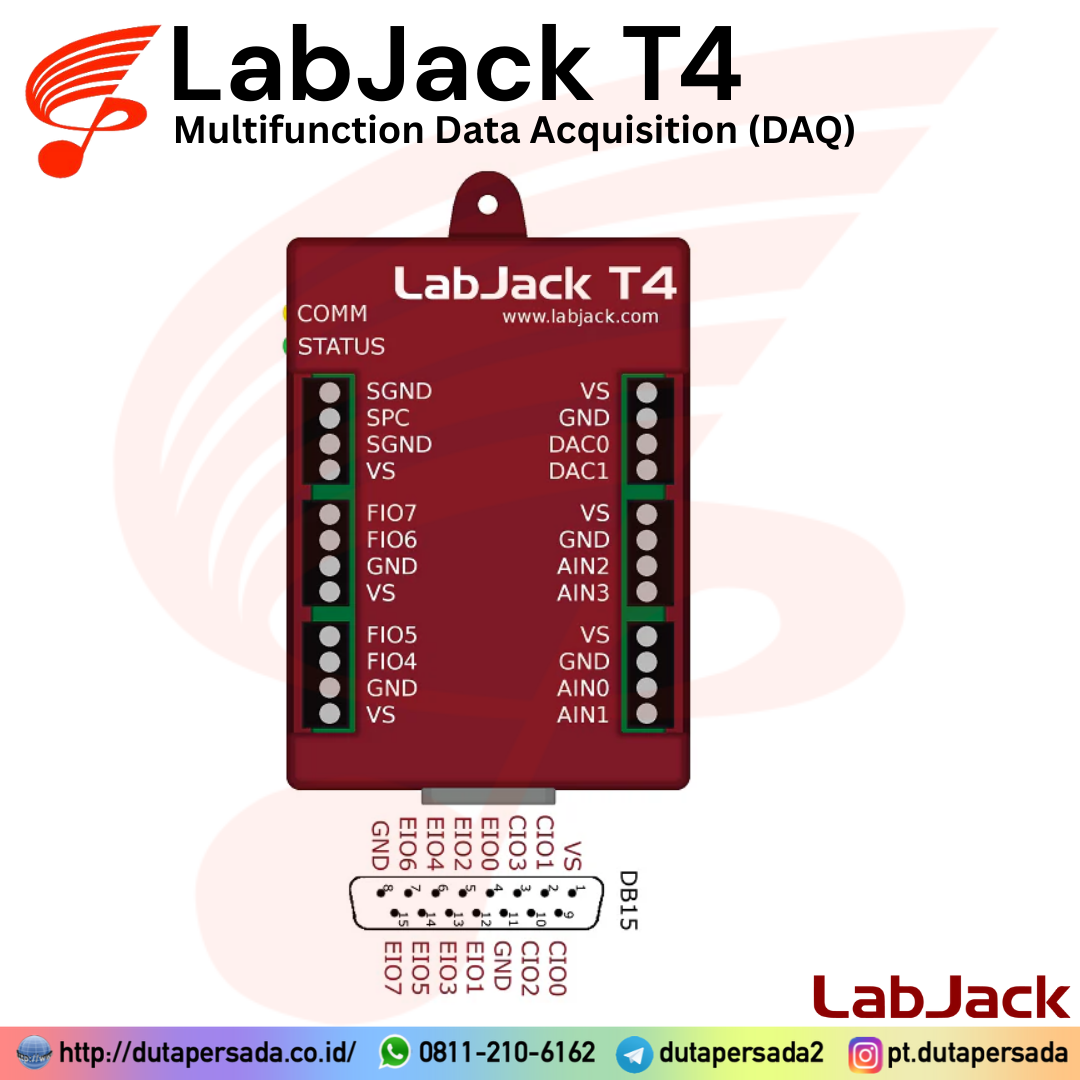

T4 Hardware Overview
High Voltage Analog Inputs
- 4 dedicated high voltage analog inputs (±10V, 12-bit resolution)
- Configurable resolution settings
Flexible I/O:
- 8 configurable low voltage analog inputs (0-2.5V, 12-bit resolution) that can function as digital I/O lines
Digital I/O:
- 8 dedicated digital I/O lines (EIO4-EIO7 and CIO0-CIO3)
Analog Outputs:
- 2 Analog Outputs (10-bit, 0-5 volts)
- Additional analog outputs are possible via the LJTick-DAC
