O2 Meter

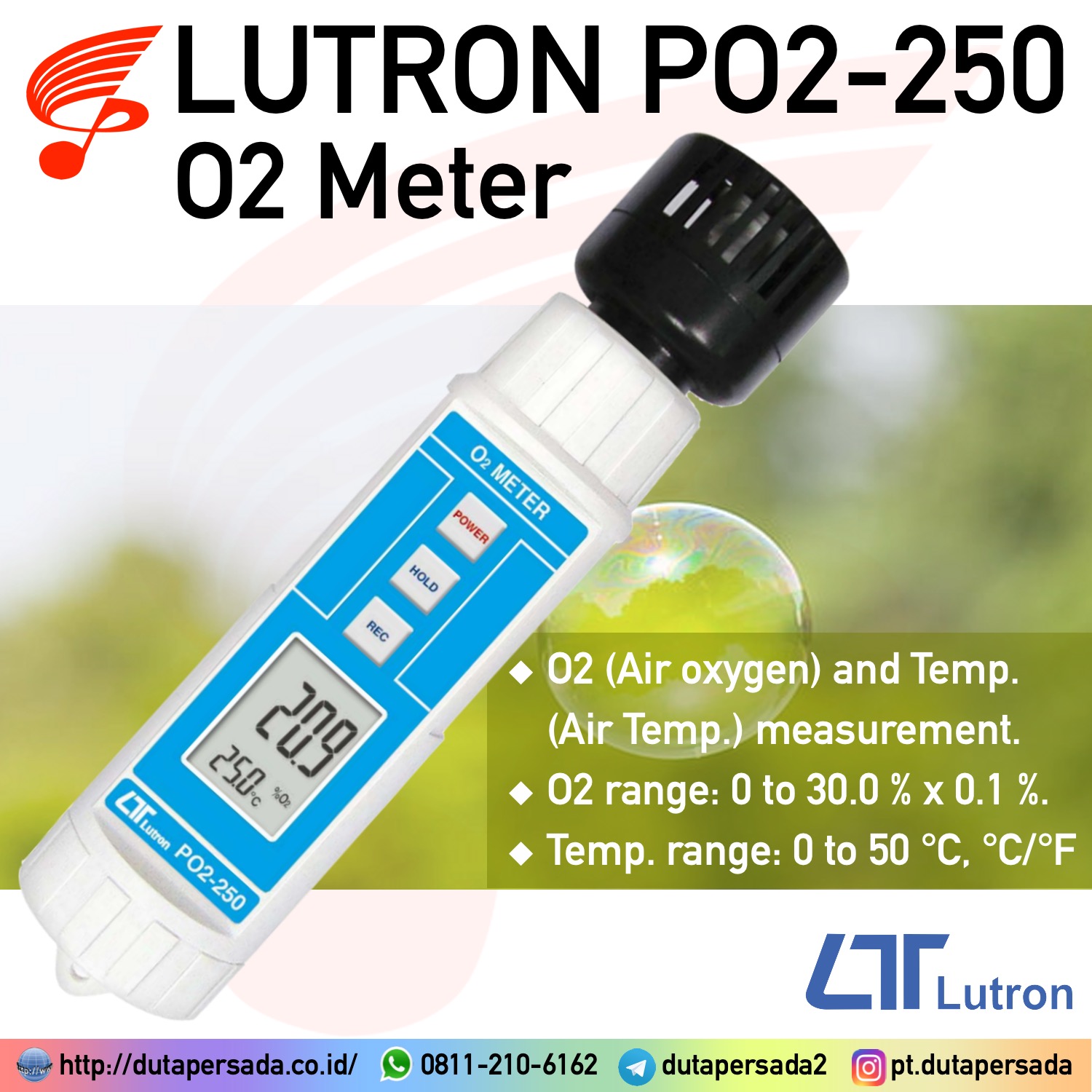

Lutron PO2-250 – Pen Oxygen / O2 Meter
Availability:
Stok 1
The PO2-250 Oxygen Meter provides accurate and reliable measurements of air oxygen and temperature, making it an essential tool for various industrial, environmental, and HVAC applications.
Status Barang: Ready
Kondisi: Baru
Minimal Order: 1 pcs
Rp3.455.000,0
Stok 1
O2 METER
Model: PO2-250
OVERVIEW:
The PO2-250 Oxygen Meter provides accurate and reliable measurements of air oxygen and temperature, making it an essential tool for various industrial, environmental, and HVAC applications.
FEATURES:
◆ O2 ( Air oxygen ) and Temp. ( Air Temp. ) measurement.
◆ O2 measurement range : 0 to 30.0 % x 0.1 %.
◆ Temp. measurement range : 0 to 50 , /.
◆ O2 Buzzer warning : If the measurement value < 18.0 %O2, the buzzer will sound for warning.
◆ Galvanic cell type for O2 sensor.
◆ High reliability Oxygen sensor, not be affected by acidic gases like CO2.
◆ Oxygen sensor with temperature compensated.
◆ Data hold, to freeze the desired reading value.
◆ Auto power off saves battery life.
◆ Operates from DC 1.5V ( UM4/AAA ) x 4 PCs batteries.
◆ Microprocessor circuit ensure high accuracy, and also and also provides special functions and features.
◆ Durable and compact ABS-plastic housing.
◆ Application : O2 monitor/dectors, Food industrial ( Refrigerator, Vegetable factory ), Bio-Technology ( Oxygen incubator, Anaerobic cultivator ), Security system ( Air conditioner and Oxygen shortage alarm system, Fire alarm system ), Fuel cell system.
EACH UNIT INCLUDES WITH:
◆ Instruction manual
◆ Soft carrying case
| Berat | 0,3 kg |
|---|
GENERAL SPECIFICATIONS
Display | LCD size : 28 mm x 19 mm. | |
Measurement | O2 ( Air oxygen ) Temperature ( Air Temp. ) | |
Sensor | Oxygen | Galvanic cell type |
Temperature | Thermistor | |
Circuit | Custom one-chip of microprocessor LSI circuit. | |
Data Hold | Freeze the display reading. | |
Sampling Time | Approx. 1 second. | |
Power off | Auto shut off saves battery life. | |
Operating Temperature | 0 to 50 °C. | |
Operating Humidity | Less than 80% R.H. | |
Power Supply | DC 1.5 V battery ( UM4/AAA ) x 4 PCs. | |
Power Current | Approx. DC 4.0 mA | |
Weight | 194 g/ 0.43 LB. |
Dimension | 180 x 40 x 40 mm (7.1″ x 1.6″ x 1.6″) |
Accessories Included | Instruction manual…………………….1…P..C Soft carrying case ( CA-52A )……….1…P..C…….. |
Application |
|
ELECTRICALSPECIFICATIONS (23±5°C)
O2 ( Air oxygen )
Range | 0 to 30 %O2. |
Resolution | 0.1 %O2. |
Accuracy | ± ( 1 % reading + 0.2 % O2 ). @ After calibration |
Response time | ≦ 15 seconds. @ t 90 |
Overload protection | 100 %O2. |
Environment pressure range | 0.9 to 1.1 atmosphere. |
Expected life time | ≧2 years. |
Alarm | If the measurement Air oxygen value < 18.0 %O2, the buzzer wll sound for warning. |
Temperature ( Air Temp. )
Range | 0 °C to 50 °C,32 °F to 122 °F. |
Resolution | 0.1 degree |
Accuracy | °C – ± 0.8 °C. °F-± 1.5°F. |
