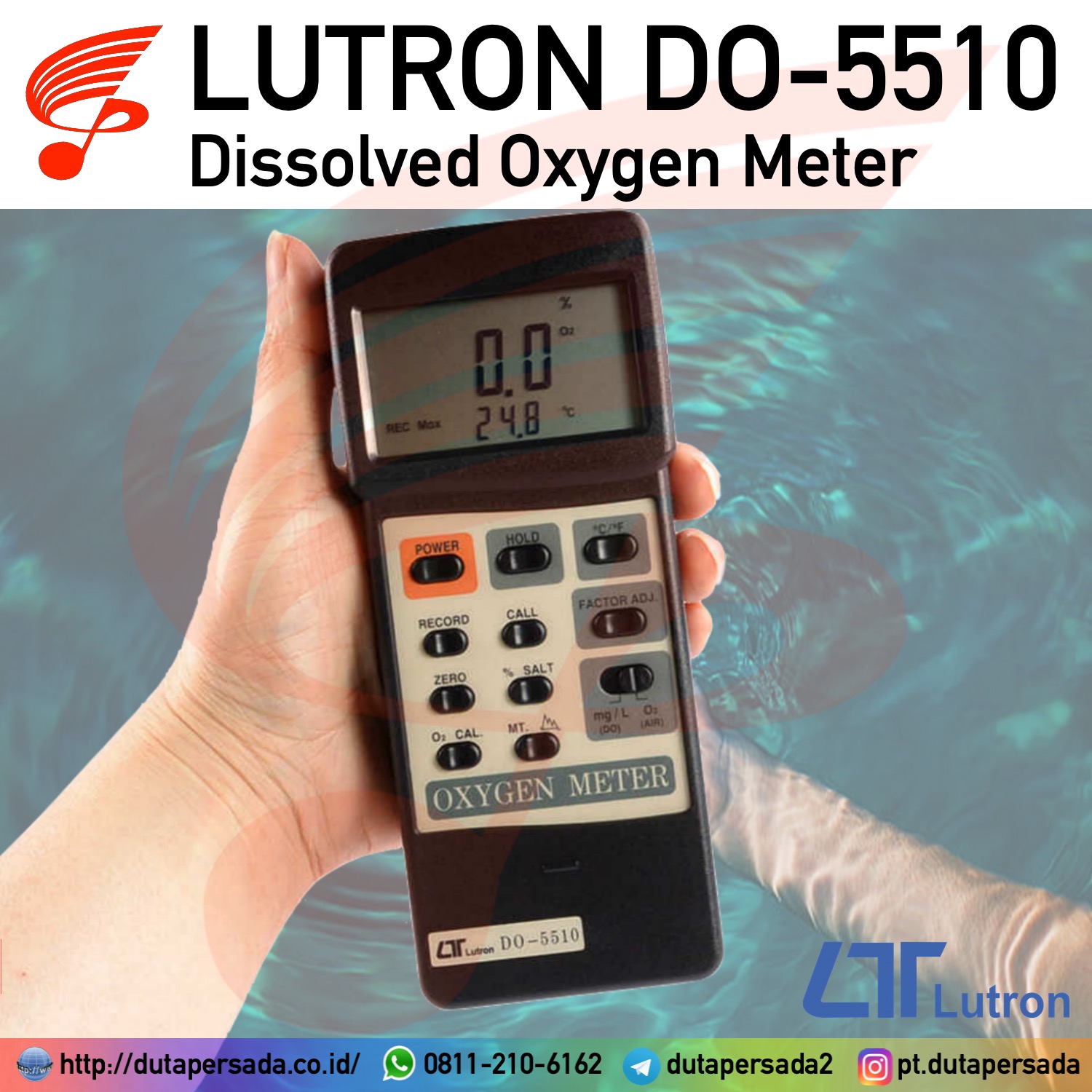

Lutron DO-5510 – Dissolved Oxygen Meter

FEATURES

* The polarographic type oxygen probe with an incorpo- rated Temp. sensor, high precision measurement for Dissolved

* Microprocessor circuit assures high accuracy and provides special functions and features.

* Multi-display, show oxygen & Temp. at the same time.

* Oxygen(DO), Oxygen in air(O2) & Temperature measurement.

* Records Maximum, Minimum and Average readings with RECALL, data hold.

* Heavy duty dissolved oxygen probe, probe head can connect with BOD bottle.

* Auto power off saves battery life. Powered by 006P DC 9V battery.

* Automatic Temp. compensation from 0 to 50 °C for sensor probe.

* RS 232 PC serial interface.

* Build in temperature , °F measurement.

* Buildin”%SALT”&”MountainHeight” compensation , adjust the factor by push the button on the front panel.

* Use the durable, long-lasting components, including a heavy duty & compact ABS-plastic housing case.

SPECIFICATIONS

Circuit

Custom one-chip of microprocessor LSI circuit.

Operating Temperature

0 to 50 °C(32 to 122 °F).

Display

Dual function meter’s display, 13 mm(0.5″). Super large LCD display with contrast adjustment for best viewing angle.

Operating Humidity

Max. 80% RH.

Sample Time

Approx. 0.4 sec.

Measurement & Range

Dissolved Oxygen

0 to 20.0 mg/L(liter).

Power Supply

006P DC 9V battery(Heavy duty type).

Oxygen in Air

0 to 100.0 %.

Power Current

Approx. DC 6.6 mA.

Temperature

0 to 50 °C.

Weight

335 g/0.74 LB (batteries & probe included)

Resolution

Dissolved Oxygen

0.1 mg/L.

Size

Main instrument:
180 x 72 x 32 mm(7.1 x 2.8 x1.3 inch).

Oxygen in Air

0.1 % O2 .

Temperature

0.1 .

Oxygen probe :
190 mm x 28 mm Dia. ( 7.5″ x 1.1″ Dia. )

Accuracy (23 5 )

Dissolved Oxygen

0.4 mg/L.

Oxygen in Air

0.7% O2.

Accessories included

Oxygen probe( OXPB-11 )………….1 PC. Carrying case…………………………. 1 PC. Operation manual…………………….1 PC. Spare Probe head with Diaphragm OXHD-04………………………………. 2 set Probe-filling Electrolyte OXEL-03……………………………….. 1 set

Temperature

0.8 °C /1.5 °F.

Sensor Structure

The polarographic type oxygen probe with an incorporated temperature sensor.

Probe Compensation & Adj.

Temperature

0 to 50 °C, Automatic

Salt

0 to 39 % Salt

Height(M. T.)

0 to 3900 meter

Optional Accessories

• *  Oxygen probe……………………… OXPB-11
• *  Spare Probe head with Diaphragm set

  …………………………………………OXHD-04

• *  Probe-filling Electrolyte………….. OXEL-03
• *  RS232 cable…………………………UPCB-01
• *  USB cable……………………………USB-01
• *  Data Acquisition software

  …………………………………..SW-U801-WIN
