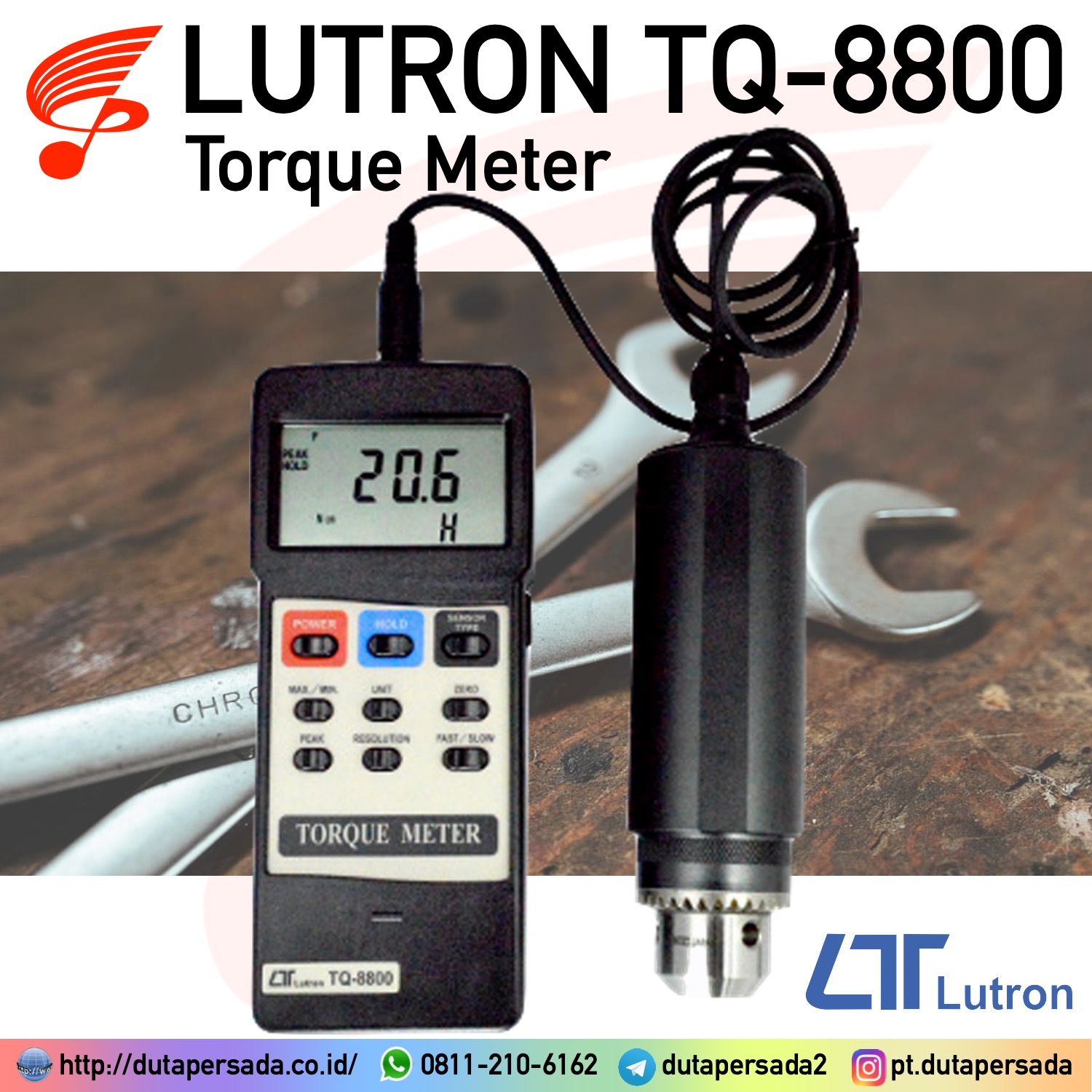

Lutron TQ-8800 – Torque Meter

GENERAL SPECIFICATIONS

Display

61 mm x 34 mm supper large LCD display.
15 mm ( 0.6″ ) digit size.

Operating humidity

Less than 80% RH.

Power supply

Alkaline or heavy duty type DC 9V battery, 006P, MN1604 (PP3) or equivalent.

Measurement

Torque value, peak hold, data hold, Max. & min. value.

Display unit

Kg-cm/LB-inch/Newton-cm.

Power consumption

Approx. DC 20 mA.

Sensor

Exclusive torque sensor.

Weight

Meter

230 g ( 0.50 LB ).

Circuit

Exclusive microcomputer circuit.

Probe

600 g ( 1.32 LB )

Dimension

Meter :
180 x 72 x 32 mm
( 7.1 x 2.8 x1.3 inch ).

Data hold

Freeze the desired reading.

Peak hold

To hold the peak value.

Memory

Maximum & Minimum value.

Torque probe:
Round 48 mm Dia. x 160 mm.

Power off

Auto shut off, saves battery life, or manual off by push button.

Accessories included

Instruction manual……….. 1 PC. 15 Kg torque probe……….. 1 PC. Carrying Case……………… 1 PC.

Sampling time

Fast/Slow select.

Data output

RS 232 serial output.

Sensor type button

To confirm the sensor type exactly.

Optional accessories

* Software ( Windows version, data record & data
acquisition )……SW-U801-WIN

* RS232 cable……UPCB-01

Operating temperature

0°C to 50°C ( 32°F to 122°F ).

DISPLAY UNIT/RESOLUTION

Unit

Max. range

High resolution

High resolution

Kg-cm

15 Kg-cm

0.01 Kg-cm

0.1 Kg-cm

LB-inch

12.99 LB-inch

0.01 LB-inch

0.1 LB-inch

Newton-cm

147.1 Newton-cm

0.1 Newton-cm

1 Newton-cm
