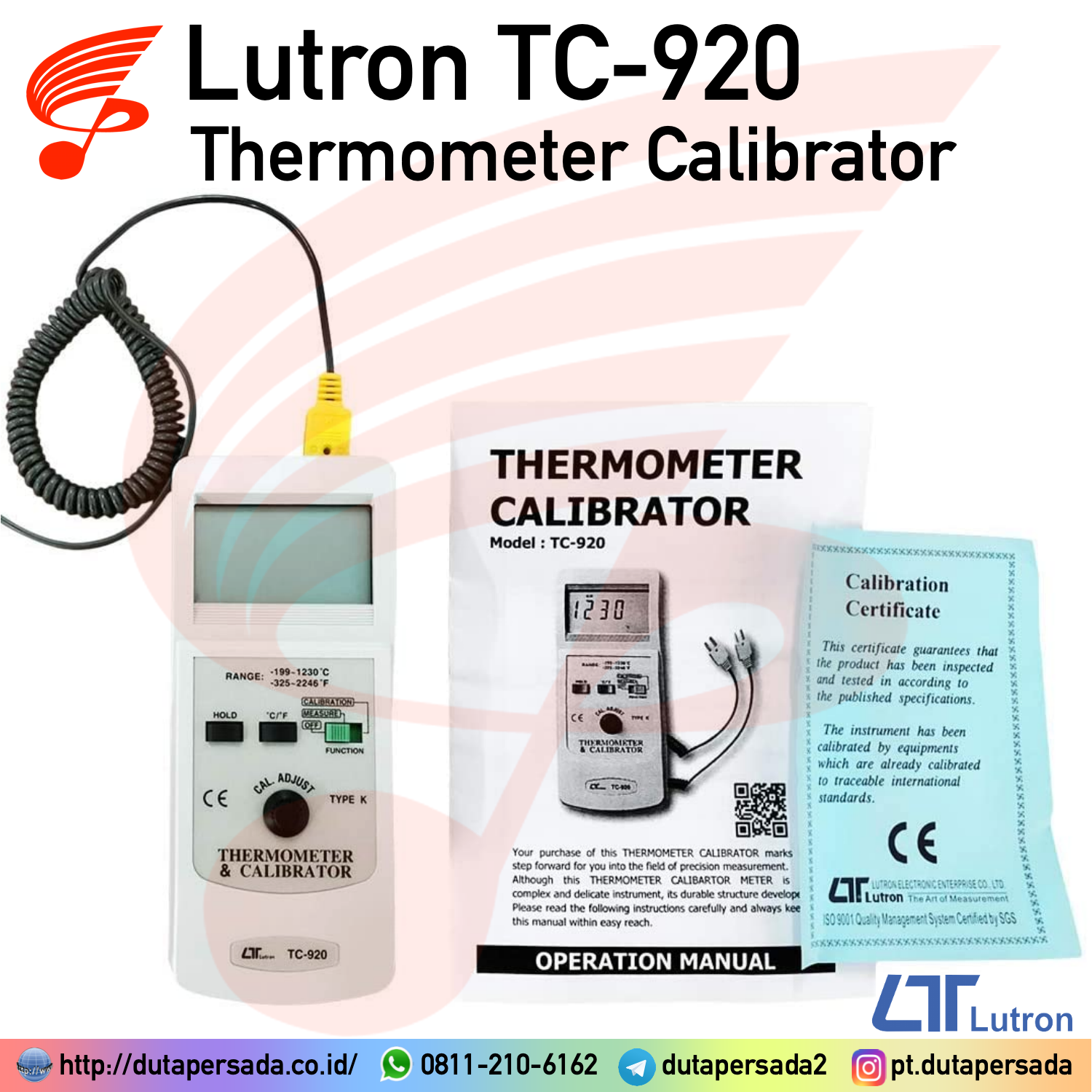

Lutron TC-920 – Thermometer Calibrator
Stok 5
The TC-920 Thermometer Calibrator provides accurate and reliable calibration for type K thermometers, making it an essential tool for industrial applications.
Status Barang: Preorder (8 minggu)
Kondisi: Baru
Minimal Order: 1 pcs
Rp2.515.000,0
Stok 5
THERMOMETER CALIBRATOR
Model: TC-920
OVERVIEW:
The TC-920 Thermometer Calibrator provides accurate and reliable calibration for type K thermometers, making it an essential tool for industrial applications.
FEATURES:
◆ 2 in 1, one meter included “type k thermometer” & “type k thermocouple calibrator”
◆ Precision calibrator for type k thermometer, calibrating process devices and measuring process signals
◆ Wide range : -199° to 1230°C (-325° to 2246°F)
◆ Microprocessor circuit assures high accuracy and provides special functions and features
◆ Build in temperature linearity compensation circuit, high precision
◆ °C / °F select & data hold function for the temperature
◆ °C / °F select by the front button for the temperature calibrator
◆ Thermocouple sensor for Temp. measurement, fast response time
◆ RS 232 PC serial computer interface
◆ Temp. measuring input to meet any standard type K (NiCr-NiAl) probe
◆ Fitted with standard type K input measuring socket
SPECIFICATION:
◆ Type K thermocouple calibrator
◆ Type K thermocouple thermometer
◆ -199°C to 1230°C, -325°F to 2246°F
◆ Resolution : 0.1 °C (1,000 °C)
◆ °C / °F, Data hold
EACH UNIT INCLUDES WITH:
◆ Instruction Manual
◆ Dual type K plug cable, DUK-02
OPTIONAL ACCESSORIES:
◆ Temperature probe TP-01, TP-02A, TP-03, TP-04
◆ Software, SW-U801-WIN
◆ RS232 cable, UPCB-01
◆ USB cable, USB-01
| Berat | 0,5 kg |
|---|
GENERAL SPECIFICATIONS
|
Circuit |
Custom one-chip of microprocessor LSI with thermocouple linearity correction circuit. |
|
|
Display |
14.8 mm (0.58″) digit size. Super large LCD display with annunciator. |
|
|
Function |
2 in 1 : |
|
|
Range |
Measure : |
|
|
Calibrator |
||
|
Polarity |
‘ – ‘ indicates negative polarity. |
|
|
Thermometer |
Sensor Type |
Thermocouple K ( NiCr-NiAl ). |
|
Input Impedance |
10 Mega ohm. |
|
|
Sampling |
Approx. 1 second. |
|
|
Data Output |
RS 232 PC serial computer interface. |
|
|
Over input indication |
Indication of ” “. |
|
|
Operating Temperature |
0 °C to 50 °C ( 32 °F to 122 °F ). |
|
Operating Humidity |
Less than 80% RH. |
|
Power Supply |
006P DC 9V, MN1604/PP3 battery or equivalent. |
|
Power Current |
Approx. DC 9 mA. |
|
Weight |
280 g/0.62 LB ( included battery ). |
|
Size |
185 x 78 x 38 mm ( 7.3 x 3.0 x 1.5 inch ). |
|
Accessories Included |
Instruction Manual ………………………. 1 PC. Dual type k plug cable, DUK-02…….1 PC. |
|
Optional Accessories ( Please ref. page 9 ) |
|
ELECTRICAL SPECIFICATIONS (23± 5 °C)
Type K thermocouple Calibrator
|
Calibrator Range Resolution Accuracy |
|||
|
°C |
-199.9 °C to -100.1 °C |
0.1 °C ± (1 % + 1 °C) |
|
|
-100.0 °C to 999.9 °C |
0.1 °C |
± (0.5 % + 1 °C) |
|
|
1000 °C to 1230 °C |
1°C |
||
|
°F |
-327 °F to -200 °F |
1°F |
± (1 % + 2 °F) |
|
-199.9 °F to -148.1 °F |
0.1 °F |
||
|
-148.0 °F to 999.9 °F |
0.1 °F |
± (0.5 % + 2 °F) |
|
|
1000 °F to 2246 °F |
1°F |
||
Thermometer, measure
|
Thermometer Range Resolution Accuracy |
|||
|
°C |
-199.9 °C to -100.1 °C |
0.1 °C ± (1 % + 1 °C) |
|
|
-100.0 °C to 999.9 °C |
0.1 °C |
± (0.5 % + 1 °C) |
|
|
1000 °C to 1230 °C |
1°C |
||
|
°F |
-327 °F to -200 °F |
1°F |
± (1 % + 2 °F) |
|
-199.9 °F to -148.1 °F |
0.1 °F |
||
|
-148.0 °F to 999.9 °F |
0.1 °F |
± (0.5 % + 2 °F) |
|
|
1000 °F to 2246 °F |
1°F |
||
|
The accuracy specification of thermometer applies only to the instrument itself and allowance must be made for limits of error permitted in thermocouple. |
|||
