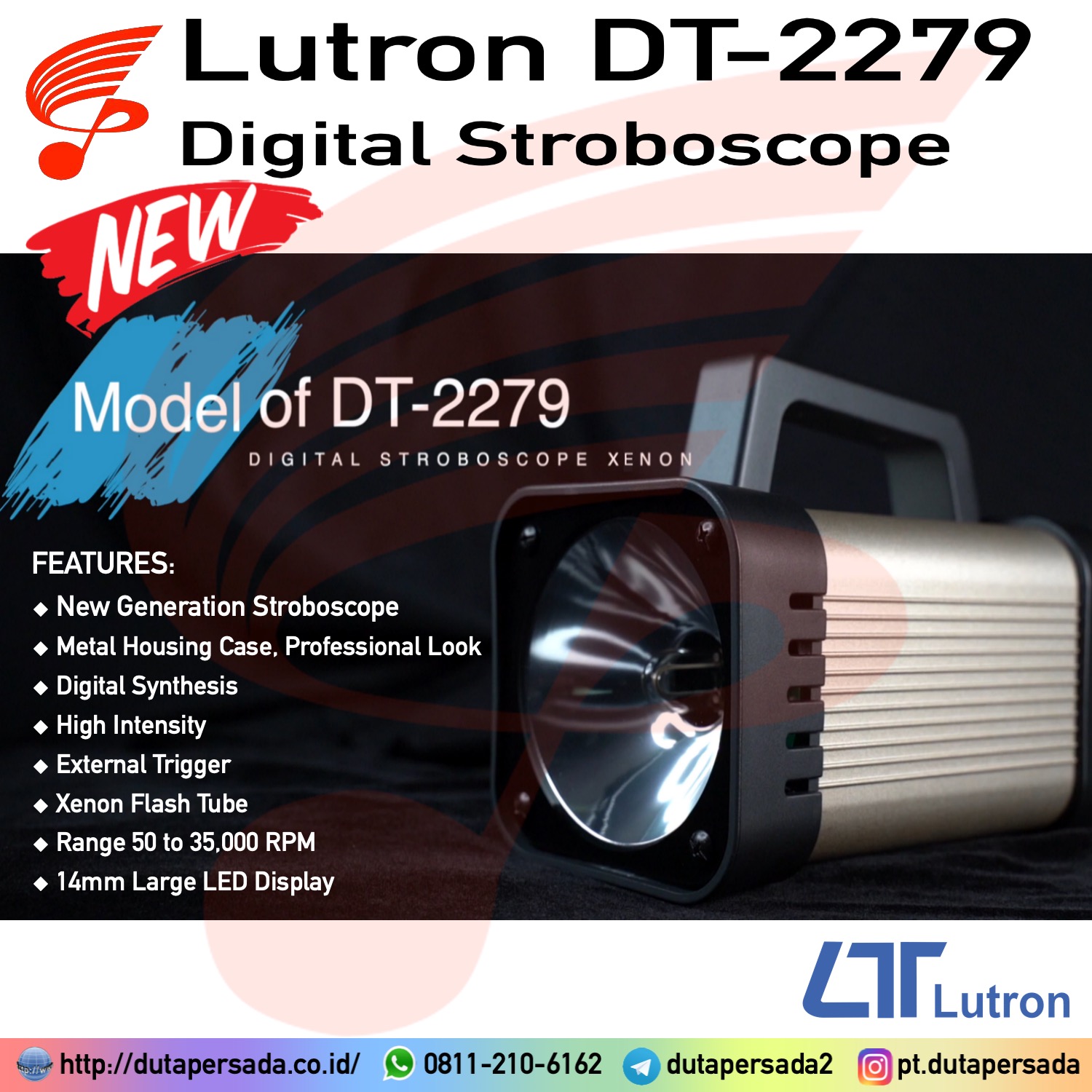

Lutron DT-2279 – Digital Stroboscope Xenon
Stok 2
The DT-2279 Digital Stroboscope provides accurate and reliable stroboscopic measurements and external triggering capabilities, making it an essential tool for various industrial applications.
Status Barang: Ready
Kondisi: Baru
Minimal Order: 1 pcs
Rp4.172.000,0
Stok 2
DIGITAL STROBOSCOPE XENON
Model: DT-2279
OVERVIEW:
The DT-2279 Digital Stroboscope provides accurate and reliable stroboscopic measurements and external triggering capabilities, making it an essential tool for various industrial applications.
FEATURES:
◆ High Intensity Light: Utilizes a Xenon flash tube for high-intensity light, ensuring clear and precise measurements.
◆ Wide Frequency Range: Offers a flash adjustment range from 0.833 to 583.3 Hz, with a measurement range of 50 to 35,000 RPM (FPM).
◆ External Triggering: Features an external trigger signal input for simultaneous testing and measurement, providing flexibility for various applications.
◆ Digital Synthesis Circuit: Ensures high stability and easy adjustment with a digital synthesis circuit.
◆ User-Friendly Interface: Equipped with a large red LED display, digital rotary adjustment, and various function buttons for easy operation
◆ Metal Housing Case: Durable and long-lasting, designed for professional use.
◆ Digital Rotary Adjustment: Easy for making fine adjustments to the desired RPM.
◆ Phase Shift and Delay Time Functions: E
SPECIFICATION:
◆ Display:
◆ 14 mm large red LED
◆ 5 digits with display unit
◆ Measurement Range:
◆ Flash Adjust: 0.833 to 583.3 Hz
◆ RPM: 50 to 35,000 RPM
◆ FPM: 50 to 35,000 FPM
◆ Resolution:
◆ 0.001 Hz for ➤ 0.01 Hz for 600.0 to 5999 RPM
◆ 0.1 Hz for ≥6000 RPM
◆ 0.1 RPM for ➤ 1 RPM for 1,000 to 9,999 RPM
◆ 10 RPM for ≥10,000 RPM
◆ Accuracy: ±(0.05% reading + 2 digits)
◆ Functions:
◆ Phase Shift: 0 to 359° with 1° resolution
◆ Delay Time: 0 to 1200 mSec from 50 to 10,000 RPM
◆ External Trigger Signal Input:
◆ H Level: 2.5V to 12V
◆ L Level: 0.8V max
◆ Sync Output Signal: 12V level, 100µs square wave
EACH UNIT INCLUDES WITH:
◆ Operation manual
◆ Power cord
◆ Round Metal Connector (SKT-B2279)
| Berat | 2 kg |
|---|
GENERAL SPECIFICATION
|
Display |
14 mm LED. |
|
Flash light |
Xenon flash tube . |
|
Flash adjust range |
50 to 35,000 RPM/FPM. |
|
Function buttons |
Digital rotate knob, MODEL, int/Ext. Select , x 2 button, ÷ 2 buttons ,+ button, – button, |
|
Sync output signal |
12 v level 100μs Square wave |
|
External signal trigger |
HLevel:2,5V~12V,LLevel:0.8VMAX. >50μs |
|
Measurement |
1.Stroboscope : (RPM ) *Delay Time 0 to 1200 mSec. (50 – 10000 RPM). |
|
Operating Humidity |
Max. 80% RH. |
|
Operating Temperature |
0 to 50 °C ( 32 to 122 °F ) |
|
Over Input Display |
Indication of “- – – – ” |
|
Power Supply |
AC 110V or AC 220V/230V |
|
Weight |
1200g/2.64 LB (Meter only) |
|
Dimension |
HWD 255 x 110 x 150 mm (10 x 4.3 x 5.9 inch). |
|
Time base |
Quartz crystal. |
|
Circuit |
Exclusive one-chip of microcomputer LSI circuit. |
|
Accessories Included |
Operation manual……………………………………… 1 PC. |
ELECTRICAL SPECIFICATION ( 23 ±5 °C )
Stroboscope Tachometer
|
Flash adjust range |
50 to 35,000 RPM/FPM. * RPM : round per minute. * FPM : flash per minute. |
|
|
Resolution |
0.1 RPM : |
10 RPM : |
|
1 RPM : |
||
|
Function buttons |
Digital rotate knob, MODEL, int/Ext. Select , x 2 button, ÷ 2 button, |
|
|
Accuracy |
±(0.05 % reading + 2d) |
|
Stroboscope Frequency
|
Flash adjust range |
0.833 to 583.3 Hz. * 50 to 35,000 RPM/FPM. |
|
|
Resolution |
0.001 Hz : |
0.1 Hz : |
|
0.01 Hz : 600.0-5999 RPM |
||
|
Function buttons |
Digital rotate knob, MODEL, int/Ext. Select , x 2 button, ÷ 2 button, |
|
|
Accuracy |
±(0.05 % reading + 2d) |
|
Stroboscope External Trigger :Phase Shift
|
External Trigger |
0 to 359°. |
|
Phase Shift |
* Use range : 50 to 10000RPM. * “° ” :degrees. |
|
Resolution |
1° |
|
Function buttons |
Digital rotate knob, MODEL, int/Ext. Select , |
|
Accuracy |
±(0.1 % reading + 2d) |
|
Signal input |
HLevel:2,5V~12V,LLevel:0.8VMAX. >50μs |
Stroboscope External Trigger :Delay Time
|
Flash adjust |
0 to 1200 mSec.. |
|
|
range |
*Use range : 50 to 10000RPM. * mSec : mini secend. |
|
|
Resolution |
0.1 RPM : |
10 RPM : |
|
1 RPM : |
||
|
Function buttons |
Digital rotate knob, MODEL, int/Ext. Select , |
|
|
Accuracy |
±(0.1 % reading + 2d) |
|
|
Signal input |
HLevel:2,5V~12V,LLevel:0.8VMAX. >50μs |
|
