Strain Gages
Kyowa KFG-10-120-D17-11 L3M2S – General-purpose Foil Strain Gages
Availability:
Stok 5
The Kyowa KFG‑10‑120‑D17‑11 L3M2S is a foil strain gage from the KFG series, designed for precise stress and strain measurement. With a 10 mm gage length and D17 grid pattern, it is suitable for analyzing complex stress distributions in structural and mechanical components.
Status Barang: Ready
Kondisi: Baru
The Kyowa KFG‑10‑120‑D17‑11 L3M2S is a foil strain gage from the KFG series, designed for precise stress and strain measurement. With a 10 mm gage length and D17 grid pattern, it is suitable for analyzing complex stress distributions in structural and mechanical components.
KEY FEATURES:
◆ Series: KFG (Foil Strain Gage)
◆ Gage Length: 10 mm
◆ Resistance: 120 Ω

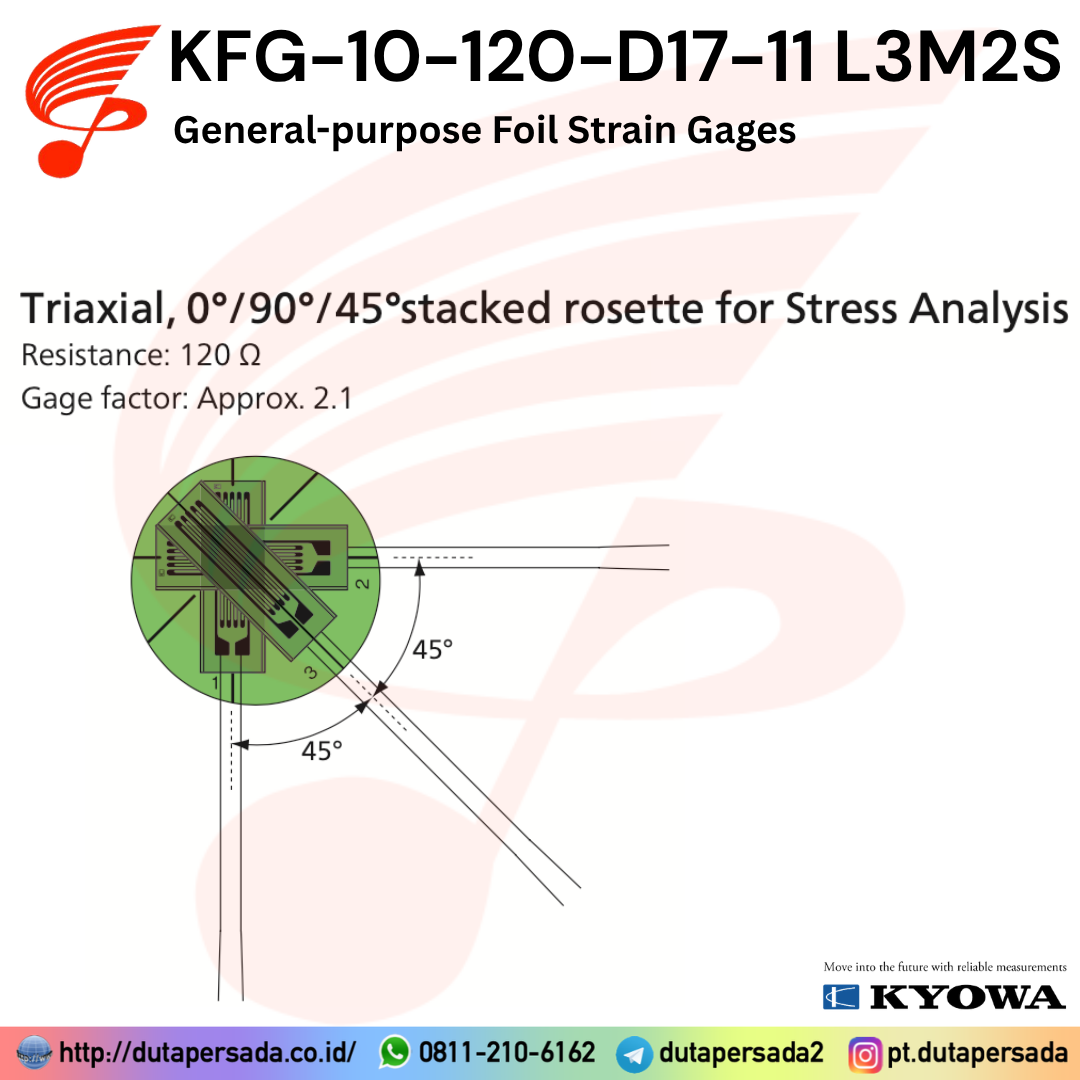

◆ Pattern Type: D17 – stacked rosette, 45° × 3 grid for multi‑directional stress analysis
◆ Leadwire: Pre‑attached, 11 mm length, 2‑wire configuration (L3M2S)
◆ Temperature Compensation: Optimized for steel materials
◆ Performance: High accuracy, stable strain transfer, and long‑term reliability
Applications:
◆ Multi‑axis stress analysis in mechanical parts
◆ Structural monitoring in civil engineering
◆ Aerospace and automotive component testing
◆ Laboratory and field installations requiring rosette-type strain gages
EACH UNIT INCLUDES WITH:
◆ KFG‑10‑120‑D17‑11 L3M2S 1pc
| Berat | 0,2 kg |
|---|
