Strain Gages

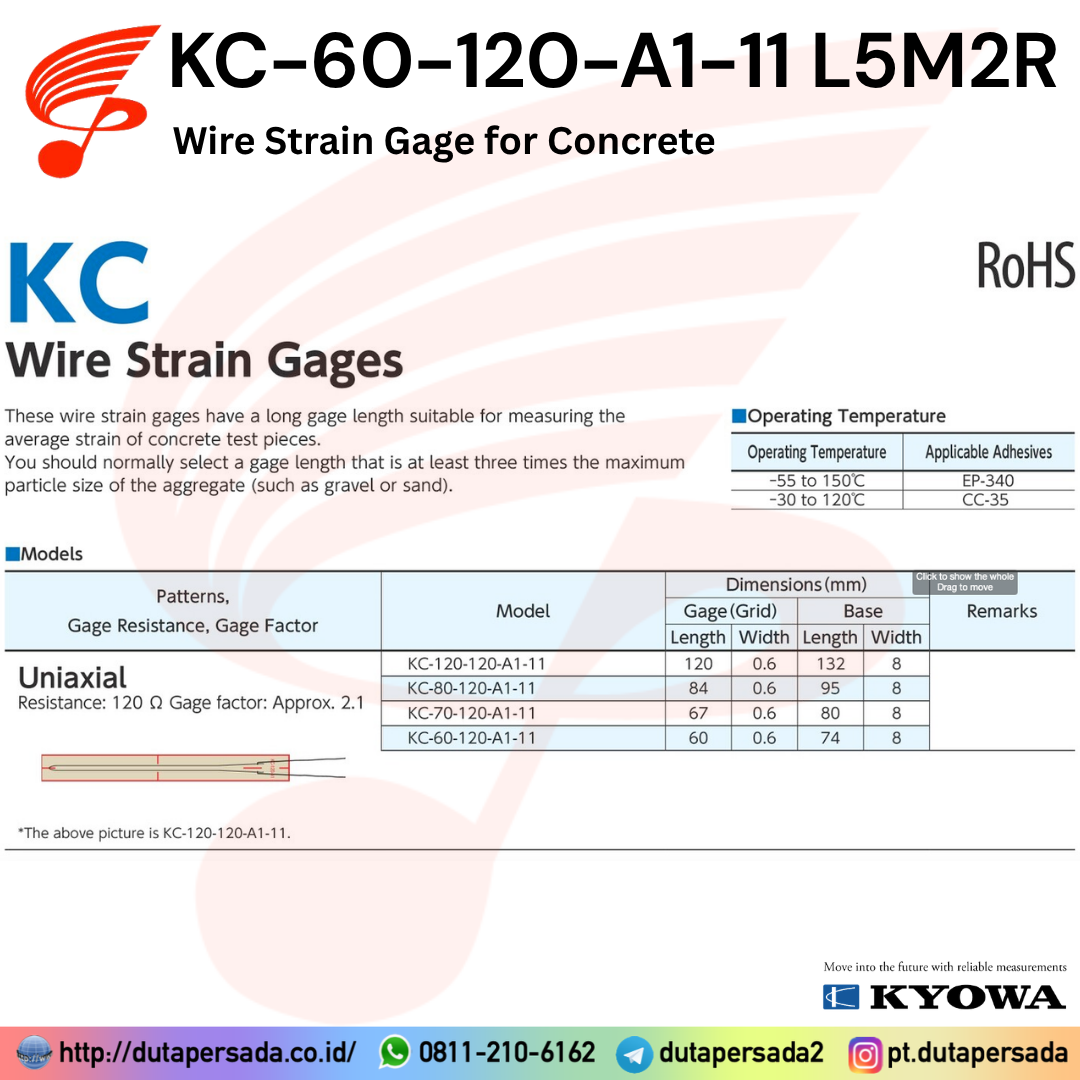

Kyowa KC-60-120-A1-11 L5M2R – Wire Strain Gage for Concrete
Availability:
Stok 5
The Kyowa KC-60-120-A1-11 L5M2R is a precision strain gage designed for stress and strain measurement in engineering applications. It belongs to the KC series, which is widely used for structural monitoring and mechanical testing due to its high accuracy and stable performance.
Status Barang: Ready
Kondisi: Baru
Minimal Order: 1 pcs
KC-60-120-A1-11 suffixes L5M2R for the gage with a 5 m long vinyl-coated flat 2-wire cable
Summary
Featuring a longer gage length, the KC series gages are wire strain gages suitable for mean strain measurement of concrete under test. Usually, a model with the gage length over 3 times longer than the maximum diameter of the aggregate is selected for the purpose.
Major Properties
◆ Materials Resistive element: CuNi alloy wire
◆ Materials Base: Paper base + phenol-epoxy
◆ Operating temperature in combination with major adhesives after curing (°C): PC-12B: -196 to 150ºC
CC-35: -30 to 120ºC
◆ Operating temperature in combination with major leadwire cables (°C): Vinyl-coated flat cable(L-6, L-7): -10 to 80ºC
◆ Self-temperature-compensation (°C): 10 to 60ºC
◆ Applicable linear expansion coefficients (×10-6/℃): 11.0
◆ Strain limits at normal temp. (approx. %): 1.8
◆ Fatigue lives at normal temp. (times): 1.5×106 (±1500μm/m)
Applicable Adhesives and Operating Temperature Range after Curing
CC-35: -30 to 120°C
EACH UNIT INCLUDES WITH:
◆ KC-60-120-A1-11 L5M2R 1pc
| Berat | 0,2 kg |
|---|
