Seaward PrimeTest 100 – Portable Appliance Tester (PAT Tester)
Stok 3

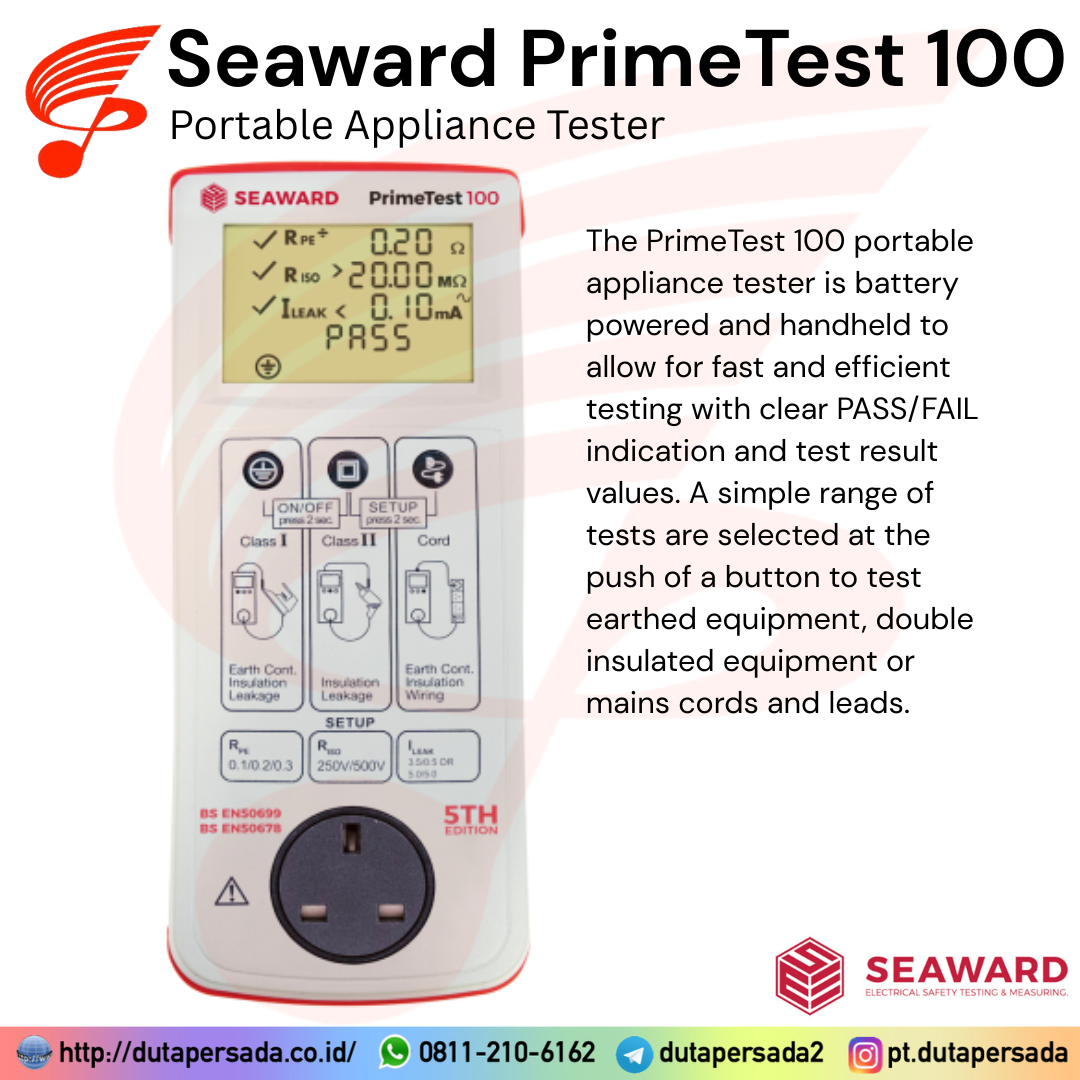

The PrimeTest 100 portable appliance tester is battery powered and handheld to allow for fast and efficient testing with clear PASS/FAIL indication and test result values. A simple range of tests are selected at the push of a button to test earthed equipment, double insulated equipment or mains cords and leads.
Status Barang: Preorder (6 Minggu)
Kondisi: Baru
Minimal Order: 1 pcs
Seaward PrimeTest 100
Portable Appliance Tester
Part Number: 344A910
OVERVIEW:
The PrimeTest 100 portable appliance tester is battery powered and handheld to allow for fast and efficient testing with clear PASS/FAIL indication and test result values. A simple range of tests are selected at the push of a button to test earthed equipment, double insulated equipment or mains cords and leads.
FEATURES:
◆ Simple to use push button operation
◆ Easy-to-read LCD display – shows simple pass/fail indication
◆ Accurate and reliable earth continuity testing
◆ BSEN50699 and IET CoP 5th Edition compliant
◆ Compatible with free PATMobile app – enables you to log results, export your data, tag photos and print results*
◆ Selectable 250V/500V Insulation test
◆ Long lead test
◆ User selectable earth continuity limits
◆ Class II FE Test

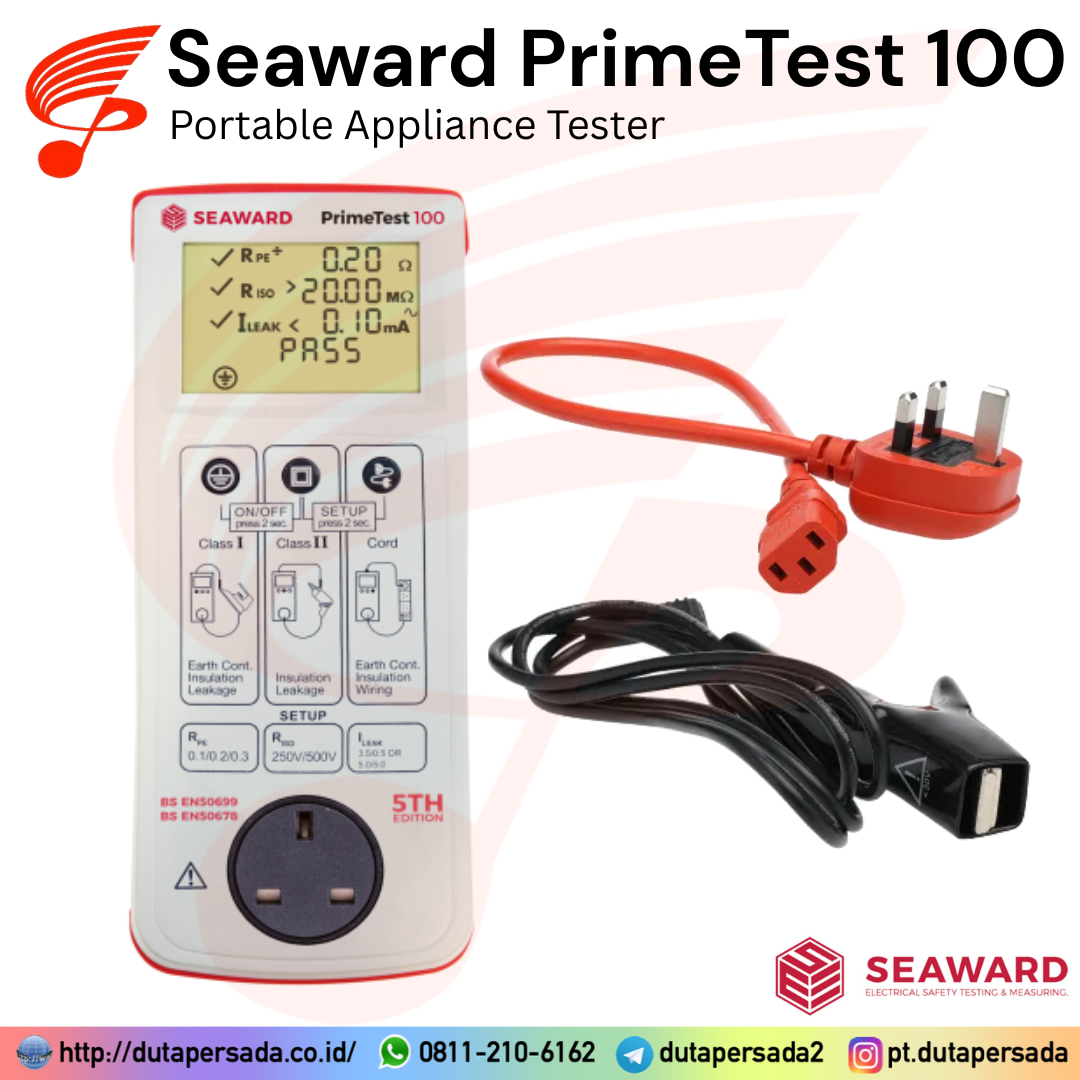

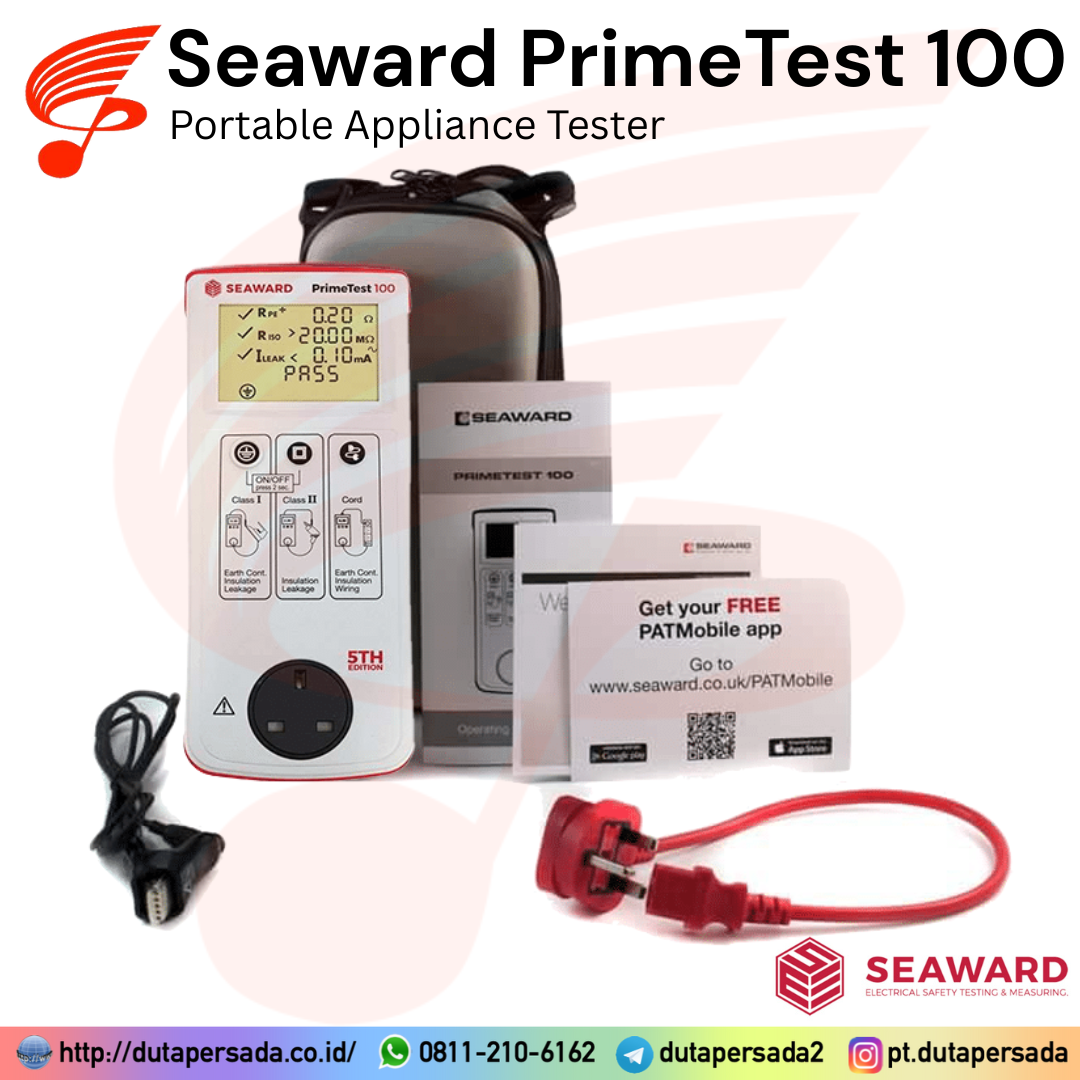

EACH UNIT INCLUDES WITH:
◆ PrimeTest 100 (344A910)
◆ Carry Case (71G082)
◆ Black Test Lead 1m (347A002)
◆ UK IEC mains cord 0.5m (300A002)
◆ Operating Instructions
| Berat | 1 kg |
|---|
| Earth Continuity | |
|---|---|
| Test Current | +/- 200mA DC |
| Display Range | 0.00 – 19.99Ω |
| Pass Value | 0.1Ω/0.2Ω/0.3Ω |
| IEC Lead Test | |
|---|---|
| Tests Performed | Earth continuity, Insulation resistance, Live, neutral continuity and polarity |
| Equivalent Leakage Class II | |
|---|---|
| Test Voltage | 40V, 50Hz AC nominal |
| Display Range | 0.10 – 9.99mA |
| Pass Value | 0.5 / 5.0mA |
| Insulation Range | |
|---|---|
| Test Voltages | 250V/500VDC |
| Display Range | 0.20 – 19.99MΩ |
| Pass Value | 1MΩ/2MΩ |
| Equivalent Leakage Class I | |
|---|---|
| Test Voltage | 40V, 50Hz AC nominal |
| Display Range | 0.10 – 9.99mA |
| Pass Value | 3.5 / 5.0mA |
| Power Socket Test | |
|---|---|
| Input Voltage Range | 230V +10% – 15% AC |
| Indicators | Line to earth voltage, Line to neutral voltage, Neutral earth |
