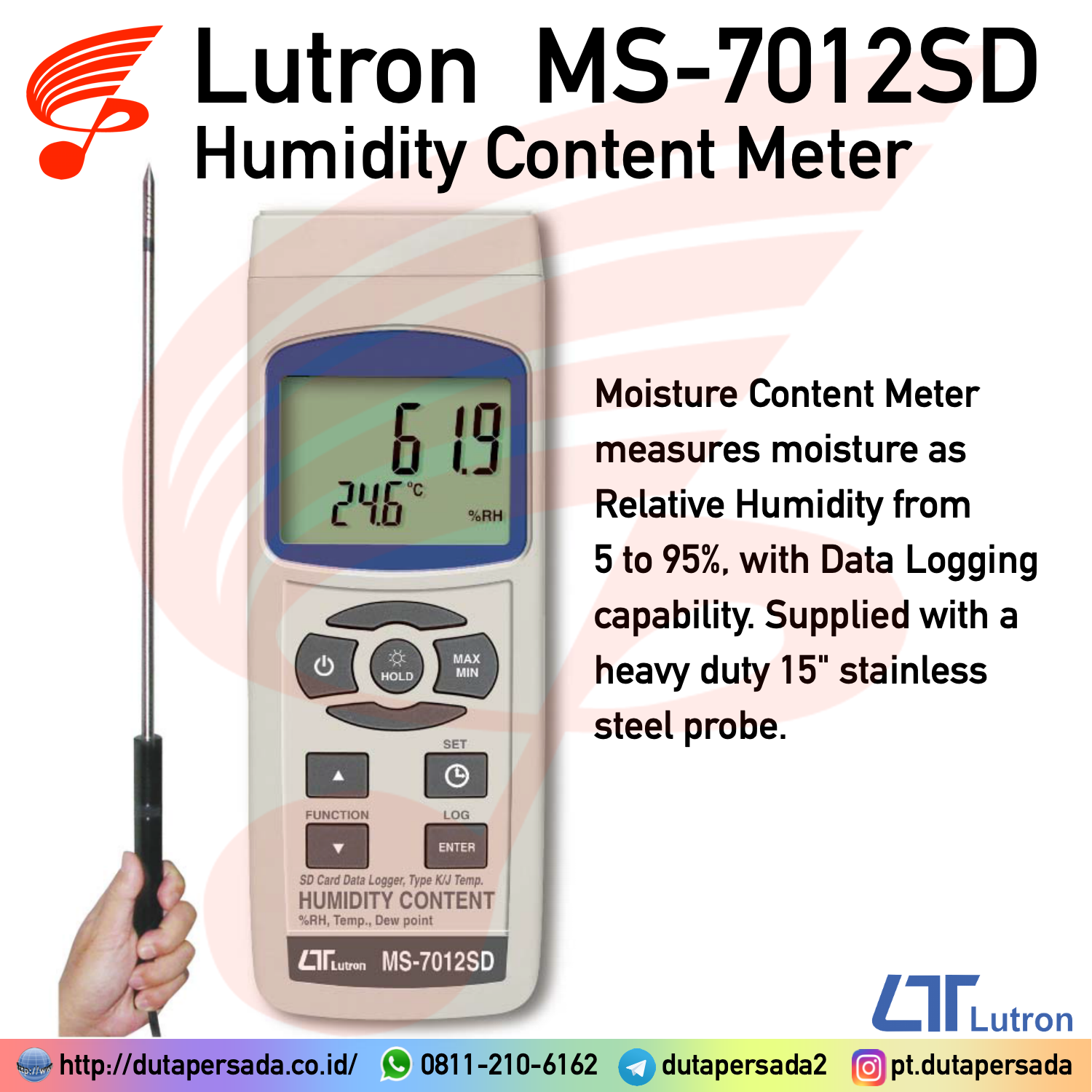

Lutron MS-7012SD – Moisture Humidity Content Meter
Stok 5
The MS-7012SD Humidity Content Meter provides accurate and reliable measurements of humidity, temperature, dew point, and wet bulb temperature, with real-time data logging capabilities, making it an essential tool for various industrial, agricultural, and environmental applications.
Status Barang: Ready
Kondisi: Baru
Minimal Order: 1 pcs
Rp5.609.000,0
Stok 5
HUMIDITY CONTENT METER
Model : MS-7012SD
OVERVIEW:
Lutron MS7012SD is a professional humidity content instrument, used to measure the humidity content value for the materials of grain, corn, rice. cotton, paper etc. Humidity/Temp., Dew point ( Humidity), Wet bulb (Humidity), Type K/J thermometer, 4 kinds measurement are combined into one meter, intelligent and professional. 60cm stainless steel, heavy duty, probe included. Real time SD memory card datalogger.
FEATURES:
◆ Measures moisture content (in relative humidity) as well as temperature, dewpoint and wetbulb all at the same time, with the ability to record the readings on an optional SD card.
◆ Type K/J thermocouple ports.
◆ Automatic temperature compensation ATC.
◆ Fast humidity measuring response time.
◆ Real-time SD (optional) memory card data logger, with built-in clock and calendar. Data recorder sampling times can be set from one second to 3600 seconds.
◆ The SD card (optional) will record the measurement as well as the year, month, day, hour, minute and second. This data can then be uploaded into a spreadsheet.
◆ Auto power off (can be disabled).
◆ Data hold, records maximum and records minimum reading.
◆ Meter back includes a foldout easel stand and a threaded tripod mount.
◆ LCD with green back-light for easy reading in darker areas.
◆ Can default auto power off or manual power off.
◆ Data hold, record max. and min. reading.
◆ Microcomputer circuit, high accuracy.
◆ RS232/USB PC COMPUTER interface.
EACH UNIT INCLUDES WITH:
◆ Instruction manual
◆ Humidity content probe, MS-71P
OPTIONAL ACCESSORIES:
◆ Probe sensing head with inner filter, MS71HEAD
◆ Type K thermocouple probe, TP-01, TP-02, TP-03, TP-04
◆ AC to DC 9V adapter
◆ USB cable, USB-01
◆ RS232 cable, UPCB-02
◆ Data Acquisition software, SW-U801-WIN.
| Berat | 6 kg |
|---|
GENERAL SPECIFICATIONS
|
Circuit |
Custom one-chip of microprocessor LSI circuit. |
|
|
Display |
LCD size : 52 mm x 38 mm |
|
|
Measurement Unit |
Humidity/Temp. : %RH/°C or °F. Dew point ( Humidity ) : °C or °F. Wet bulb ( Humidity ) : °C or °F. Type K/J thermometer : °C or °F. |
|
|
Datalogger Sampling Time Setting range |
Auto |
1 second to 3600 seconds but memory data may loss. |
|
Manual |
Push the data logger button once will save data one time. @ Set the sampling time to 0 second. 1 to 99 position ( Location ) no. |
|
|
Memory Card |
SD memory card. 1 G to 16 G. |
|
|
Advanced setting |
|
|
|
Temperature Compensation |
Automatic temp. compensation for the humidity function and the type K/J thermometer. |
|
|
Data Hold |
Freeze the display reading. |
|
|
Memory Recall |
Maximum & Minimum value. |
|
|
Sampling Time of Display |
Approx. 1 second. |
|
|
Data Output |
RS 232/USB PC computer interface. * Connect the optional RS232 cable UPCB-02 will get the RS232 plug. * Connect the optional USB cable USB-01 will get the USB plug. |
|
|
Operating Temperature |
0 to 50 °C. |
|
|
Operating Humidity |
Less than 85% R.H. |
|
|
Power Supply |
* Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent. |
|
|
* ADC 9V adapter input. ( AC/DC power adapter is optional ). |
||
|
Power Current |
Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 3.5 mA. |
|
|
When SD card save the data but and LCD Backlight is OFF) : Approx. DC 28 mA. |
||
|
* AIf LCD backlight on, the power consumption will increase approx. 12 mA. |
||
|
Weight |
Meter |
345 g/0.76 LB |
|
Probe |
362 g/0.79 LB. |
|
|
Dimension |
Meter Humidity Content Probe: |
182 x 73 x 47.5 mm |
|
Standard Accessories Included |
* Instruction manual………………………1 PC |
|
|
Optional Accessories |
|
|
ELECTRICALSPECIFICATIONS (23±5°C)
Humidity/ Temperature
|
Humidity |
Range |
5 % to 95 % R.H. |
|
|
Resolution |
0.1 % R.H. |
||
|
Accuracy |
≧70% RH : < 70% RH : |
||
|
Temperature |
Range |
0 °C to 50 °C,32 °F to 122 °F. |
|
|
Resolution |
0.1 degree |
||
|
Accuracy |
°C |
± 0.8 °C. |
|
|
°F |
± 1.5 °F. |
||
Dew Point ( Humidity )
|
°C |
Range |
-25.3 °C to 48.9 °C |
|
Resolution |
0.1 °C |
|
|
°F |
Range |
-13.5 °F to 120.1 °F. |
|
Resolution |
0.1 °F. |
|
|
Remark : Humidity/Temp. measurement automatically. Humidity & Temperature measurement.. |
||
Wet bulb ( Humidity )
|
°C |
Range |
-21.6 °C to 50.0 °C |
|
Resolution |
0.1 °C |
|
|
°F |
Range |
-6.9 °F to 122.0 °F. |
|
Resolution |
0.1 °F. |
|
|
Remark : Humidity/Temp. measurement automatically. Humidity & Temperature measurement.. |
||
Type K/J thermometer
|
Sensor Type |
Resolution |
Range |
Accuracy |
|
Type K Type J |
0.1 °C 0.1 °F |
-50.0 to 1300.0 °C -50.1 to -100.0 °C |
± (0.4%+0.5°C) ± (0.4%+1°C) |
|
-58.0 to 2372.0 °F -58.1 to -148.0 °F |
± (0.4%+1°F) ± (0.4%+1.8°F) |
||
|
0.1 °C |
-50.0 to 1200.0 °C -50.1 to -100.0 °C |
± (0.4%+0.5°C) ± (0.4%+1°C) |
|
|
0.1 °F |
-58.0 to 2192.0 °F -58.1 to -148.0 °F |
± (0.4%+1°F) ± (0.4%+1.8°F) |
