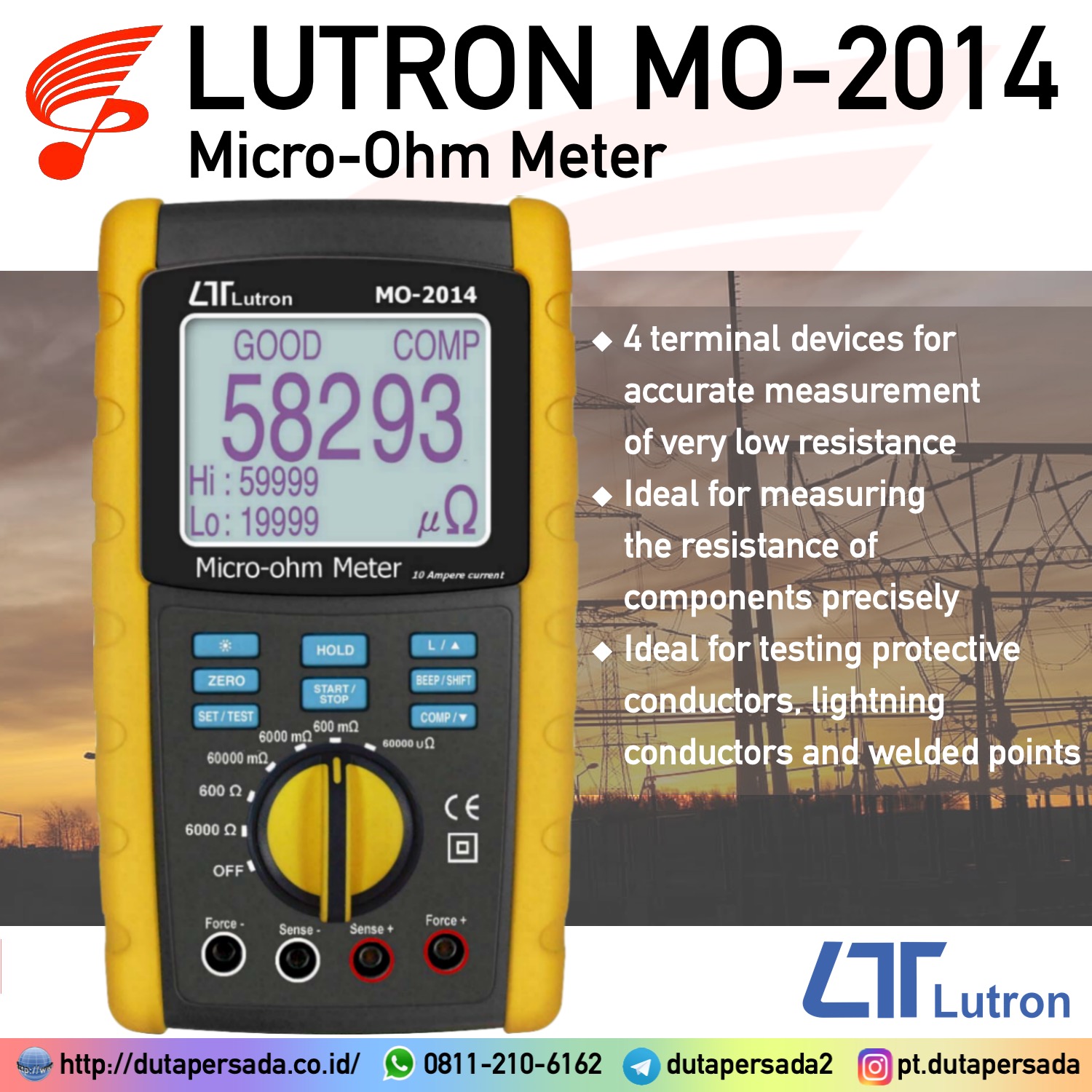

Lutron MO-2014 – Micro-Ohm Meter
Stok 2
The MO-2014 Micro-Ohm Meter offers accurate and reliable measurements for low resistance, making it an essential tool for various applications in industrial environments and maintenance.
Status Barang: Ready
Kondisi: Baru
Minimal Order: 1 pcs
Rp10.341.000,0
Stok 2
Micro-Ohm METER
Model: MO-2014
OVERVIEW:
The MO-2014 Micro-Ohm Meter offers accurate and reliable measurements for low resistance, making it an essential tool for various applications in industrial environments and maintenance
FEATURES:
◆ 4 terminal devices for accurate measurement of very low resistance
◆ Ideal for measuring the resistance of components precisely
◆ Ideal for testing protective conductors, lightning conductors and welded points
◆ Maximum test current is 10A (60000uΩ range only)
◆ Have two working mode , Resistive and Inductive mode, Normal is resistive mode
◆ Good / Fail set-function for input quality control
◆ Built-in in buzzer sound (GOOD STATUS) to assist the Q.C. judgment
◆ Especial “CALCULATE” function to measure cable / wire length
◆ Wide measuring range, 1 uΩ – 6K Ω , 6 ranges
◆ Large size and back-light LCM display, easy read-out
◆ LSI circuit provides high accuracy, reliability and durability
◆ Built-in over input protection
◆ Durable bench type housing plastic case stand
EACH UNIT INCLUDES WITH:
◆ Instruction Manual
◆ Standard 4 wire with 2 Kelvin clips
◆ AC/DC 9V power adapter
◆ Carrying case
OPTIONAL ACCESSORIES:
◆ USB cable, USB-01
◆ RS232 cable, UPCB-02
◆ Data Acquisition software, SW-U801-WIN
◆ SD card data recorder, DL-9602SD
| Berat | 3,5 kg |
|---|
GENERAL SPECIFICATIONS
|
Test Range (Test Current) |
60000uΩ (10ADC) 600mΩ (1ADC) 6Ω (100mADC) 60Ω (10mADC) 600Ω (1mADC) 6000Ω (100uADC) |
|
Warning Setup |
* Warning LCD Indicator * Buzzer |
|
Operating Temp. |
0 to 50°C ( 32 to 122°F ). |
|
Operating Humidit |
yLess than 80 % R.H.. |
|
Power Supply |
DC 1.5 V , AA (UM-3)Battery X 8 PCs . AC to DC 9V Power adapter . |
|
Fuse protect |
* 10 A / 250 V |
|
Dimension |
225 x 125 x 64 mm |
|
Weight |
Approx. 790 g ( 1.74 LB ). |
|
Standard Accessories |
4 wire with 2 Kelvin clips………………1 pair |
|
Optional Accessories |
|
ELECTRICAL SPECIFICATIONS ( 23± 5 °C)
|
Range |
Resolution |
Test current |
Accuracy |
|
60000 u Ω |
1uΩ |
10 A |
± ( 0.25 % + 25 d ) |
|
600 m Ω |
10 u Ω |
1A |
|
|
6000 mΩ |
100 u Ω |
100 mA |
|
|
60000 mΩ |
1000 u Ω |
10 mA |
|
|
600 Ω |
10 mΩ |
1 mA |
|
|
6000 Ω |
100 mΩ |
100 uA |
± ( 0.75 % + 3 d ) |
|
@ The above accuracy is based on the reading value. than 3 V/M & frequency less than the 30 MHz only. |
|||
|
Range |
Open Circuit Voltage |
|
60000 u Ω |
Approx. DC 4.33 V |
|
600 m Ω |
Approx. DC 4.33 V |
|
6Ω |
Approx. DC 4.33 V |
|
60 Ω |
Approx. DC 4.33 V |
|
600 Ω |
Approx. DC 4.33 V |
|
6000 Ω |
Approx. DC 4.33 V |
