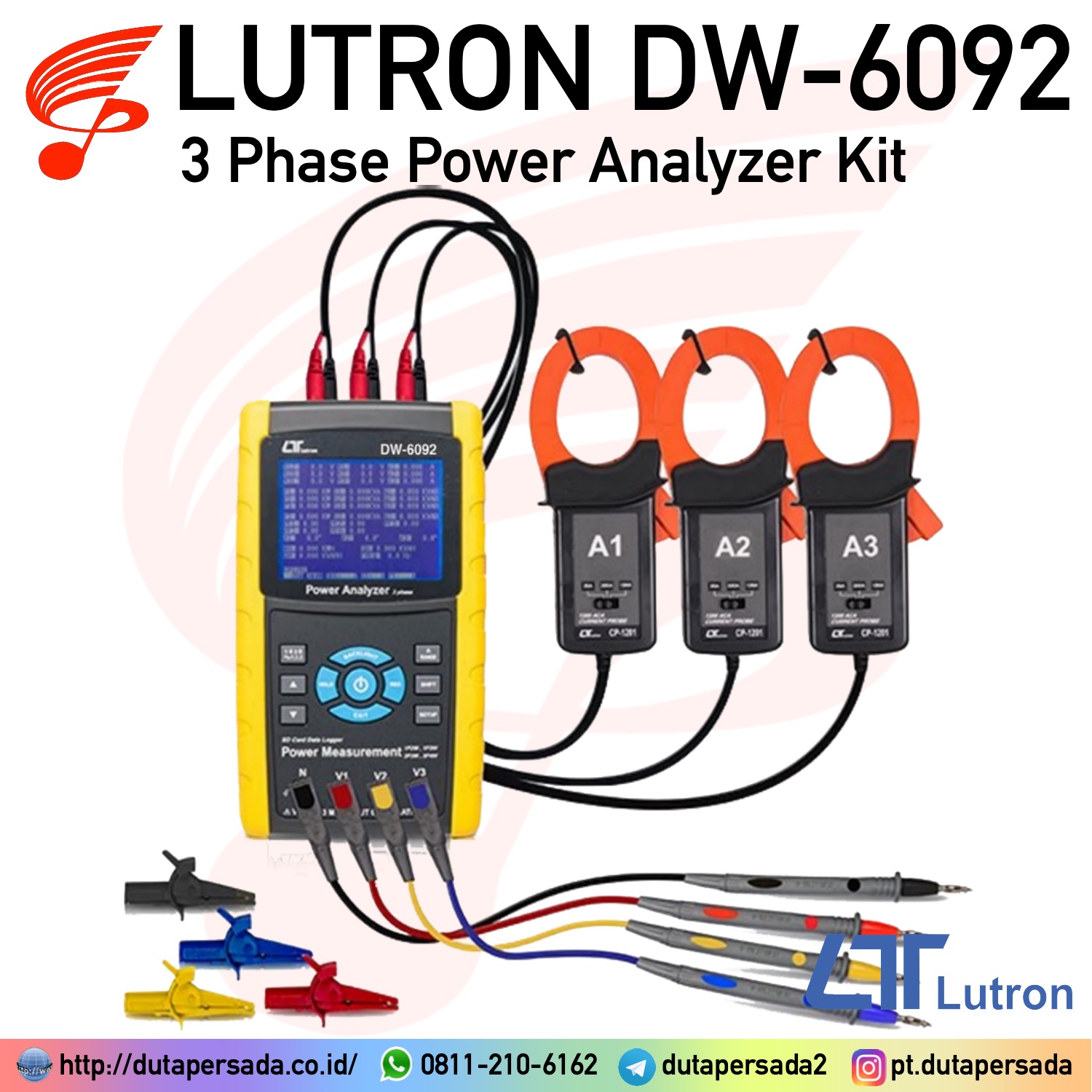

Lutron DW-6092 – 3 Phase Power Quality Analyzer
Availability:
Stok 5
The DW-6092 3-Phase Power Analyzer offers accurate and reliable power measurements with advanced features, making it an essential tool for various industrial applications.
Status Barang: Ready
Kondisi: Baru
Minimal Order: 1 pcs
Rp20.682.000,0
Stok 5
3 PHASE POWER ANALYZER
Model: DW-6092
OVERVIEW:
The DW-6092 3-Phase Power Analyzer offers accurate and reliable power measurements with advanced features, making it an essential tool for various industrial applications.
FEATURES:
◆ Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W
◆ Voltage amp; Current are the True RMS value
◆ True Power (KW, MW, GW) measurement
◆ Apparent Power (KVA, MVA, GVA) measurement
◆ Reactive Power (KVAR, MVAR, GVAR) measurement
◆ Watt-Hour (WH, SH, QH, PFH)
◆ Power Factor (PF) amp; Phase Angle ()
◆ Voltage measurement range: 10 to 600 ACV
◆ Current measurement range: 0.2A to 1200 ACA
◆ Programmable CT ratio (1 to 600) and PT ratio (1 to 1000)
◆ ACV input impedance is 10 Mega ohms.
◆ Safety Standard : IEC 1010, CAT III 600V
◆ Built-in clock and Calendar, real time data record with SD memory card , sampling time set from 2 to 7200 seconds. Just slot in the SD card into the computer, it can down load the all the measured value with the time information (year/ month/ date/hour/ minute/ second) to the Excel directly, then user can make the further data analysis by themselves
◆ Computer data output, can cooperate with USB Cable / RS232 cable and Data Acquisition software
EACH UNIT INCLUDES WITH:
◆ Instruction manual, 1PC
◆ Test Leads (TL88-4AT), 1 Set (4 PCs)
◆ Alligator clips (TL88-4AC), 1 Set (4 PCs)
◆ Clamp Probe (CP-1200), 3 PCs
◆ AC to DC 9V adapter, 1 PC
◆ SD card (2GB), 1 PC
◆ Carrying bag, 1 PC
OPTIONAL ACCESSORIES:
◆ USB Cable , USB-01
◆ RS232 cable, UPCB-02
◆ Data Acquisition software, SW-U811-WIN
| Berat | 6 kg |
|---|
GENERAL SPECIFICATIONS
Circuit | Custom one-chip of microprocessor LSI circuit | |
Display | * LCD Size : * Dot Matrix LCD (320 X 240 pixels ) with back light. | |
Measurement |
| |
Wire connections | 1P/2W, 1P/3W, 3P/3W, 3P/4W. | |
Voltage ranges | 10 ACV to 600 ACV, auto range. | |
Current ranges | 0.2 ACA to 1200 ACA, auto range/manual range. | |
Safety standard | IEC1010 CAT III 600 V. | |
ACV input impedance | 10 Mega ohms. | |
Range select | ACV | Auto range. |
ACA | Auto range & manual range. | |
Clamp frequency response | 40 Hz to 1 KHz. | |
Spec. tested frequency | 45 to 65 Hz. | |
Over load protection | ACV | 720 ACV rms |
ACA | 1300 ACA with clamp probe CP-1200 | |
Over Indicator | Show ” OL “. | |
Under Indicator | Show ” UR “. | |
Data Hold | Freeze the display reading. | |
Data Record | SD Card Record. | |
Sampling Time | Approx. 1 second. | |
Power ON/OFF | Manual OFF by push button. | |
Real time data logger | * Real time data logger, saved the data into SD memory card and down load the all the measured value with the time information ( year/month/data/ hour/mimute/second ) down load to the Excel | |
* Integration time for data logger : | ||
Data Output USB/RS232 * Computer interface | RS232 computer serial interface :
| |
Operating Temperature | 0 to 50°C ( 0 to 122°F ). | |
Operating Humidity | Less than 80% R.H.. | |
Power Supply | * DC1.5V,AA(UM-3)BatteryX8PCs (Alkaline or heavy duty battery). * AC to DC 9V power adapter. | |
Power Consumption | * Meter : 300 DCmA. * Clamp : 20 DCmA. | |
Clamp max. conductor Size | 86 mm ( 3.4 inch ) Dia. | |
Weight | * Meter: 1049g ( includes batteries ) * Clamp : 522g | |
Dimension | Meter: 225X125X64mm | |
Clamp: 210X64X33mm | ||
Clamp Jaw : 50 mm (2.0 inch)- outside | ||
ccessories Included | * Instruction manual…………………..1 PC * Alligator clips (TL88-4AC)…………..1 Set (4 PCs) * Clamp Probe ( CP-1200 )………….. 3 PCs |
Optional Accessories | * USB Cable , USB-01 SW-U811-WIN |
ELECTRICAL SPECIFICATIONS
ACV
Range | Resolution | Accuracy |
10.0V to 600.0V | 0.1V | ± (0.5%+0.5V) |
10.0V to 600.0V * Phase to phase |
ACA
Range | Resolution | Accuracy |
20A | 0.001A, < 10 A | ± (0.5%+0.1A) |
0.01A, ≧ 10 A | ||
200A | 0.01A, < 100 A | ± (0.5%+0.5A) |
0.1A, ≧ 100 A | ||
1200A | 0.1A, < 1000 A | ± (0.5%+5A) |
1A, ≧ 1000 A |
Power factor
Range | Resolution | Accuracy |
0.00 to 1.00 | 0.01 | ± 0.04 |
Remark : For 3Φ 4W, 3Φ 3W For 1Φ 3W | ||
Φ ( Phase angle )
Range | Resolution | Accuracy |
-180° to 180° | 0.1° | ± 1° * ACOS(PF) |
Frequency
Range | Resolution | Accuracy |
45 to 65 Hz | 0.1 Hz | 0.1 Hz |
Active (Real) Power
Range | Resolution | Accuracy |
0.000 to 9.999 KW | *0.001/0.01/0.1 KW | ± (1%+0.008 KW) |
10.00 to 99.99 KW | *0.01/0.1 KW | ± (1%+0.08 KW) |
100.0 to 999.9 KW | 0.1 KW | ± (1%+0.8 KW) |
1.000 to 9.999 MW | 0.001 MW | ± (1%+0.008 MW) |
Apparent Power
Range | Resolution | Accuracy |
0.000 to 9.999 KVA | *0.001/0.01/0.1 KVA | ± (1%+0.008 KVA) |
10.00 to 99.99 KVA | *0.01/0.1 KVA | ± (1%+0.08 KVA) |
100.0 to 999.9 KVA | 0.1 KVA | ± (1%+0.8 KVA) |
1.000 to 9.999 MVA | 0.001 MVA | ± (1%+0.008 MVA) |
Reactive Power
Range | Resolution | Accuracy |
0.000 to 9.999 KVAR | *0.001/0.01/0.1 KVAR | ± (1%+0.008 KVAR) |
10.00 to 99.99 KVAR | *0.01/0/0.1 KVAR | ± (1%+0.08 KVAR) |
100.0 to 999.9 KVAR | 0.1 KVAR | ± (1%+0.8 KVAR) |
1.000 to 9.999 MVAR | 0.001 MVAR | ± (1%+0.008 MVAR) |
Watt Hour ( Active Power Hour) : WH
Range | Resolution | Accuracy |
0.000 to 9.999 KWH | 0.001 KWH | ± (2%+0.008 KWH) |
10.00 to 99.99 KWH | 0.01 KWH | ± (2%+0.08 KWH) |
100.0 to 999.9 KWH | 0.1 KWH | ± (2%+0.8 KWH) |
1.000 to 9.999 MWH | 0.001 MWH | ± (2%+0.008 MWH) |
VA Hour ( Apparent Power Hour ) : SH
Range | Resolution | Accuracy |
0.000 to 9.999 KVAH | 0.001 KVAH | ± (2%+0.008 KVAH) |
10.00 to 99.99 KVAH | 0.01 KVAH | ± (2%+0.08 KVAH) |
100.0 to 999.9 KVAH | 0.1 KVAH | ± (2%+0.8 KVAH) |
1.000 to 9.999 MVAH | 0.001 MVAH | ± (2%+0.008 MVAH) |
VAR Hour ( Reactive Power Hour ) : QH
Range | Resolution | Accuracy |
0.000 to 9.999 KVARH | 0.001 KVARH | ± (2%+0.008 KVARH) |
10.00 to 99.99 KVARH | 0.01 KVARH | ± (2%+0.08 KVARH) |
100.0 to 999.9 KVARH | 0.1 KVARH | ± (2%+0.8 KVARH) |
1.000 to 9.999 MVARH | 0.001 MVARH | ± (2%+0.008 MVARH) |
Based on 0 reviews
Be the first to review “Lutron DW-6092 – 3 Phase Power Quality Analyzer”
