Lutron DR-99DCA – DC Panel Meter

DCV, DCA, ACV, ACA, 4-20 mA, Temp.
PANEL METERS

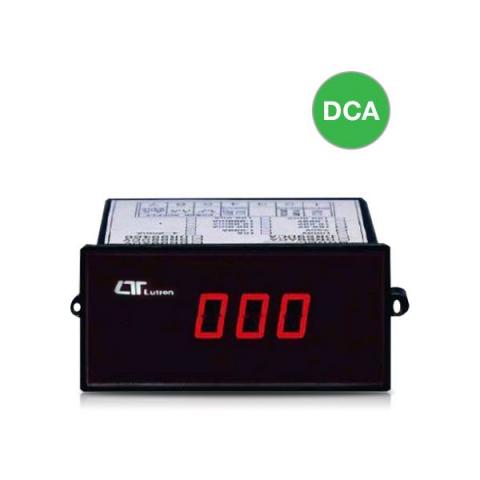

Model: DR-99DCA

OVERVIEW:
The DR-99DCA Panel Meter offers accurate and reliable measurements with a professional and compact design, making it an essential tool for various applications in industrial environments and maintenance.

FEATURES:
◆ Versatile Measurement Range: Supports a wide range of DCA measurements from 199.9 mA to 10 A across six adjustable ranges.
◆ High Resolution: Features a 3 1/2 digit display for clear and precise readings.
◆ Adjustable Ranges: Measurement ranges can be easily adjusted using jumper wires, offering flexibility for various applications.
◆ Robust Design: Equipped with a 14 mm red LED display for easy readability in diverse lighting conditions.
◆ Standard DIN Size: Compact DIN size of 96 x 48 mm with a depth of 104 mm, suitable for panel mounting.

SPECIFICATION:
◆ 199.9mA DC to 10A DC, 6 ranges.
◆ Range can be adjusted via jumper wire
◆ Accuracy: ± (0.5% + 2 digits) of full scale
◆ Sampling Rate: Approx. 2-3 readings per second
◆ 110/220/230 ACV power, 14 mm red LED
◆ DIN size : 96 x 48 mm, Depth : 104 mm

EACH UNIT INCLUDES WITH:
◆ Instruction Manual
