Lutron DW-6095 – 3 Phase Power Quality Analyzer with Harmonic Measurement
Availability:
Stok 5
The DW-6095 3-Phase Power Analyzer offers accurate and reliable measurements of multi-phase power systems, making it an essential tool for various applications in electrical testing, industrial environments, and maintenance.
Status Barang: Ready
Kondisi: Baru
Minimal Order: 1 pcs
Rp35.054.000,0
Stok 5
3 PHASE POWER ANALYZER with harmonic measurement
Model: DW-6095
OVERVIEW:

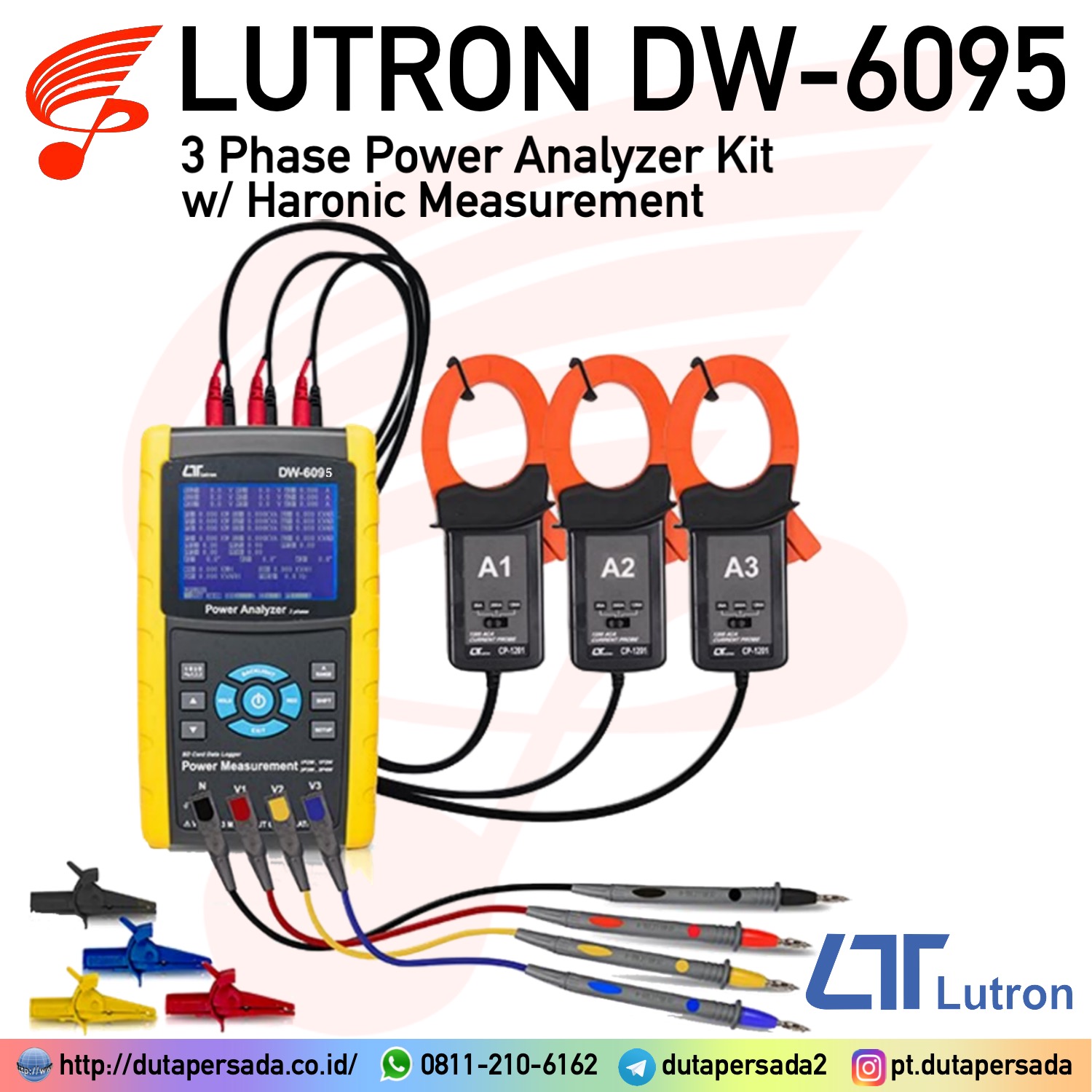

3 Phase Power Analyser Lutron DW-6095 brings basic power analysis, and fault finding within the grasp of most technicians. Included is a complete, ready to use kit for measuring all power parameters on industrial installations to 1200A, with extension using clamp CP3000 to 3000A.
FEATURES:
◆ AC parameters, Power Factor, Phase, Harmonics,Crest Factor, Active, Apparent, Reactive Power
◆ Peak AC voltage and current
◆ IEC 1010 CAT III 600V
◆ Includes 3 x 1200 amp current clamps
◆ Real time logger 2 seconds to 7200 seconds – to SD card (instantaneous values)
◆ Transients recorded such as dip, swell and outage with programmable thresh hold (not waveform)
◆ Display waveform, harmonics, Total harmonic distortion, phase diagram
◆ Export recorded data direct via SD card to EXCEL software for analysis
EACH UNIT INCLUDES WITH:
◆ Instruction Manual (1 PC)
◆ Test Leads (1 Set, 4 PCs)
◆ Alligator Clips (1 Set, 4 PCs)
◆ Clamp Probes (3 PCs, CP-1201)
◆ AC to DC 9V Adapter (1 PC)
◆ SD Card (2 GB)
◆ Carrying Bag (1 PC)
OPTIONAL ACCESSORIES:
◆ USB Cable, USB-01
◆ RS232 cable, UPCB-02
◆ Flexible Clamp Probe 3000A, CP-3000
◆ Flexible Clamp Probe 3000A, CP-6001
◆ Data Acquisition software, SW-U811-WIN
| Berat | 6 kg |
|---|
GENERAL SPECIFICATIONS:
Circuit | Custom one-chip of microprocessor LSI circuit | |
Display | * LCD Size : * Dot Matrix LCD (320 X 240 pixels ) with back light. | |
Measurement |
| |
Wire connections | 1P/2W, 1P/3W, 3P/3W, 3P/4W. | |
Voltage ranges | 10 ACV to 600 ACV, auto range. | |
Current probe input signal and range |
| |
Safety standard | IEC1010 CAT III 600 V. | |
ACV input impedance | 10 Mega ohms. | |
Range select | ACV | Auto range. |
ACA | Manual range. | |
Clamp frequency response | 40 Hz to 1 KHz. | |
Spec. tested frequency | 45 to 65 Hz. | |
Over load protection | ACV | 720 ACV rms |
ACA | 1300 ACA with clamp probe * For the Clamp ,CP-1201 | |
Data Hold | Freeze the display reading. | |
Data Record | SD Card Record. | |
Sampling Time | Approx. 1 second. | |
Power ON/OFF | Manual OFF by push button. | |
Over Indicator | * LCD display show ” OL “. ” 9999 ” or ” 999 “( overleap the decimal point ). | |
Under Indicator | * LCD display show ” UR “. ” 9999 ” or ” 999 ” ( overleap the decimal point ). |
Real time data logger | * Real time data logger, saved the data into SD memory card and down load the all the measured value with the time information ( year/month/data/ hour/minute/second ) down load to the Excel |
* Integration time for data logger : | |
Data Output USB/RS232 * Computer interface | RS232 computer serial interface :
|
Operating Temperature | 0 to 50°C ( 32 to 122°F ). |
Operating Humidity | Less than 80% R.H.. |
Power Supply | * DC1.5V,AA(UM-3)BatteryX8PCs (Alkaline or heavy-duty battery). * AC to DC 9V power adapter. |
Power Consumption | * Meter : 500 DCmA. * Clamp : 34 DCmA. |
Clamp max. conductor Size | 50 mm ( 2.0 inch ) Dia. |
Weight | * Meter : 948g ( includes batteries ) * Clamp ( includded cable ) : 467g |
Dimension | Meter : |
Clamp : | |
Clamp Jaw : 86 mm (3.4 inch)- outside | |
Accessories Included | * Instruction manual…………… 1 PC |
Optional Accessories |
|
ELECTRICAL SPECIFICATIONS:
ACV
Range | Resolution | Accuracy |
10.0V to 600.0V | 0.1V | ± (0.5%+0.5V) |
10.0V to 600.0V * Phase to phase |
ACA
Range | Resolution | Accuracy |
20A | 0.001A, < 10 A 0.01A, ≧ 10 A | ± (0.5%+0.1A) |
200A | 0.01A, < 100 A 0.1A, ≧ 100 A | ± (0.5%+0.5A) |
1200A | 0.1A, < 1000 A 1A, ≧ 1000 A | ± (0.5%+5A) |
Power factor
Range | Resolution | Accuracy |
0.00 to 1.00 | 0.01 | ± 0.04 |
Remark : For 3Φ 4W, 3Φ 3W For 1Φ 3W | ||
Φ ( Phase angle )
Range | Resolution | Accuracy |
-180° to 180° | 0.1° | ±1° *ACOS(PF) |
Active (Real) Power
Range | Resolution | Accuracy |
0.000 to 9.999 KW | *0.001/0.01/0.1 KW | ± (1%+0.008KW) |
10.00 to 99.99 KW | *0.01/0.1 KW | ± (1%+0.08KW) |
100.0 to 999.9 KW | 0.1 KW | ± (1%+0.8KW) |
1.000 to 9.999 MW | 0.001 MW | ± (1%+0.008MW) |
* The resolution is changed according the different ACA range. | ||
Frequency
Range | Resolution | Accuracy |
45 to 65 Hz | 0.1 Hz | 0.1 Hz |
Apparent Power
Range | Resolution | Accuracy |
0.000 to 9.999 KVA | *0.001/0.01/0.1KVA | ± (1%+0.008KVA) |
10.00 to 99.99 KVA | *0.01/0.1 KVA | ± (1%+0.08KVA) |
100.0 to 999.9 KVA | 0.1 KVA | ± (1%+0.8KVA) |
1.000 to 9.999 MVA | 0.001 MVA | ± (1%+0.008MVA) |
* The resolution is changed according the different ACA range. | ||
Reactive Power
Range | Resolution | Accuracy |
0.000 to 9.999 KVAR | *0.001/0.01/0.1KVAR | ± (1%+0.008 KVAR) |
10.00 to 99.99 KVAR | *0.01/0.1 KVAR | ± (1%+0.08 KVAR) |
100.0 to 999.9 KVAR | 0.1 KVAR | ± (1%+0.8 KVAR) |
1.000 to 9.999 MVAR | 0.001 MVAR | ± (1%+0.008 MVAR) |
* The resolution is changed according the different ACA range. | ||
Watt Hour ( Active Power Hour) : WH
Range | Resolution | Accuracy |
0.000 to 9.999 KWH | 0.001 KWH | ± (2%+0.008 KWH) |
10.00 to 99.99 KWH | 0.01 KWH | ± (2%+0.08 KWH) |
100.0 to 999.9 KWH | 0.1 KWH | ± (2%+0.8 KWH) |
1.000 to 9.999 MWH | 0.001 MWH | ± (2%+0.008 MWH) |
VA Hour ( Apparent Power Hour ) : SH
Range | Resolution | Accuracy |
0.000 to 9.999 KVAH | 0.001 KVAH | ± (2%+0.008 KVAH) |
10.00 to 99.99 KVAH | 0.001 KVAH | ± (2%+0.08 KVAH) |
100.0 to 999.9 KVAH | 0.1 KVAH | ± (2%+0.8 KVAH) |
1.000 to 9.999 MVAH | 0.001 MVAH | ± (2%+0.008 MVAH) |
VAR Hour ( Reactive Power Hour ) : QH
Range | Resolution | Accuracy |
0.000 to 9.999 KVARH | 0.001 KVARH | ± (2%+0.008 KVARH) |
10.00 to 99.99 KVARH | 0.01 KVARH | ± (2%+0.08 KVARH) |
100.0 to 999.9 KVARH | 0.1 KVARH | ± (2%+0.8 KVARH) |
1.000 to 9.999 MVARH | 0.001 MVARH | ± (2%+0.008 MVARH) |
Harmonics of AC voltage in Magnitude
* Fundamental frequency 50 Hz, 60 Hz
Range | Resolution | Accuracy |
1 to 20th | 0.1 V | ± (2%+0.5V) |
21 to 30th | ± (4%+0.5V) | |
31 to 50th | reference |
Harmonics of AC voltage in Percentage
* Fundamental frequency 50 Hz, 60 Hz
Range | Resolution | Accuracy |
1 to 20th | 0.1 % | ± (2%+10d) |
21 to 30th | ± (4%+20d) | |
31 to 50th | reference |
Harmonics of AC current in Magnitude
* Fundamental frequency 50 Hz, 60 Hz
Range | Resolution | Accuracy |
1 to 20th | 0.1 A | ± (2%+0.5A) |
21 to 30th | ± (4%+0.5A) | |
31 to 50th | reference |
Harmonics of AC current in Percentage
* Fundamental frequency 50 Hz, 60 Hz
Range | Resolution | Accuracy |
1 to 20th | 0.1 % | ± (2%+10d) |
21 to 30th | ± (4%+20d) | |
31 to 50th | reference |
Peak value of ACV or ACA
Range | Sample Time | Accuracy |
50 Hz | 19 us | ± (5%+30d) |
60 Hz | 16 us | |
* us = micro seconds | ||
Crest Factor of ACV or ACA
Range | Resolution | Accuracy |
1.000 – 99.99 | 0.001 | ± (5%+30d) |
Total Harmonic Distortion
Range | Resolution | Accuracy |
0 to 20 % | 0.1 % | ± (2%+5d) |
20.1 to 100 % | ± (6%+10d) |
