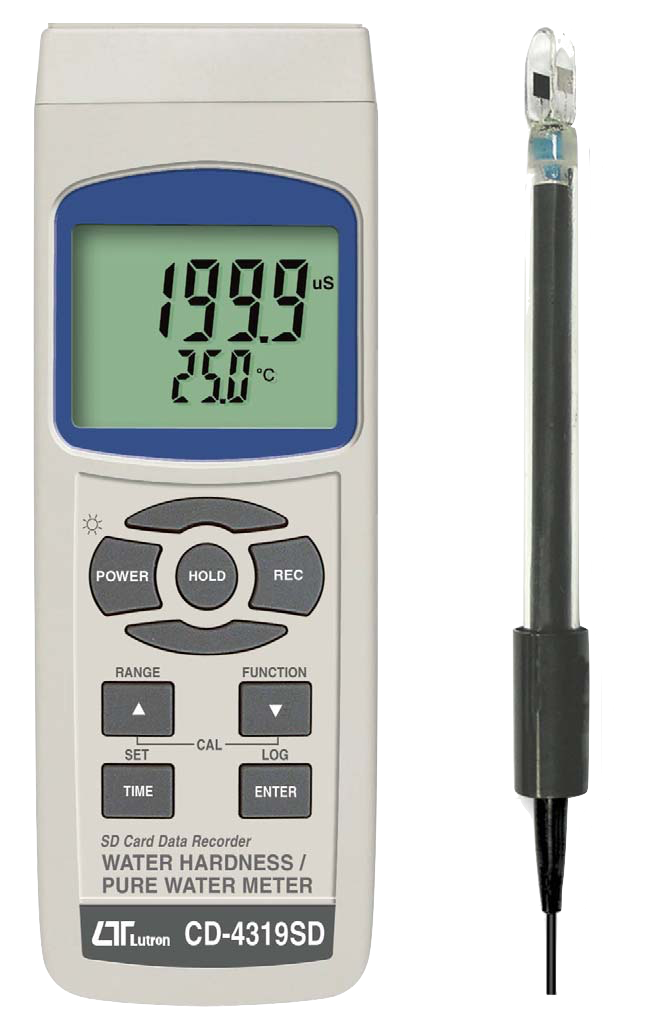

Lutron CD-4319SD – Water Hardness / Pure Water Meter
The CD-4319SD Water Hardness/Pure Water Meter offers comprehensive measurement capabilities with real-time data logging, making it an ideal tool for precise and versatile applications.
Status Barang: Ready
Kondisi: Baru
Minimal Order: 1 pcs
Rp4.628.000,0
WATER HARDNESS/PURE WATER METER
Model: CD-4319SD
OVERVIEW:
The CD-4319SD Water Hardness/Pure Water Meter offers comprehensive measurement capabilities with real-time data logging, making it an ideal tool for precise and versatile applications.
FEATURES:
◆ One meter for multi purpose operation : Conductivity, TDS (Total dissolved solids), Salt , Hardness , Resistivity measurement
◆ Conductivity measurement can select Temp. Coefficient of measurement solution
◆ ATC for the conductivity measurement
◆ Separate probe, easy for operation of different measurement environment
◆ Real time SD memory card Datalogger, built-in Clock and Calendar, sampling time can set from 1 sec to 3600 seconds
◆ Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/ hour/minute/second ) to the Excel directly, thenuser can make the further data or graphic analysis by themselves
◆ LCD with green light backlight, easy reading
◆ Data hold, record max. and min. reading
◆ RS232/USB PC COMPUTER interface
◆ Wide applications: water conditioning, aquariums,beverage, fish hatcheries, food processing, photography,laboratory, paper industry, plating industry, quality control, school amp; college, water conditioning
ACCESSORIES INCLUDED:
◆ Instruction manual,
◆ Conductivity/TDS/Salt pt glass probe, CDPB-04
◆ Hard carrying case (CA-06)
OPTIONAL ACCESSORIES:
◆ 1.413 mS Conductivity Standard Solution, CD-14
◆ SD Card
◆ AC to DC 9V adapter
◆ USB cable, USB-01
◆ RS232 cable, UPCB-02
◆ Data Acquisition software, SW-U801-WIN
| Berat | 2 kg |
|---|
GENERAL SPECIFICATIONS
Circuit | Custom one-chip of microprocessor LSI circuit. | ||
Display | LCD size : 52 mm x 38 mm | ||
Measurement Function | * Conductivity ( uS, mS ) | ||
Temperature Compensation | Automatic from 0 to 60 °C (32 – 140 °F), with temperature compensation factor variable between 0 to 5.0% per C. | ||
Probe Structure | Pt glass electrode for long life. Hight performance for the low conductivity ( pure water ) measurement. | ||
Datalogger Sampling Time Setting range | Auto | 1 sec to 3600 sec. but memory data may loss. | |
Manual | Push the data logger button once will save data one time. @Set the sampling time to 0 second. 1 to 99 position ( Location ) no. | ||
Memory Card | SD memory card. 1 GB to 16 GB. | ||
Advanced setting | * Set clock time (Year/Month/Date,Hour/Minute/ Second ) * Set sampling time * Decimal point of SD card setting | ||
Data Hold | Freeze the display reading. | ||
Memory Recall | Maximum & Minimum value. | ||
Sampling Time of Display | Approx. 1 second. | ||
Data Output | RS 232/USB PC computer interface. the RS232 plug. USB plug. | ||
Operating Temperature | Meter | 0 to 50 °C. | |
Probe | 0 to 60 °C. | ||
Operating Humidity | Less than 85% R.H. | ||
Power Supply | * Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent. * DC 9V adapter input. ( AC/DC power adapter is optional ). | |
Power Current | Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 6 mA. | |
When SD card save the data and LCD Backlight is OFF : Approx. DC 37 mA. | ||
* If LCD backlight on, the power consumption will increase approx. 12 mA. | ||
Weight | 489 g/1.08 LB. | |
Dimension | Meter | 177 x 68 x 45 mm |
Probe | Round, | |
Accessories Included | * Instruction manual…………………………………..1 PC | |
Optional Accessories | * 1.413 mS Conductivity Standard Solution, CD-14 * RS232 cable, UPCB-02. | |
ELECTRICAL SPECIFICATIONS (23± 5 °C)
Conductivity ( uS, mS )
Range | Measurement | Resolution | Accuracy |
20 uS | 0 to 20.00 uS | 0.01 uS | ± (2% F.S.+1d) |
200 uS | 0 to 200.0 uS | 0.1 uS | |
2 mS | 0.2 to 2.000 mS | 0.001 mS | |
20 mS | 2 to 20.00 mS | 0.01 mS | |
200 mS | 20 to 200.0 mS | 0.1 mS | |
* Temperature Compensation : * The accuracy is specified under measurement value ≦ 100 mS. * mS – milli Simens * @ 23± 5°C | |||
TDS ( Total Dissolved Solids )
Range | Measurement | Resolution | Accuracy |
20 PPM | 0 to 13.20 PPM | 0.01 PPM | ± (2% F.S.+1d) * F.S. – full scale |
200 PPM | 0 to 132 PPM | 0.1 PPM | |
2,000 PPM | 132 to 1,320 PPM | 1 PPM | |
20,000 PPM | 1,320 to 13,200 PPM | 10 PPM | |
200,000 PPM | 13,200 to 132,000 PPM | 100 PPM | |
* Temperature Compensation : * The accuracy is specified under measurement value ≦ 66,000 PPM. * PPM – parts per millio* @ 23± 5°C | |||
Temperature
Function | Measuring Range | Resolution | Accuracy |
°C | 0 °C to 60 °C | 0.1 °C | ± 0.8 °C |
°F | 32 °F to 140 °F | 0.1 °F | ± 1.5 °F |
* @ 23± 5°C | |||
Salt
Measurement Range | 0 to 12 % salt ( % weight ). |
Resolution | 0.01 % salt. |
Accuracy | ± 0.5 % salt value |
Hardness
Range | Measurement | Resolution | Accuracy |
10 PPM | 0 to 10.00 PPM | 0.01 PPM | ± (2% F.S.+1d) |
100 PPM | 0 to 100 PPM | 0.1 PPM | |
1,000 PPM | 100 to 1,000 PPM | 1 PPM | |
10,000 PPM | 1,000 to 10,000 PPM | 10 PPM | |
100,000 PPM | 10,000 to 100,000 PPM | 100 PPM |
Resistivity
Range | Measurement | Resolution | Accuracy |
* automatic range | 5 ohm-cm to 99.99 M ohm-cm | 1 ohm-cm to 0.01 M ohm | ± (2% F.S.+1d) * F.S. -full scale |
