Leica L6G – Precision Ailgnment 360° Green Line Laser
Stok 1
The Leica Lino L6G is a professional cross-line laser that projects one horizontal and two vertical 360° green laser lines for full-room alignment. Designed for maximum visibility and precision, it’s ideal for construction, interior finishing, and installation tasks.
Kondisi: Baru
Minimal Order: 1 pcs
OVERVIEW:
360° green laser line projection for multi-directional alignment – perfect for large and bright environments. The laser’s vertical lines are easily adjusted once the plumb point (cross-section of two vertical lines), which is located outside the device, is set.
FEATURES:

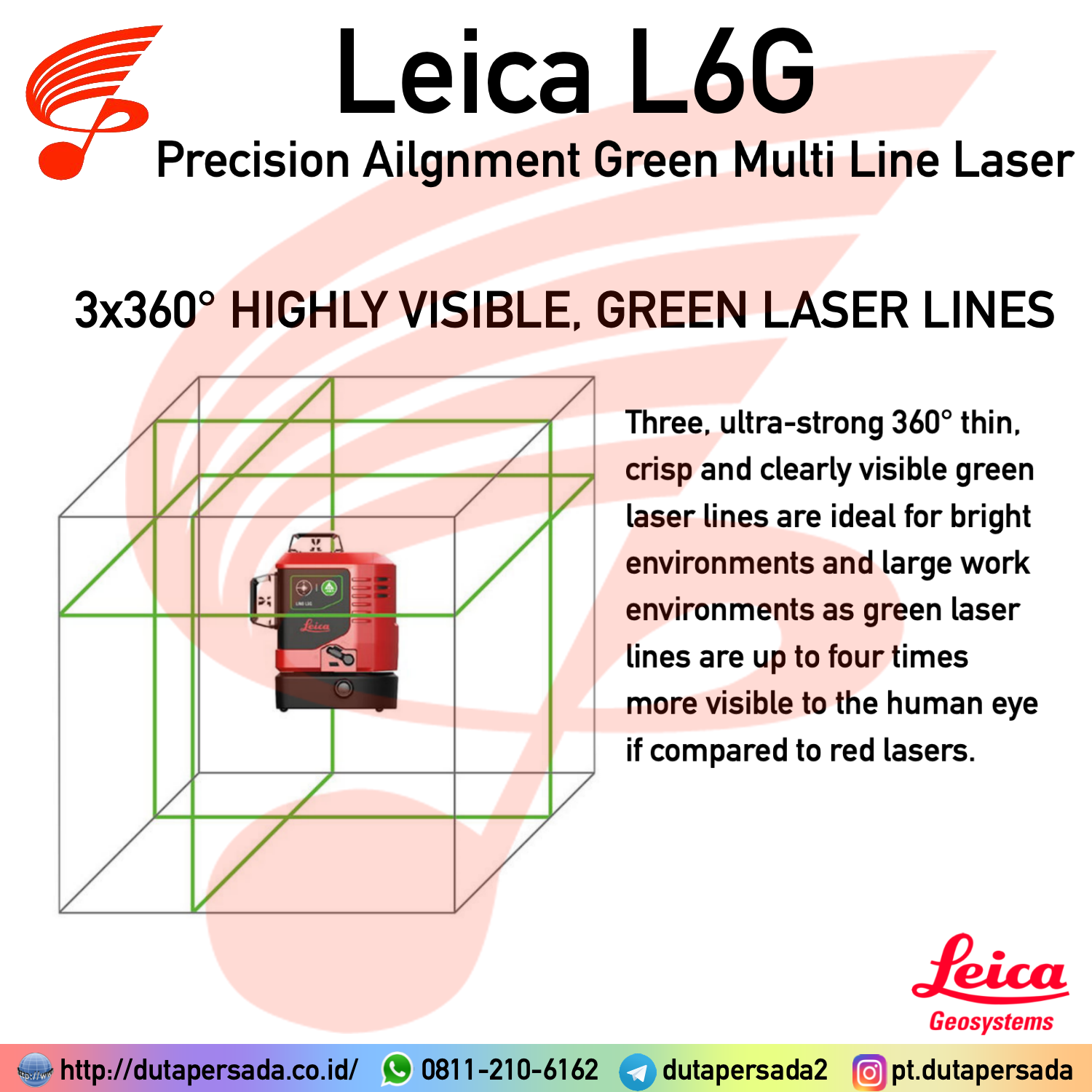

◆ Horizontal and two vertical 360° green laser lines
◆ Best visibility due to green Ultra-Power laser diodes
◆ Self-levelling over wide range
◆ Fixed plumb point due to integrated base
◆ Adjustable strength of laser lines
◆ Operating range of up to 35 m
◆ Li-Ion power for up to 11 h
◆ Uninterrupted working with Triple-Power concept
◆ Smart magnetic adapters versatile usage
EACH UNIT INCLUDES WITH:

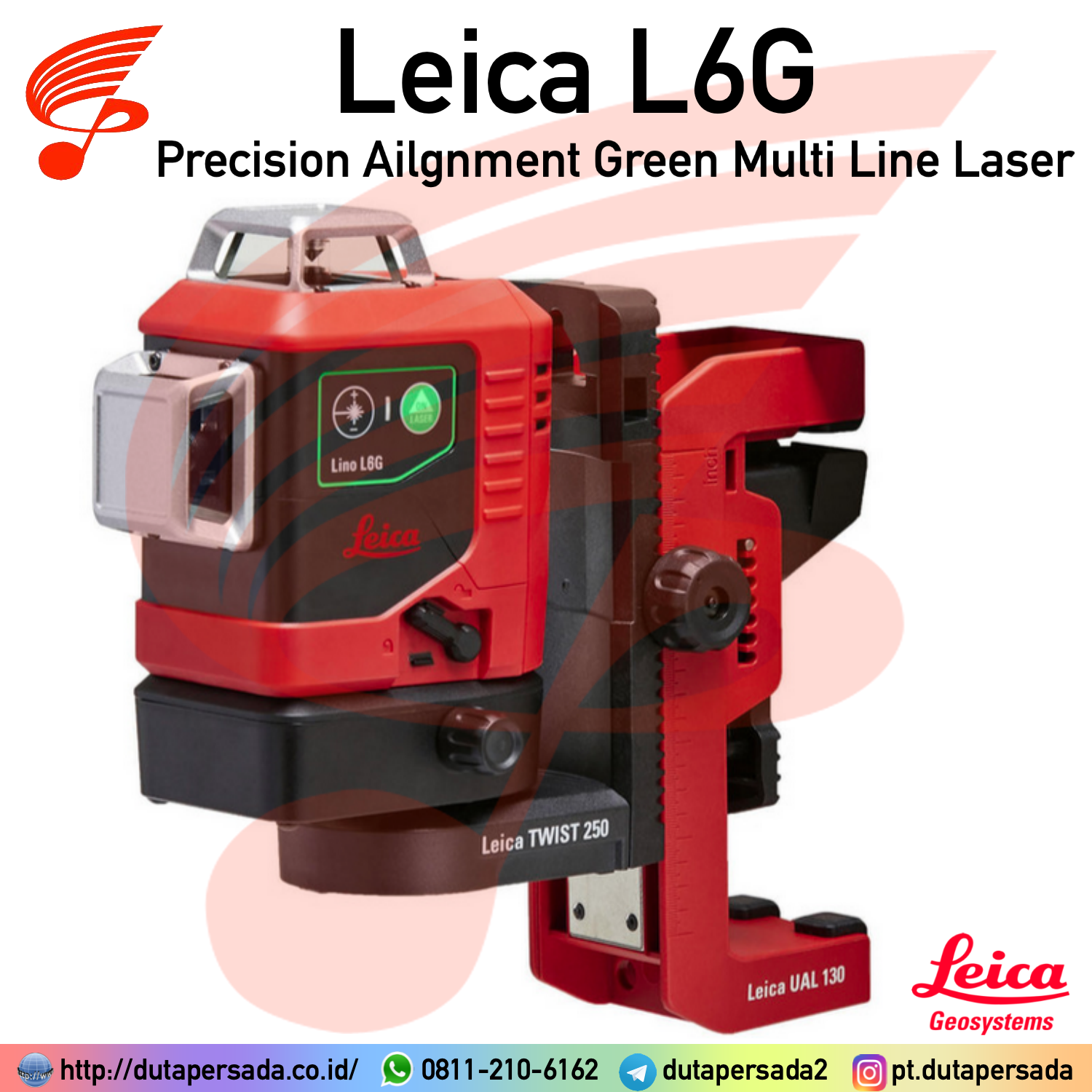

◆ Leica Lino L6G
◆ Twist 250 magnetic adapter
◆ UAL 130 wall mount adapter
◆ Li-Ion battery pack
◆ Charger for Li-Ion battery pack
◆ Battery tray for Alkaline
◆ Target plate
◆ Quick Start Guide
◆ Rugged Case
| Berat | 6 kg |
|---|
| Beam horizontal | 360° |
| Beam vertical | 2 x 360° |
| Intersection points | up, down, right, left, front, back (90° / 180°) |
| Range / diameter* | 35 m / 70 m (115 ft / 230 ft) |
| Range / diameter* with Leica RGR 200 receiver | 70 m / 140 m (230 ft / 460 ft) |
| Levelling accuracy | ± 0.2 mm/m (± 0.002 in/ft) |
| Horizontal- and Vertical line accuracy | ± 0.3 mm/m (± 0.004 in/ft) |
| Intersection points accuracy | ± 0.2 mm/m (± 0.002 in/ft) |
| Self-levelling range | ± 4° |
| Self-levelling time | < 3 sec |
| Fine adjustment | ± 10° around vertical intersection point |
| Out-of-level warning | yes – blink lines every 5 s |
| Levelling | pendulum (lockable) |
| Laser | 525 nm / class 2 (acc. to IEC 60825-1) |
| Protection class | IP54 (dust and splash water) |
| Battery type | 3xAA Alkaline
Lino Li-Ion battery pack |
| Laser line intensity (selectable) | 100 %, 75 %, 50 % |
| Operating time with Li-Ion | optional
up to 11 h (3 beam, 50 % power) |
| Operating time with Alkaline | up to 8 h (3 beam, 50 % power)
up to 8 h (3 beam, 50 % power) |
| Dimensions | 124 x 107 x 154 mm (4.88 x 4.21 x 6.06 in) |
| Weight | 781 g (1.71 lbs) |
| Operation temperature | -10 to +50° C (14 to 122° F) |
| Storage temperature | -25 to +70° C (-13 to +158° F) |
| Laser line width @ 5 m (16.4 ft) distance | < 2 mm (< 0.08 in) |
| Tripod thread | 1/4 in (5/8 in with adapter) |
| Pulse power for receiver | yes |
* Depending on lighting conditions
