Light/Lux Meter

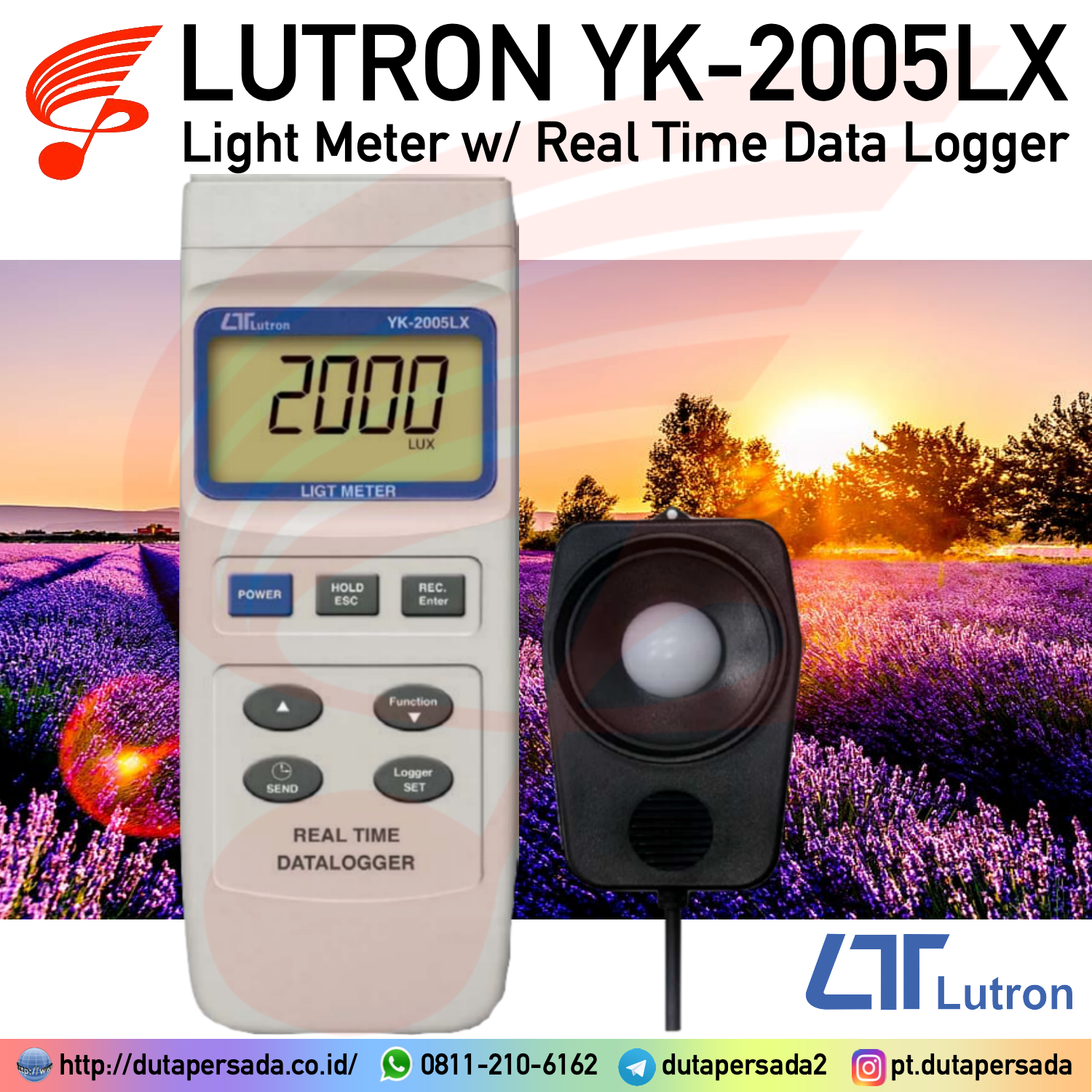

Lutron YK-2005LX – Light / Lux Meter with Real Time Data Logger
Availability:
1 in stock
The Lutron YK-2005LX is a high-precision digital light meter (lux meter) engineered for accurate measurement of illumination levels in a wide range of lighting environments. Designed for professionals in photography, engineering, laboratory research, industrial quality control, and architectural lighting, this instrument combines versatile measurement functionality with advanced data logging and easy PC connectivity.
Status Barang: Preorder (8 minggu)
Kondisi: Baru
Minimal Order: 1 pcs
⚠️ Barang ini Pre-Order (Full Payment). Pengiriman akan dilakukan setelah barang tersedia.
$178.67
1 in stock
LIGHT METER
Model: YK-2005LX
FEATURES :
◆ High capacity, 16,000 data logger point.
◆ Real time data logger (record year, month, date, hour, minute, second).
◆ Range : 200/2,000/20,000/100,000 Lux.
◆ Unit : Lux, Foot-candle.
◆ 4 light type selection.
◆ Sensor meet C.I.E. spectrum, 2 filters.
◆ Max., Min., Data hold, zero adjust.
◆ RS-232 computer interface.
◆ Optional data transmission software, SW-DL2005.
◆ Jumbo LCD display.
◆ DC 1.5V (UM3, AA) x 4 PCs or DC 9V adapter in.
EACH UNIT INCLUDES WITH:
◆ Instruction manual
◆ Light sensor with protective cover
◆ Carrying case
OPTIONAL ACCESSORIES:
◆ RS232 cable, UPCB-02
◆ USB cable, USB-01
◆ Data Acquisition software, SW-U801-WIN
| Weight | 2 kg |
|---|
General Specifications
Circuit | Custom one-chip of microprocessor LSI circuit. | |
Display | LCD size : 58 mm x 34 mm. | |
Measurement Unit | LUX, Feet candle ( Ft-cd ) | |
Lighting Type Selection | Normal ( Tungsten ) light Fluorescent light | |
Light Sensor Structure | The exclusive photo diode & color correction filter, spectrum designed to meet C. I. E. | |
Zero Adj. | By push button. | |
Sampling Time of Data Logger | Manual | Push the data logger button once will save data one time. @Set the sampling time to 0 second |
Auto | 2 sec to 8 hour 59 min. 59 sec. | |
Data Hold | Freeze the display reading. | |
Power off | Auto shut off saves battery life or manual off by push button. power off. power will off automatically after 10 min., if no button be pressed. | |
Memory Recall | Maximum & Minimum value. |
Sampling Time of display | Approx. 1 second. |
Data Output | RS 232 PC serial interface. |
Operating Temperature | 0 to 50 °C. |
Operating Humidity | Less than 80% R.H. |
Power Supply | DC 1.5 V battery ( UM3 ) x 4 PCs, ( Heavy duty type ). |
DC 9V adapter input. | |
Power Current | Approx. DC 19.0 mA |
Weight | 406 g/ 0.89 LB. |
Dimension | Main instrument : 203 x 76 x 38 mm Light Sensor Probe : 85x55x12 mm(3.2×2.2×0.5 inch). |
Accessories Included | Instruction manual……………………1 PC Light sensor with protective cover…………………………………….1 PC Carrying case…………………………. 1 PC |
Optional Accessories | AC to DC 9V adapter. |
Electrical Specifications (23± 5 °C)
Measurement | Range | Max. In-range Display |
LUX | 200 LUX | 0 – 199.9 LUX |
2,000 LUX | 180 – 1,999 LUX | |
20,000 LUX | 1,800 – 19,990 LUX | |
100,000 LUX | 18,000 – 100,000 LUX | |
Feet-candle | 20 Ft-cd | 0 – 18.6 Ft-cd |
200 Ft-cd | 16.7 – 186.0 Ft-cd | |
2,000 Ft-cd | 167 – 1,860 Ft-cd | |
10,000 Ft-cd | 1,670 – 10,000 Ft-cd |
Range | Resolution | Accuracy |
200 LUX | 0.1 LUX | ± (4 %+2 dgt) |
2,000 LUX | 1 LUX | |
20,000 LUX ( 2000×10 ) | 10 LUX | |
100,000 LUX (1000×100 ) | 100 LUX | |
20 Ft-cd | 0.01 Ft-cd | |
200 Ft-cd | 0.1 Ft-cd | |
2,000 Ft-cd | 1 Ft-cd | |
10,000 Ft-cd ( 1000×10) | 10 Ft-cd | |
Note : Accuracy tested by a standard parallel light tungsten lamp of 2856 K degree temperature. | ||
Based on 0 reviews
Be the first to review “Lutron YK-2005LX – Light / Lux Meter with Real Time Data Logger”
Related products
- Pre-Order
- Ready StockAnemometer, Humidity Meter, Light/Lux Meter, Sound Level Meter
Lutron LM-8102 – 5 in 1 Environment Meter (Anemometer / Hygrometer / Light / Thermometer / Sound Level)
Anemometer, Humidity Meter, Light/Lux Meter, Sound Level MeterLutron LM-8102 – 5 in 1 Environment Meter (Anemometer / Hygrometer / Light / Thermometer / Sound Level)
The LM-8102 Multifunction Environment Meter provides accurate and reliable measurements of air velocity, humidity, light, temperature, and sound levels, making it an essential tool for various industrial, environmental, and HVAC applications.
SKU: L-LM8102 - Pre-OrderLight/Lux Meter
Lutron PLX-111 – Pen Light Meter / Lux Meter
PLX‑111 is a compact and easy-to-use digital light meter designed for measuring light intensity (illumination) quickly and accurately in different environments. It’s ideal for lighting checks in workplaces, offices, studios, schools, factories, and general indoor/outdoor lighting assessments.
SKU: L-PLX111 - Ready StockLight/Lux Meter

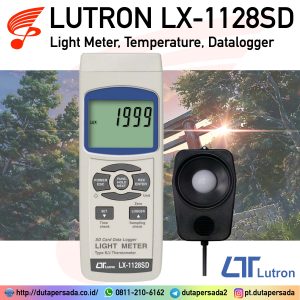

Lutron LX-1128SD – Light / Lux Meter + type K/J Temp.
