Anemometer, Humidity Meter, Light/Lux Meter, Sound Level Meter

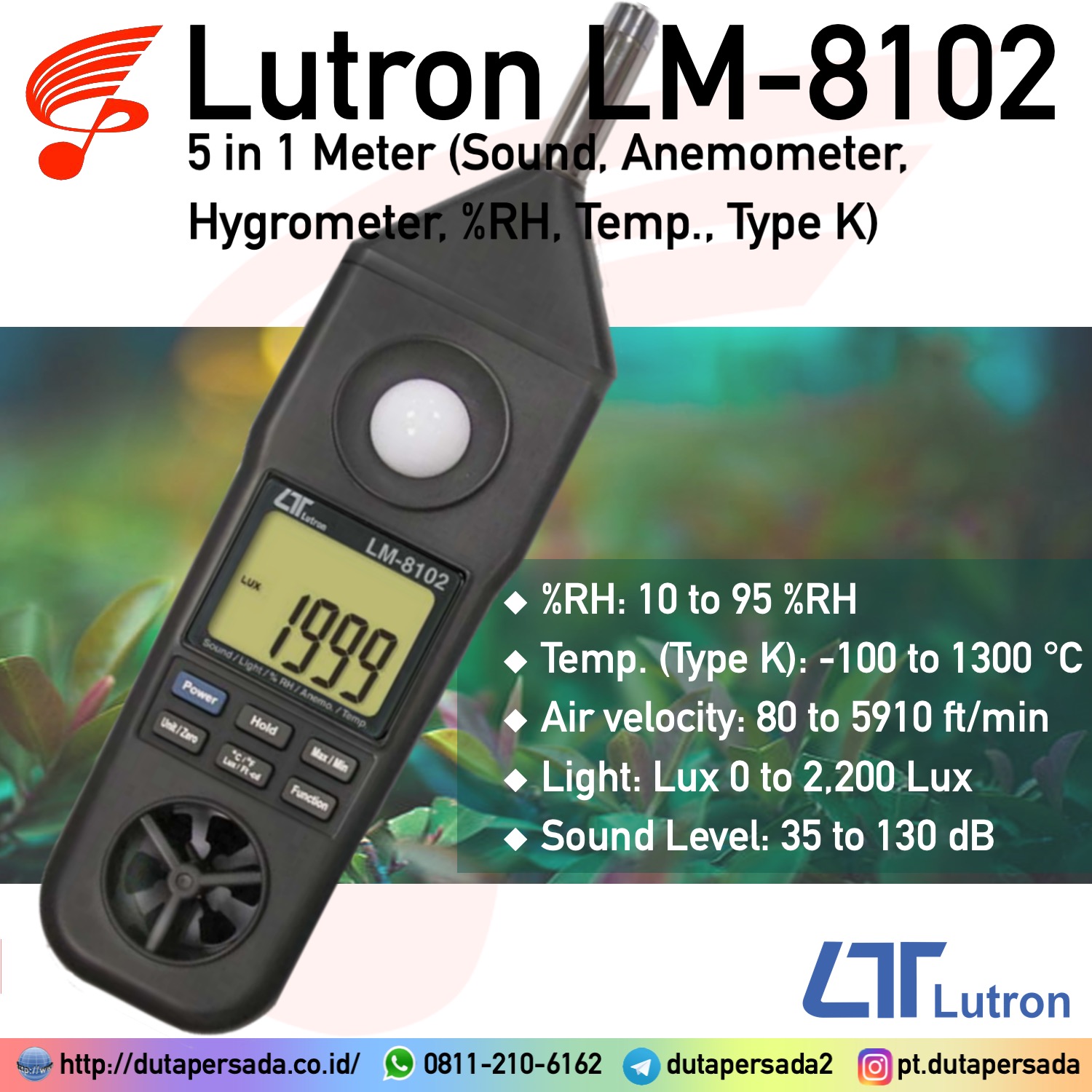

Lutron LM-8102 – 5 in 1 Environment Meter (Anemometer / Hygrometer / Light / Thermometer / Sound Level)
Availability:
5 in stock
The LM-8102 Multifunction Environment Meter provides accurate and reliable measurements of air velocity, humidity, light, temperature, and sound levels, making it an essential tool for various industrial, environmental, and HVAC applications.
Status Barang: Ready
Kondisi: Baru
Minimal Order: 1 pcs
$183.92
5 in stock
5 IN 1 ENVIROMENT METER
Model: LM-8102
FEATURES:
◆ 5 in 1 professional measuring instrument: Anemometer, Hygrometer, Type K Thermometer, Light meter. Sound level meter
◆ Anemometer use low-friction ball bearing mounted wheel design provides high accuracy
◆ Light meter use exclusive photo diode and color correction filter light sensor, spectrum meets C.I.E. photopic
◆ Type K thermometer use standard type K (NiCr-NiAl) thermocouple input jack suitable for all kinds of type K probe
◆ Humidity meter use high precision humidity sensor with fast response time
◆ Sound level meter’s characteristic is simulated as “Human Ear Listing” response, used the “A” frequency weighting and “Fast” time weighting to meet IEC 61672 class 2
◆ Sound level meter can cooperate the external 94 dB sound calibrator and just press the front buttons to make the calibration
◆ Built- in microprocessor circuit assures excellent performance and accuracy
◆ Concise and compact buttons arrangement, easy operation
◆ Memorize the maximum and minimum value with recall
◆ Hold function to freeze the current reading value detection by pressing button on the front panel
◆ Lux/Feet-candle selection by pressing front button
◆ Air velocity measuring units selection by pressing button on the front panel for five kinds of units
◆ Multi channel display for relative humidity and temperature measured values or air velocity and temperature measured values at the same time
◆ Zero button design makes light meter calibration
◆ Rough housing case suitable for handling with one hand
◆ RS232/USB computer data bus
EACH UNIT INCLUDES WITH:
◆ Instruction Manual
OPTIONAL ACCESSORIES:
◆ Carrying case
◆ Type K Temperature probe
◆ Sound Calibrator, SC-942 / SC-934
◆ USB cable, USB-01
◆ RS232 cable, UPCB-02
◆ Data Acquisition software, SW-U801-WIN
| Weight | 1 kg |
|---|
GENERAL SPECIFICATIONS
Display | LCD display, LCD soze : 41.5 x 31.5 mm. |
Measurement | 5 in 1 : |
Operating Humidity | Max. 80 %RH. |
Operating Temperature | 0to50° C(32to122° F) |
Over Input Display | Indication of “- – – – ” |
Data Output | RS 232/USB PC serial interface. * Connect the optional USB cable USB-01 will get the USB plug. |
Power Supply | DC 1.5 V battery ( UM4, AAA ) x 4 PCs, |
OrDC9Vadapterinput. @AC/DCpoweradapterisoptional. | |
Power Consumption | Anemometer : Approx. DC 11 mA. Other functions : Approx. DC 7.5 mA. |
Weight | 335 g/0.74 LB ( battery included ). |
Dimension | HWD 248 x 70 x 34 mm ( 9.8 x 2.8 x 1.3 inch). |
Standard Accessory | Instruction Manual………………………… 1 PC |
Optional Accessories | Carrying case. AC to DC power adapter. |
ELECTRICAL SPECIFICATION ( 23 ± 5°C )
Hygrometer ( Humidity/Temp. )
Measurement | Range | Resolution | |
Humidity | %RH | 10 to 95 %RH | 0.1 %RH |
Temperature ( Semiconductor) | 32 to 122 °F | 0.1 °F | |
0 to 50 °C | 0.1 °C | ||
Measurement | Range | Accuracy |
Humidity | 10 to 95 %RH | < 70 %RH : ± 4 %RH ≧70 %RH : |
32 to 122 °F | ± 2.5 °F | |
0 to 50 °C | ± 1.2 °C |
Type K Thermometer
Measurement | Range | Resolution |
Temperature ( Type K ) | -148 to 2372 °F | 0.1 °F |
-100 to 1300 °C | 0.1 °C |
Measurement | Range | Accuracy |
Temperature (TypeK ) | -148 to 2372 °F | ± (1% rdg + 2°F) |
-100 to 1300 °C | ± (1% rdg + 1°C) |
Anemometer ( Air velocity/Temp. )
Measurement | Range | Resolution | |
Air velocity | ft/min | 80 to 5910 ft/min | 1 ft/min |
m/s | 0.4 to 30.0 m/s | 0.1 m/s | |
km/h | 1.4 to 108.0 km/h | 0.1 km/h | |
MPH | 0.9 to 67.0 mile/h | 0.1 MPH | |
knots | 0.8 to 58.3 knots | 0.1 knots | |
Temperature ( Semiconductor) | 32 to 122 °F | 0.1 °F | |
0 to 50 °C | 0.1 °C | ||
Measurement | Range | Accuracy |
Air velocity | 80 to 5910 ft/min | ≦ 20 m/s : ± 3% F.S. > 20 m/s : ± 4% F.S. |
0.4 to 30.0 m/s | ||
1.4 to 108.0 km/h | ||
0.9 to 67.0 mile/h | ||
0.8 to 58.3 knots | ||
32 to 122 °F | ± 2.5 °F | |
0 to 50 °C | ± 1.2 °C | |
Remark : | ||
Light
Measurement | Range | Resolution | |
Light | Lux | 0 to 2,200 Lux | 1 Lux |
1,800 to 20,000 Lux | 10 Lux | ||
Ft-cd | 0 to 204.0 Fc | 0.1 Ft-cd | |
170 to 1,860 Fc | 1 Ft-cd | ||
Temperature ( Type K ) | -148 to 2372 °F | 0.1 °F | |
-100 to 1300 °C | 0.1 °C | ||
Measurement | Range | Accuracy |
Light | 0 to 20,000 Lux | ±5%rdg ±8dgt |
0 to 1,860 Fc | ||
Temperature (TypeK ) | -148 to 2372 °F | ± (1% rdg + 2°F) |
-100 to 1300 °C | ± (1% rdg + 1°C) | |
Remark : Ft-cd : feet candle | ||
Sound Level
Measurement Range | Auto range range 1 – 35 to 80 dB, range 2 – 50 to 100 dB, range 3 – 80 to 130 dB, | |||||||||||||||||||
Resolution | 0.1 dB. | |||||||||||||||||||
Measurement Frequency | 31.5 Hz to 8,000 Hz. | |||||||||||||||||||
Weighting | Frequency Weighting | Characteristics of ” A ” frequency weighting network. The characteristic is simulated as ” Human Ear Listing ” response. | ||||||||||||||||||
Time Weighting | ” Fast ” time weighting. | |||||||||||||||||||
Accuracy (23± 5 °C) | Characteristics of ” A ” frequency weighting network meet IEC 61672 class 2.
| |||||||||||||||||||
Calibrator | B & K (Bruel & kjaer), multi-fuction acoustic calibrator, model : 4226. | |||||||||||||||||||
Microphone | Electric condenser microphone. | |||||||||||||||||||
Size of microphon | 1/2 inch standard size. | |||||||||||||||||||
Data Hold | Hold function to freeze the display value. | |||||||||||||||||||
Optional Accessories | Sound Calibrator, Model : SC-934/SC-942 | |||||||||||||||||||
