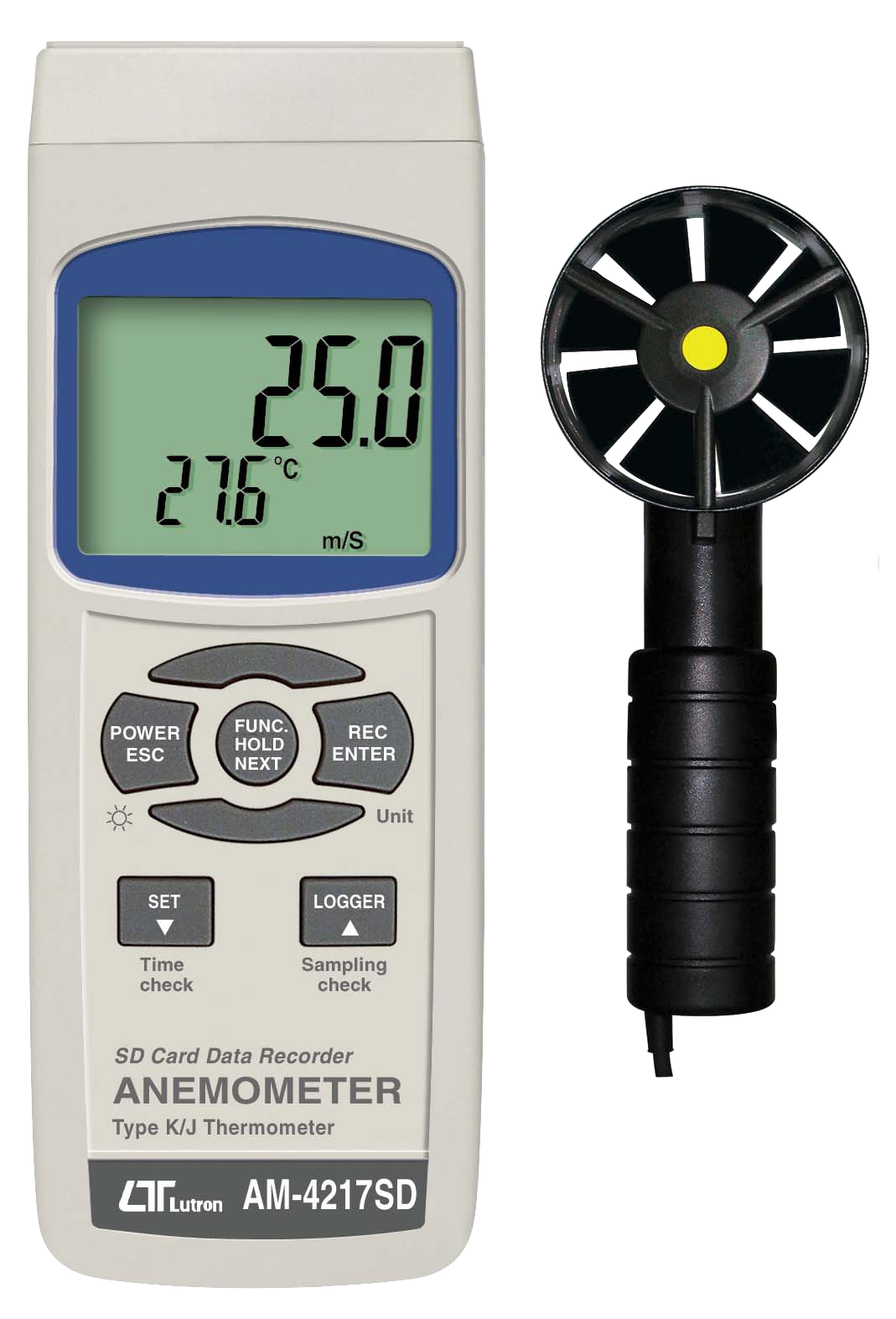

Lutron AM-4217SD – Anemometer + Type K/J Temperature with SD Card Data Recorder
1 in stock
The AM-4217SD is a portable digital anemometer manufactured by Lutron, designed to measure air velocity and temperature — and to record measurement data directly to an SD card. This makes it useful for HVAC inspections, environmental monitoring, airflow testing, ventilation checks, indoor-air studies, and other applications requiring accurate airflow/air-speed measurement and data logging.
Status Barang: Preorder (8 minggu)
Kondisi: Baru
Minimal Order: 1 pcs
SD Card real time data recorder, Patent
ANEMOMETER + type K/J Temp.
Model : AM-4217SD
OVERVIEW:
Anemometer, air velocity meter, temperature and type K/J digital thermometer. The Lutron AM-4217SD is one of a new family of logging meters for many different parameters, which log data to an SD card.
FEATURES:
◆ Air velocity : m/S, Ft/min, Km/h, Knots, Mile/h,
◆ Air temperature (, )
◆ Low-friction ball vane wheels make sure high accuracy in high & low velocities
◆ Type K, Type J thermocouple thermometer.
◆ Air Temp. used thermistor sensor, fast response time
◆ Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder, sampling time set from 1 second to 3600 seconds.
◆ Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).
◆ Innovation and easy operation, computer is not need to setup extra software
◆ SD card capacity : 1 GB to 16 GB. (Optional)
◆ LCD with green light backlight, easy reading
◆ Can default auto power off or manual power off
◆ Data hold, record max. and min. reading.
◆ Microcomputer circuit, high accuracy.
◆ Power by UM3/AA (1.5 V) x 6 batteries or DC 9V adapter.
◆ RS232/USB PC COMPUTER interface.
◆ Separate probe, easy for operation of different measurement environment.
◆ Wide applications: use this anemometer to check air conditioning & heating systems, measure air velocities, wind temperature…etc.
EACH UNIT INCLUDES WITH:
◆ Instruction manual
◆ Anemometer probe
◆ Hard carrying case
OPTIONAL ACCESSORIES:
◆ Type K thermocouple probe, TP-01, TP-02
◆ USB cable, USB-01
◆ RS232 cable, UPCB-02
◆ Data Acquisition software, SW-U801-WIN
| Weight | 2 kg |
|---|
GENERAL SPECIFICATIONS
|
Circuit |
Custom one-chip of microprocessor LSI circuit. |
|
|
Display |
LCD size : 52 mm x 38 mm |
|
|
Measurement Unit |
Air velocity: |
|
|
Air temperature: °C, °F |
||
|
Type K/ Type J thermometer. °C, °F |
||
|
Datalogger Sampling Time Setting range |
Auto |
1 second to 3600 seconds but memory data may loss. |
|
Manual |
Push the data logger button once will save data one time. @ Set the sampling time to 0 second. 1 to 99 position ( Location ) no. |
|
|
Memory Card |
SD memory card. 1 GB to 16 GB. |
|
|
Advanced setting |
|
|
|
Data Hold |
Freeze the display reading. |
|
|
Temperature Compensation |
Automatic temp. compensation for the Anemometer function and the type K/J thermometer. |
|
Memory Recall |
Maximum & Minimum value. |
|
Sampling Time of Display |
Approx. 1 second. |
|
Data Output |
RS 232/USB PC computer interface. * Connect the optional RS232 cable UPCB-02 will get the RS232 plug. * Connect the optional USB cable USB-01 will get the USB plug. |
|
Operating Temperature |
0 to 50 °C. |
|
Operating Humidity |
Less than 85% R.H. |
|
Power Supply |
* Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent. |
|
* ADC 9V adapter input. ( AC/DC power adapter is optional ). |
|
|
Power Current |
Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 15 mA. |
|
When SD card save the data and LCD Backlight is OFF) : Approx. DC 36 mA. |
|
|
Weight |
515 g/ 1.13 LB. |
|
Dimension |
Main instrument : 203 x 76 x 38 mm Anemometer sensor head : Round, 76 mm Dia. |
|
Accessories Included |
* Instruction manual………………………1 PC * Anemometer probe………………. 1 PC
* Hard carrying case ( CA-06 )………….1 PC |
|
Optional Accessories |
SD Card |
ELECTRICALSPECIFICATIONS (23±5°C)
Air velocity
|
Measurement |
Range |
Resolution |
Accuracy |
|
m/S |
0.3 – 35.0 m/s |
0.1 m/S |
± ( 2%+0.2 m/S) |
|
Km/h |
1.0 – 125.0 km/h |
0.1 Km/h |
± ( 2%+0.8 Km/h) |
|
mph ( Mile/h ) |
0.7 – 78.2 mile/h |
0.1 mph |
± ( 2%+0.4 mph) |
|
Knots |
0.6 – 68.0 knots |
0.1 Knots |
± ( 2%+0.4 Knots) |
|
FPM ( Ft/min ) |
60 – 6900 ft/min |
1 FPM |
± ( 2%+40 FPM) |
Air temperature
|
Measuring Range |
0 °C to 50 °C/32 °F to 122 °F |
|
Resolution |
0.1 °C/0.1 °F |
|
Accuracy |
± 0.8 °C/1.5 °F |
Type K/J thermometer
|
Sensor Type |
Resolution |
Range |
Accuracy |
|
Type K |
0.1 °C |
-50.0 to 1300.0 °C -50.1 to -100.0 °C |
± (0.4%+0.5°C) ± (0.4%+1°C) |
|
0.1 °F |
-58.0 to 2372.0 °F -58.1 to -148.0 °F |
± (0.4%+1°F) ± (0.4%+1.8°F) |
|
|
Type J |
0.1 °C |
-50.0 to 1200.0 °C -50.1 to -100.0 °C |
± (0.4%+0.5°C) ± (0.4%+1°C) |
|
0.1 °F |
-58.0 to 2192.0 °F -58.1 to -148.0 °F |
± (0.4%+1°F) ± (0.4%+1.8°F) |
