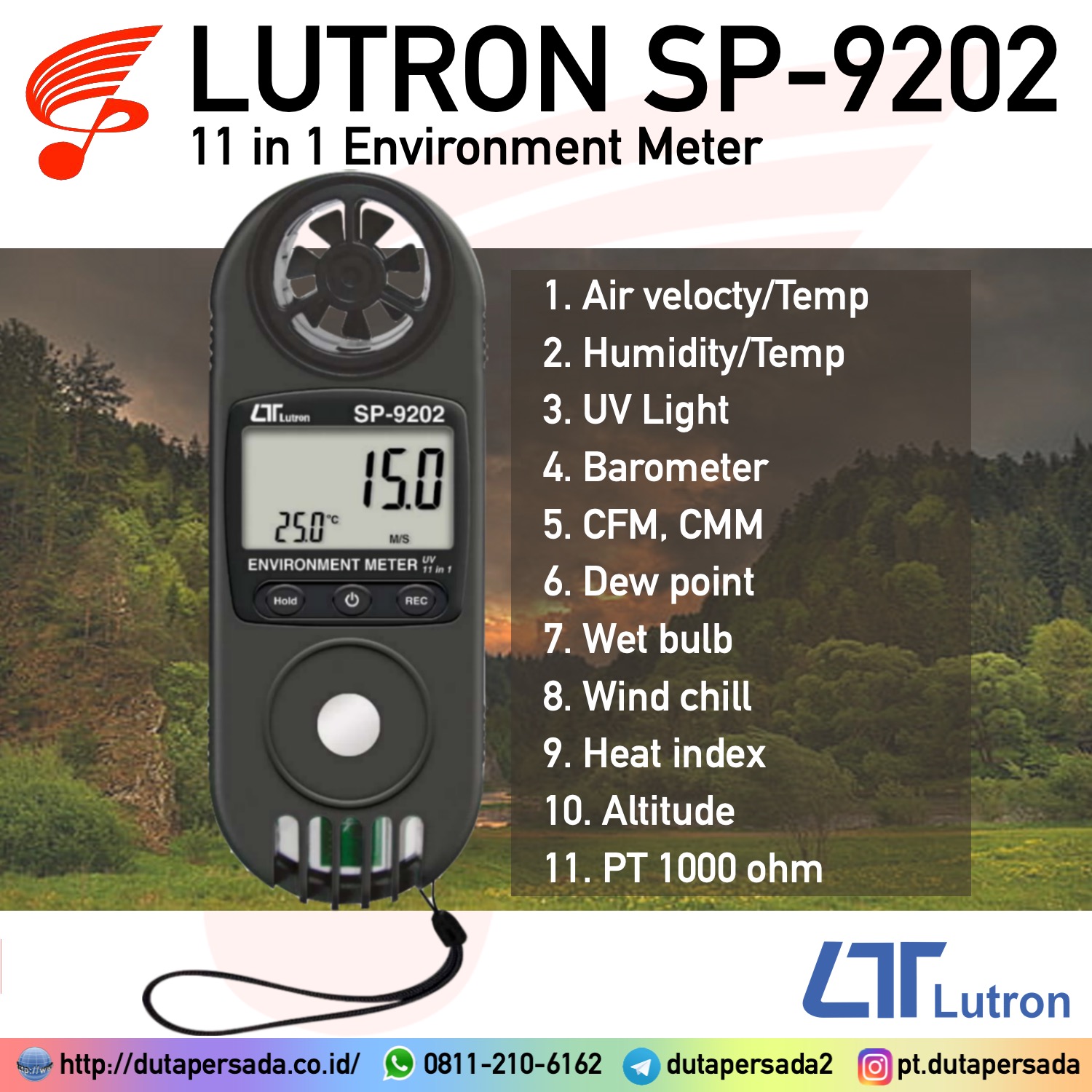

Lutron SP-9202 – 11 in 1 Environment Meter (Anemometer, Humidity meter, Barometer UV Light , Altitude, Pt 1000 Temp.)
5 in stock
The SP-9202 Environment Meter provides accurate and reliable measurements for air velocity, humidity, temperature, barometric pressure, UV light, altitude, dew point, wet bulb, wind chill, heat index, and optional Pt 1000 temperature, making it an essential tool for various industrial, environmental, and HVAC applications.
Status Barang: Preorder (8 minggu)
Kondisi: Baru
Minimal Order: 1 pcs
$179.65
5 in stock
Sport/Weather meter
11 in 1 ENVIRONMENT METER
Model: SP-9202
OVERVIEW:
The SP-9202 Environment Meter provides accurate and reliable measurements for air velocity, humidity, temperature, barometric pressure, UV light, altitude, dew point, wet bulb, wind chill, heat index, and optional Pt 1000 temperature, making it an essential tool for various industrial, environmental, and HVAC applications.
MEASUREMENT:
1. Air velocty/Temp
2. Humidity/Temp
3. UV Light
4. Barometer
5. CFM, CMM
6. Dew point
7. Wet bulb
8. Wind chill
9. Heat index
10. Altitude
11. PT 1000 ohm Temp. (optional)
FEATURES:
◆ 11 in 1 professional environment instruments
◆ Tiny bone shape with light weight and small size case design are suitable for handling with one hand
◆ Wristlet design provides extra protection to the instrument especially for user one hand operation
◆ Low-friction ball bearing mounted wheel design provides high accuracy at high and low air velocity
◆ UV sensor structure The exclusive UV photo sensor with the cosine correction filter
◆ High precision humidity sensor with fast response time
◆ Build in baro sensor for the atomsphere value and altitude measurement precisely
◆ Optional PT 1000 ohm Temp. probe for the prcision Temp. measurement
◆ Built- in microprocessor circuit assures excellent performance and accuracy
◆ Concise and compact buttons arrangement, easy operation
◆ Memorize the maximum and minimum value with recall
◆ Hold function to freeze the current reading value
EACH UNIT INCLUDES WITH:
◆ Instruction Manual
OPTIONAL ACCESSORIES:
◆ PT 1000 ohm Temp. probe, TP-1000
| Weight | 0.3 kg |
|---|
GENERAL SPECIFICATIONS
|
Display |
8 mm LCD display |
|
Measurement |
1. Air velocty/Temp. 2. Humidity/Temp. 3. UV Light 5. CFM, CMM |
|
Operating Humidity |
Max. 80% RH. |
|
Operating Temperature |
0 to 50 °C ( 32 to 122 °F ) |
|
Over Input Display |
Indication of “- – – – ” |
|
Power Supply |
CR 2032 DC 3V battery |
|
Power Consumption |
Approx. DC 5 mA |
|
Weight |
160g (battery included) |
|
Dimension |
HWD 120 x 45 x 20 mm (4.7 x 1.8 x 1.2 inch). |
|
Standard Accessory |
Instruction Manual |
|
Optional Accessories |
Pt 1000 ohm Temp. probe, TP-1000 |
ELECTRICAL SPECIFICATION ( 23 ± 5°C )
Air velocity
|
Unit |
Range |
Resolution |
Accuracy |
|
ft/min |
80 to 3937 ft/min |
1 ft/min |
≦ 20 m/s : ± 3% F.S. > 20 m/s : ± 4% F.S. |
|
m/s |
0.4 to 20.0 m/s |
0.1 m/s |
|
|
km/h |
1.4 to 72.0 km/h |
0.1 km/h |
|
|
MPH |
0.9 to 44.7 mile/h |
0.1 MPH |
|
|
knots |
0.8 to 38.8 knots |
0.1 knots |
|
|
Temp. |
0 to 50 °C |
0.1 °C |
|
|
32 to 122 °F |
0.1 °F |
||
|
Remark : |
|||
Humidity/Temp.
|
Unit |
Range |
Resolution |
Accuracy |
|
% RH |
10 to 95 %RH |
0.1 %RH |
< 70% RH : ± 4 %RH ≧70% RH : ± ( 4 %rdg +1.2 %RH) |
|
Temp. |
0 to 50 °C |
0.1 °C |
± 1.2 °C |
|
32 to 122 °F |
0.1 °F |
± 2.5 °F |
Barometric pressure ( Barometer )
|
Unit |
Range |
Resolution |
Accuracy |
|
hPa |
10.0 to 999.9 1000 to 1100 |
0.1 hpa 1 hpa |
± 1.5 hPa ± 2 hPa |
|
mmHg |
7.5 to 825.0 |
0.1 mmHg |
± 1.2 mmHg |
|
inHg |
0.29 to 32.48 |
0.01 inHg |
± 0.05 inHg |
UV Light * auto range * UVA light measurement
|
Range |
Resolution |
Accuracy |
|
0 to 1999 uW/cm^2 |
1 uW/cm^2 |
± ( 4 % FS + 2 dgt ) FS : full scale |
|
2 to 20.00 mW/cm^2 |
0.01 mW/cm^2 |
|
|
Remark
|
||
Pt 1000 ohm Thermometer ( optional probe )
|
Unit |
Range |
Resolution |
Accuracy |
|
°C |
-10.0 to 100.0 °C |
0.1 °C |
± 1.2 °C |
|
°F |
14.0 to 212.0 °F |
0.1 °F |
± 2.5 °F |
Air flow
|
Unit |
Range |
Resolution |
|
CMM |
0.024 to 36000 |
0.001/0.01/0.1/1 |
|
CFM |
0.847 to 1271300 |
0.001/0.01/0.1/1/10 (x10)/100 (x100) |
Dew point Temp.
|
Unit |
Range |
Resolution |
Remark |
|
°C |
-25.3 to 49.0 °C |
0.1 °C |
* Calculate from the humidity/Temp. value |
|
°F |
-13.5 to 120.0 °F |
0.1 °F |
Wet bulb Temp.
|
Unit |
Range |
Resolution |
Remark |
|
°C |
-5.4 to 49.0 °C |
0.1 °C |
* Calculate from the humidity/Temp. value |
|
°F |
22.2 to 120 °F |
0.1 °F |
Heat index
|
Unit |
Range |
Resolution |
Accuracy |
|
°C |
0 to 100.0 °C |
0.1 °C |
± 2.0 °C |
|
°F |
32 to 212 °F |
0.1 °F |
± 3.6 °F |
Effects of the heat index (shade values)
|
Celsius |
Fahrenheit |
Notes |
|
27– 32 °C |
80– 90 °F |
Caution : |
|
32– 41 °C |
90– 105 °F |
Extreme caution : |
|
41– 54 °C |
105– 130 °F |
Danger : |
|
over 54 °C |
over 130 °F |
Extremedanger: Heatstrokeisimminent |
Wind chill
|
Unit |
Range |
Resolution |
Accuracy |
|
°C |
-0.4 to 44.2 °C |
0.1 °C |
± 2.0 °C |
|
°F |
15.0 to 112.0 °F |
0.1 °F |
± 3.6 °F |
Altitude
|
Unit |
Range |
Resolution |
Accuracy |
|
m |
-2000 to 9000 m |
1m |
± 15 m |
|
ft |
-6000 to 30000 ft |
1 ft |
± 50 ft |
