Anemometer

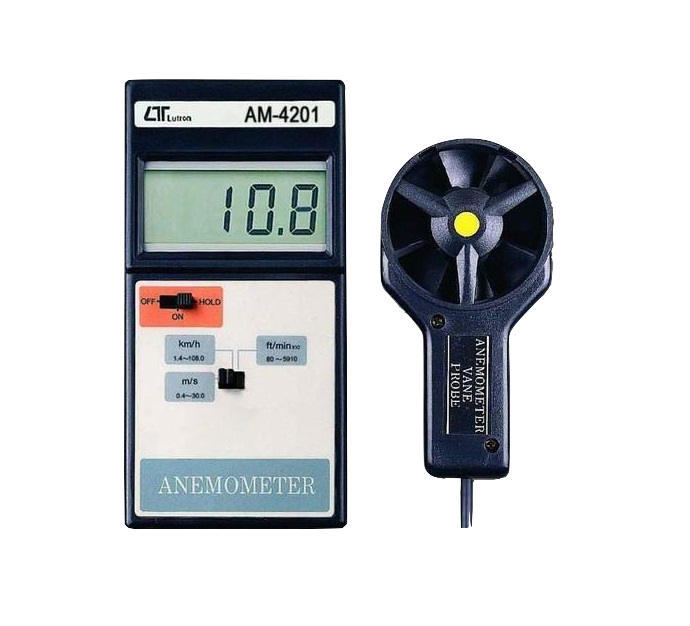

Lutron AM-4201 – Digital Anemometer
Availability:
1 in stock
The AM-4201 Digital Anemometer provides accurate and reliable measurements of air velocity, making it an essential tool for various applications including HVAC systems, environmental monitoring, and wind speed measurement.
Status Barang: Ready
Kondisi: Baru
Minimal Order: 1 pcs
$142.92
1 in stock
DIGITAL ANEMOMETER
Model : AM-4201
OVERVIEW:
The AM-4201 Digital Anemometer provides accurate and reliable measurements of air velocity, making it an essential tool for various applications including HVAC systems, environmental monitoring, and wind speed measurement.
FEATURES:
◆ Range: 0.4-30.0 m/s
◆ Resolution: 0.1 m/s
◆ Accuracy: ± (2 % + 1 d)
◆ Multi-functions for air flow measurement: m/s, km/h, ft/min, knots.
◆ Low-friction ball-bearing design resulting in accuracy at both high and low velocities.
◆ Conventional twisted vane arms, always a source of unreliability have been eliminated.
◆ DATA HOLD.
◆ Compact housing cabinate.
◆ Wide applications: use this anemometer to check air conditioning & heating systems, measure air velocities, wind speeds, temperature…etc.
EACH UNIT INCLUDES WITH:
◆ Instruction Manual
◆ Sensor probe
◆ Carrying case
| Weight | 2 kg |
|---|
GENERAL SPECIFICATIONS | |||
Display | 18mm (0.7″) LCD (Liquid Crystal Display), 3 1/2 digits. | Temp. Sensor * AM4202 only | Naked-bead type k thermocouple probe. |
Measurement | m/s (meters per second), | Power Supply | DC 9V 006P, MN1604(PP3) battery (Heavy Duty Type) or equivalent. |
Power Consumption | Approx. DC 9 mA. | ||
Weight | 325 g/0.72 LB (including battery | ||
Operating Temp. | 0 °C to 50 °C (32 °F to 122 °F). | Dimension | Instrument : Sensor Head : |
Operating Humidity | Less than 80 % RH. | ||
Air Velocity Sensor Structure | Conventional twisted vane arms and low-friction ball-bearing design. | ||
Standard Accessories | Instruction Manual………..1 PC. Sensor probe………………1 PC. Carrying case………………1 PC. | ||
).
ELECTRICAL SPECIFICATION ( 23 ± 5 °C ) | |||
A. Air velocity | |||
Measurement | Range | Resolution | Accuracy |
m/s | 0.4-30.0 m/s | 0.1 m/s | ± (2 % + 1 d) |
km/h | 1.4-108.0 km/h | 0.1 km/h | ± (2 % + 3 d) |
ft/min. | 80-5910 ft/min. | 10 ft/min. | ± (2 % + 2 d) |
knots | 0.8-58.3 knots | 0.1 knots | ± (2 % + 2 d) |
Note: m/s – meters per second km/h – kilometers per hour ft/min – feet/per minute knots – nautical miles per hour | |||
