Solar Field Analyzers
Seaward Solar Survey 200R – Irradiance Meters SS200R
Availability:
2 in stock

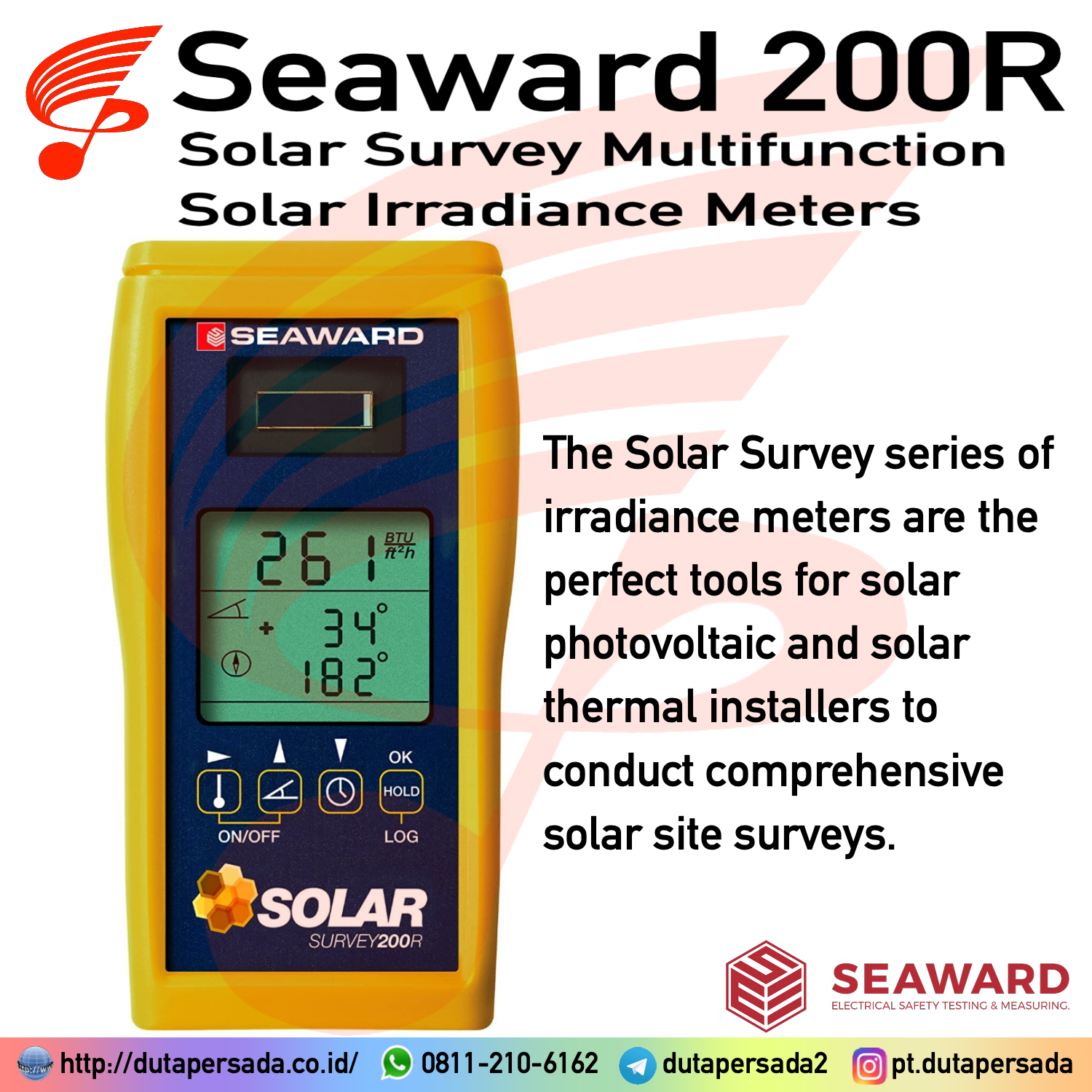

The Solar Survey series of irradiance meters are the perfect tools for solar photovoltaic and solar thermal installers to conduct comprehensive solar site surveys.

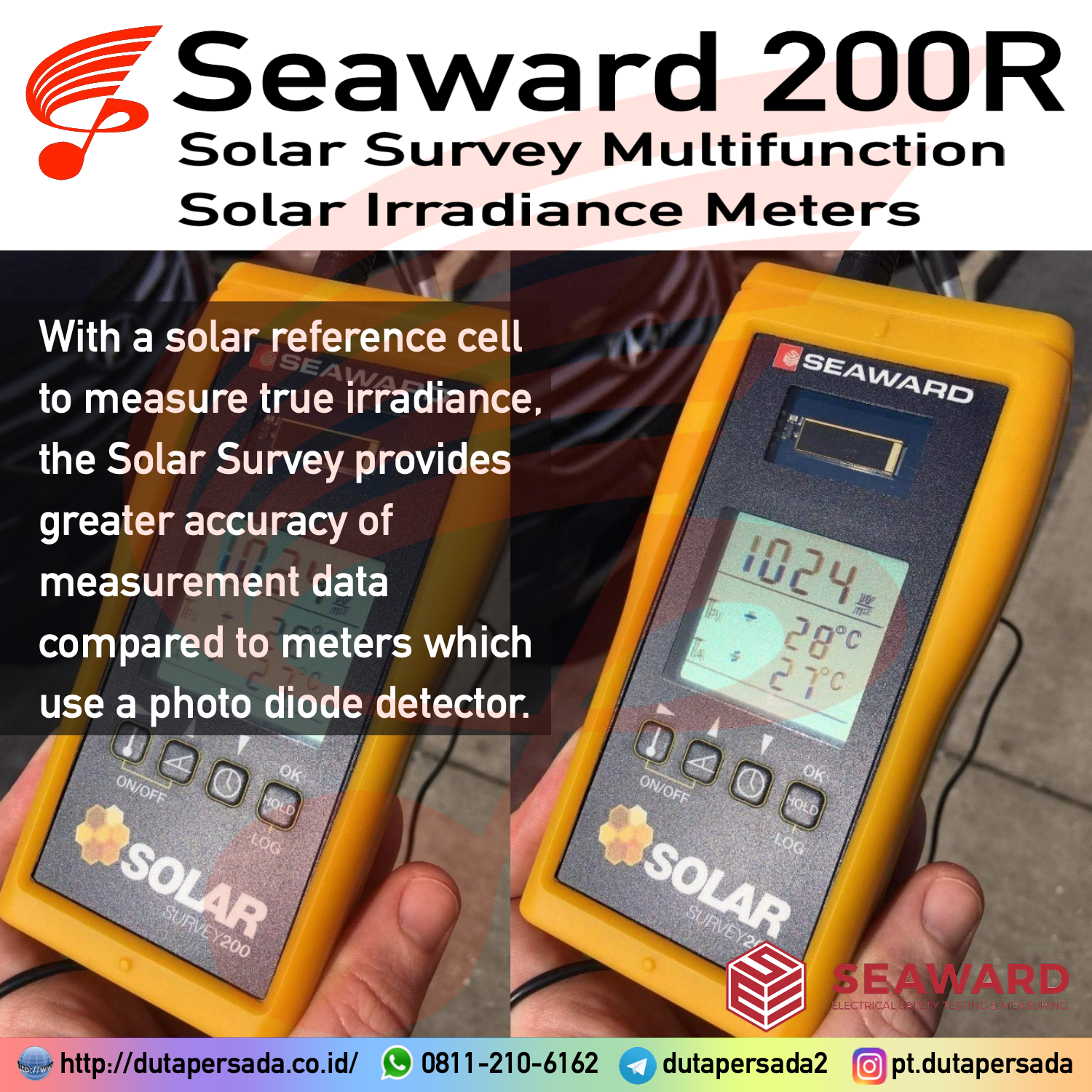

With a solar reference cell to measure true irradiance, the Solar Survey provides greater accuracy of measurement data compared to meters which use a photo diode detector.
Solar Survey 200R
Part Number: 396A914
OVERVIEW:
The Solar Survey series of irradiance meters are the perfect tools for solar photovoltaic and solar thermal installers to conduct comprehensive solar site surveys.
With a solar reference cell to measure true irradiance, the Solar Survey provides greater accuracy of measurement data compared to meters which use a photo diode detector.
FEATURES:
◆ Suitable for both photovoltaic and solar thermal installations
◆ Measures irradiance as required by IEC 62446
◆ Built-in compass and inclinometer measure roof orientation and pitch
◆ Supplied with suction mount temperature probe for hands-free ambient and surface temperature measurement
◆ Seaward SolarlinkTM for wireless connectivity with the PV150/200 testers (sold separately)
◆ Built-in data logger and USB interface
◆ Rugged, robust and handheld
◆ Optional mounting bracket for accurate and easy measurements

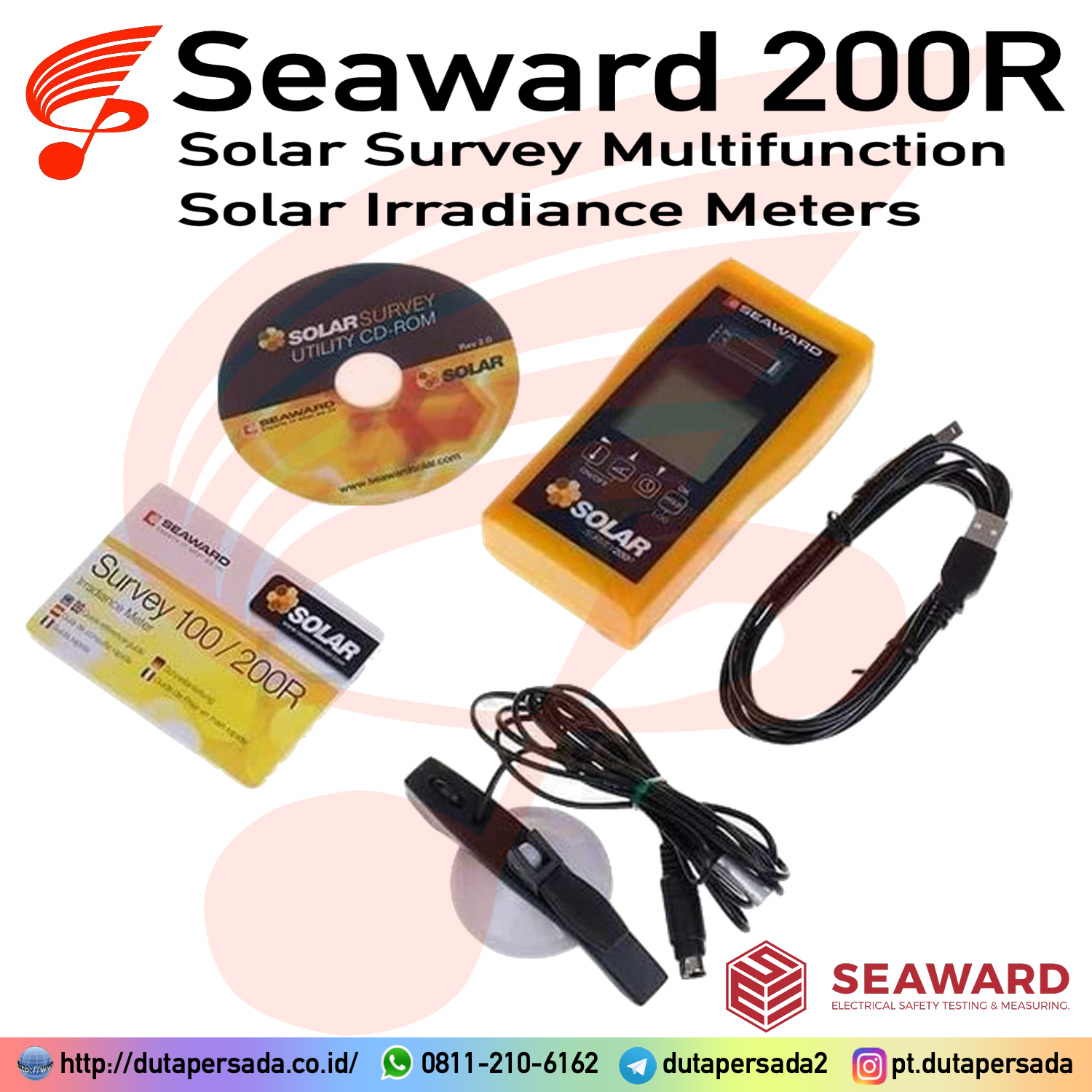

EACH UNIT INCLUDES WITH:
◆ Suction mount PV module
◆ Ambient temperature sensor
◆ USB cable
◆ Calibration certificate
◆ Quick Start Guide
| Weight | 0.5 kg |
|---|
| Irradiance | |
|---|---|
| Display Range | 0 – 1500 W/m-2 or 30 – 500 BTU/hr-ft2 |
| Measurement Range | 100 – 1250 W/m-2 or 30 – 400 BTU/hr-ft2 |
| Resolution | 1W/m2 / 1 BTU/hr-ft22 |
| Compass Bearing | |
|---|---|
| Display Range | 0° to 360° |
| Measurement Ranges | 0° to 360° |
| Resolution | 1° |
| Datalogging and connectivity | |
|---|---|
| Datasets | 5000 |
| Sample Rate | 1 to 60 minutes (user definable) |
| Datalogging | Download utility software included Compatible with SolarCert Elements software (version 1.1) |
| Connectivity | USB download to PC Wireless ‘Solarlink™’ to PV150/PV200 (range c. 30m / 100 ft) |
| Temperature | |
|---|---|
| Display Range | -30°C to +125°C |
| Measurement Ranges | -30°C to +125°C |
| Resolution | 1° |
| Inclinometer | |
|---|---|
| Display Range | 0° to 90° |
| Measurement Ranges | 0° to 90° |
| Resolution | 1° |
| Optional accessories and spare parts | |
|---|---|
| Suction mount PV module temperature sensor | 396A980 |
| Mounting bracket for Solar Survey 100/200R | 396A979 |
| Additional Information | |
|---|---|
| Display | Default Spec ValueCustom LCD |
| Power Supply | 2AA Alkaline Batteries |
| Battery Life | >20,000 Readings |
| Auto power down | After 2 minutes |
| Frequency | 433MHz |
| Supplied with calibration certificate | |
| Solar Survey 100 Part No: | 396A910 |
| Solar Survey 200R Part No | 396A914 (433MHz) |
