PV150+ Complete Kit
The NEW PV150+ allows electrical safety and performance verification of modern photovoltaic installations.
This upgraded version of the popular PV150 has been designed to better support the testing of PV modules
with recent technology advances
Status Barang: Preorder (6 Minggu)
Kondisi: Baru
Minimal Order: 1 pcs
Seaward PV150+ Complete Test Kit
Part Number: 388A931
OVERVIEW:
The PV150+ is an upgraded version of the popular PV150, designed to better support the testing of PV modules with recent technology advances and associated higher efficiencies.
Combines ground continuity, DC operating power and operating current test functions. It can also test insulation resistance, open circuit voltage and short circuit current at the push of a button.
KEY FEATURES:
◆ Ground (earth) continuity measurement with test lead null for long test-leads
◆ PV string open circuit voltage measurement up to 1000V DC with polarity indication
◆ PV string short circuit current measurement up to 15A DC
◆ PV array insulation test at 250/500/1000V
◆ Tests individual PV modules or strings

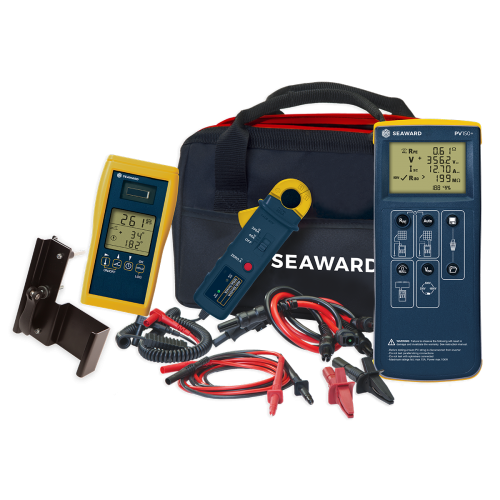

EACH UNIT INCLUDES WITH:
◆ PV150+
◆ 2x MC4 test lead adaptors
◆ 2x Combiner box test probes and detachable alligator clips (MC4)
◆ AC/DC current clamp
◆ Solar Survey 200R irradiance meter and temperature probe
◆ Solar Survey 200R mounting bracket
◆ Rugged carry bag
◆ Quick Start Guide
◆ UKAS Calibration Certificate
◆ SolarCert PC Software
| Weight | 6 kg |
|---|
| Open Circuit Voltage Measurement (PV Terminals) | |
|---|---|
| Display Range | 0.0V DC – 1000V DC |
| Measuring Range | 5.0V DC- 1000V DC |
| Resolution | 0.1V DC maximum |
| Accuracy | ± (0.5 % + 2 digits) |
| Enunciators | DC voltage polarity correct or reversed |
| Earth Continuity Resistance Measurement (4mm Terminals) | |
|---|---|
| Test Voltage Open Circuit | >4V DC, nominal |
| Test Current into | 2 Ω >200mA |
| Display Range | 0.00Ω – 199Ω |
| Measuring Range (EN 61557-4) | 0.05Ω – 199Ω |
| Resolution | 0.01Ω maximum |
| Accuracy | ± (2% + 5 digits) |
| Test Leads Zero | Zero up to 10Ω, by zero button |
| Visible Warning | ≥30V AC or DC at inputs |
| Circuitry Protection | Test inhibited if ≥30V AC or DC at inputs |
| Repeat tests as per IEC61557-4 | Approx. 4000 1 second test |
| Rpe Voltage Measurement (4mm Terminals) | |
|---|---|
| Display Range | 30V – 440V AC/DC |
| Voltage Measuring Range | 30V – 440V DC |
| 30V – 440V AC 50-60Hz | |
| Resolution | 1V |
| Accuracy | ± (5% + 2 digits) |
| DC Operating Power (via AC/DC Current Clamp and PV Terminals) | |
|---|---|
| Display Range | 0.00kW – 40kW |
| Measuring Range | 0.50kW – 40kW |
| Resolution | 0.01kW |
| Accuracy | ± (5% + 5 digits) |
| Connectivity | |
|---|---|
| USB download to PC (CSV format) | |
| Wireless “Solarlink TM” to Survey 200R (range ~30m/100ft) | |
| Short Circuit Current Measurement (PV Terminals) | |
|---|---|
| Display Range | 0.00A DC – 15.00A DC |
| Measuring Range | 0.50A DC – 15.00A DC |
| Maximum Power | 10kW |
| Resolution | 0.01A DC maximum |
| Accuracy | ± (1% + 2 digits) |
| Insulation Resistance (Auto Test Sequence, PV Terminals and Red 4mm Terminal) | |
|---|---|
| Test Voltage Open Circuit | 250V, 500V, 1000V (as per IEC61557-2) |
| Test Voltage Specification | -0% +20% (open circuit) |
| Test Voltage @ 1mA | >1mA into UN x (1000Ω/V) |
| Test Current Short Circuit | <2mA |
| Display Range | 0.05MΩ – 199MΩ |
| Measuring Range (EN 61557-2) | 0.05MΩ – 199MΩ |
| Resolution | 0.01MΩ maximum |
| Accuracy | 0.05MΩ – 100MΩ ± (5% + 5 digits) |
| 101MΩ – 199MΩ ± (10% + 5 digits) | |
| Visible Warning | ≥ 30V AC or DC at inputs |
| Circuitry Protection | Test inhibited if ≥ 30V AC or DC at inputs |
| Repeat tests as per IEC61557-4 | Approx. 3000 1 second tests |
| Operating Current (via AC/DC Current Clamp) | |
|---|---|
| Display Range | 0.1A – 40.0A |
| Current Measuring Range | 0.1A – 40.0A DC |
| 0.1A – 40.0A AC 50-60Hz | |
| Resolution | 0.1A |
| Accuracy | ± (5% + 2 digits) |
| Instrument Dimensions and Weight | |
|---|---|
| Weight | 1.1kg without batteries |
| Dimensions | 26.4×10.7x8cm |
| Display | Custom LCD with backlight |
| Power Source | 6 x 1.5V AA cells |
| Battery life | >1000 test sequences |
| Auto power down | User programmable |
| Onboard memory | Up to 200 complete test datasets |
| Software compatibility | |
|---|---|
| Compatible with SolarCert software (English language only) (Windows) | |
