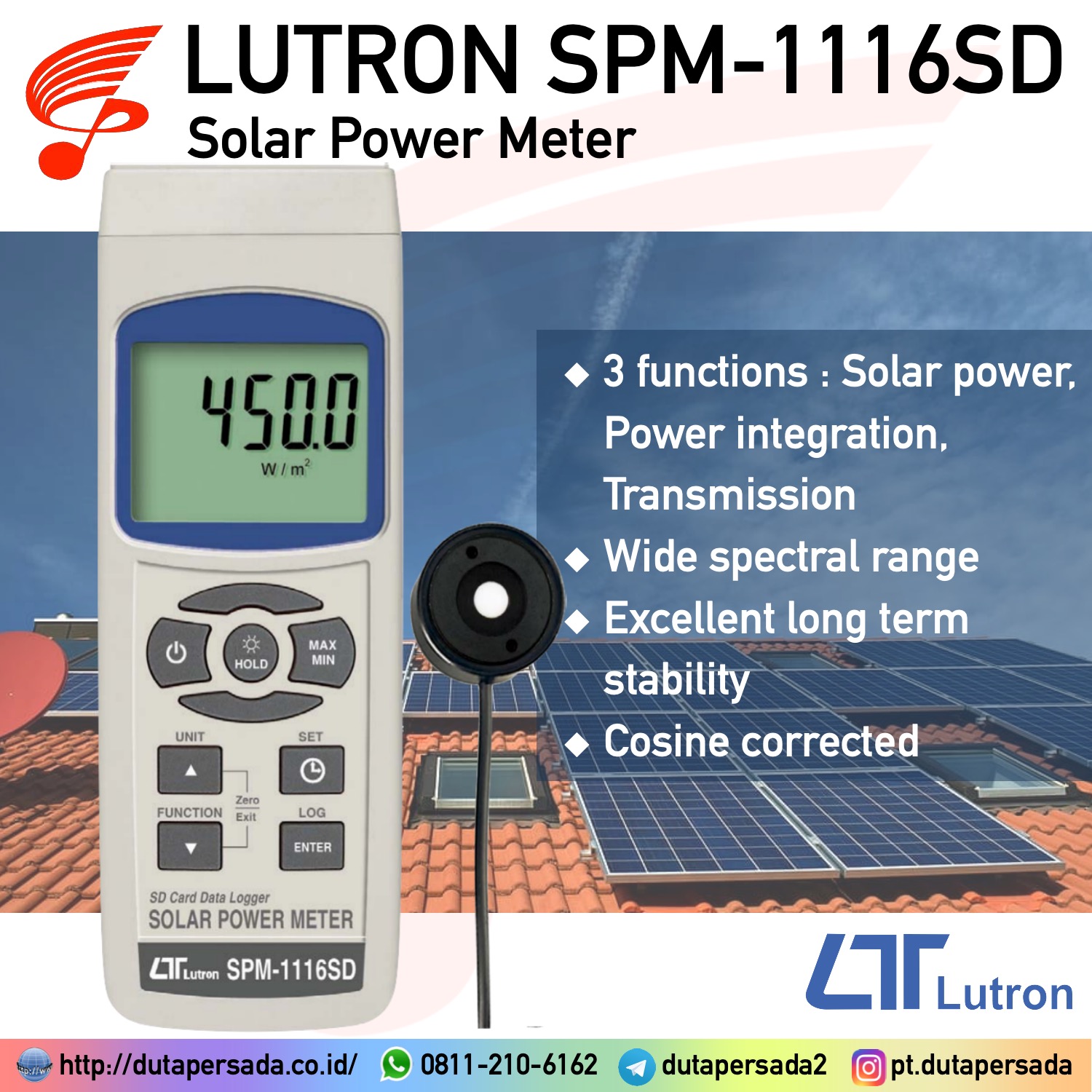

Lutron SPM-1116SD – Solar Power Meter+

Name: Lutron SPM-1116SD - Solar Power Meter+
Brand: Lutron
SKU: L-SPM1116SD
Availability: InStock

Availability:

5 in stock

The SPM-1116SD Solar Power Meter provides accurate and reliable measurements for solar power, power integration, and transmission, making it an essential tool for various environmental and research applications.

Status Barang: Ready

Kondisi: Baru

Minimal Order: 1 pcs

$290.85

5 in stock

SOLAR POWER METER
Model: SPM-1116SD

OVERVIEW:
The SPM-1116SD Solar Power Meter provides accurate and reliable measurements for solar power, power integration, and transmission, making it an essential tool for various environmental and research applications.

FEATURES:
◆ 3 functions : Solar power, Power integration, Transmission
◆ Wide spectral range
◆ Excellent long term stability
◆ Select either W/m^2 or Btu / (ft^2xh) power units
◆ Cosine corrected
◆ Application : Meteorology agriculture solar radiation measurement solar power research physics and optical laboratories solar transmission measurement identify high performance windows
◆ Separate probe, easy for operation of different measurement environment
◆ Both meter and probe are built the Tripod Fix Nut, easy installation
◆ Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds
◆ Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position (location) No. (position 1 to position 99)
◆ Innovation and easy operation
◆ SD card capacity : 1 GB to 16 GB (NOT INCLUDED)
◆ LCD with green light backlight, easy reading
◆ Can default auto power off or manual power off
◆ Data hold, record max. and min. reading
◆ Microcomputer circuit, high accuracy
◆ Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter
◆ RS232/USB PC computer interface

EACH UNIT INCLUDES WITH:
◆ Instruction manual
◆ Solar sensor
◆ Hard Carrying Case

OPTIONAL ACCESSORIES:
◆ SD Card
◆ AC to DC 9V adapter
◆ USB cable, USB-01
◆ RS232 cable, UPCB-02
◆ Data Acquisition software SW-U801-WIN

SKU: L-SPM1116SD Categories: Solar Analyzers, Solar Field Analyzers Brand: Lutron

Weight	1.5 kg

SPECIFICATIONS

Function	Solar power Transmission ( % ) Solar power integration
Spectral response	400 to 1100 nm
Measuring Unit	Solar power: W/m^2, Btu/( ft^2 x h )
	Transmission : %
	Solar power integration : Wh/m^2, Btu/( ft^2 )
Solar power Range/ Solar power Resolution	Range 2000 W/m^2, 634 Btu/( ft^2 x h )
	0.1 W/m^2	<1000 W/m^2
	1 W/m^2	≧1000 W/m^2
	0.1 Btu/( ft^2 x h ) 1 Btu/( ft^2 x h )	< 317 Btu/( ft^2 x h ) ≧ 317 Btu/( ft^2 x h )
Solar power Accuracy	± 10 W/m^2 typically, ± 3 Btu / ( ft^2 x h ) typically, or ± 5% reading, @ whichever is greater in sunlight @ 23 ± 5 °C
Angular accuracy	Cosine corrected <5% for angles < 60°

Circuit	Custom one-chip of microprocessor LSI circuit.
Display	LCD size : 52 mm x 38 mm LCD with green backlight ( ON/OFF ).
Zero Adj.	By push button.
Datalogger Sampling Time Setting range	Auto	1 second to 3600 seconds @ Sampling time can set to 1 second, but memory data may loss.
	Manual	Push the data logger button once will save data one time. @ Set the sampling time to 0 second. @ Manual mode, can also select the 1 to 99 position ( Location ) no.
Memory Card	SD memory card. 1 G to 16 G.
Advanced setting	* Set clock time ( Year/Month/Date, Hour/Minute/ Second ) * Set sampling time * Auto power OFF management * Set beep Sound ON/OFF * Decimal point of SD card setting * SD memory card Format
Data Hold	Freeze the display reading.
Memory Recall	Maximum & Minimum value.
Sampling Time of Display	Approx. 1 second.
Data Output	RS 232/USB PC computer interface. * Connect the optional RS232 cable UPCB-02 will get the RS232 plug. * Connect the optional USB cable USB-01 will get the USB plug.
Operating Temperature	0 to 50 °C.
Operating Humidity	Less than 85% R.H.
Power Supply	* Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
	* ADC 9V adapter input. ( AC/DC power adapter is optional ).
Power Current	Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 6.5 mA.
	When SD card save the data but and LCD Backlight is OFF) : Approx. DC 30 mA.
	* AIf LCD backlight on, the power consumption will increase approx. 16 mA.
Weight	346 g/0.76 LB.
Dimension	Main instrument : 182 x 73 x 47.5 mm (7.1 x 2.9 x 1.9 inch)
	Sensor probe : 38 mm DIA. x 25 mm.
Standard Accessories Included	* Instruction manual…………………………1 PC * Solar sensor………………………….. 1 PC * Hard carrying case, CA-06………………..1 PC
Optional Accessories	* SD Card * AC to DC 9V adapter. * USB cable, USB-01. * RS232 cable, UPCB-02. * Data Acquisition software, SW-U801-WIN, SW-E802
