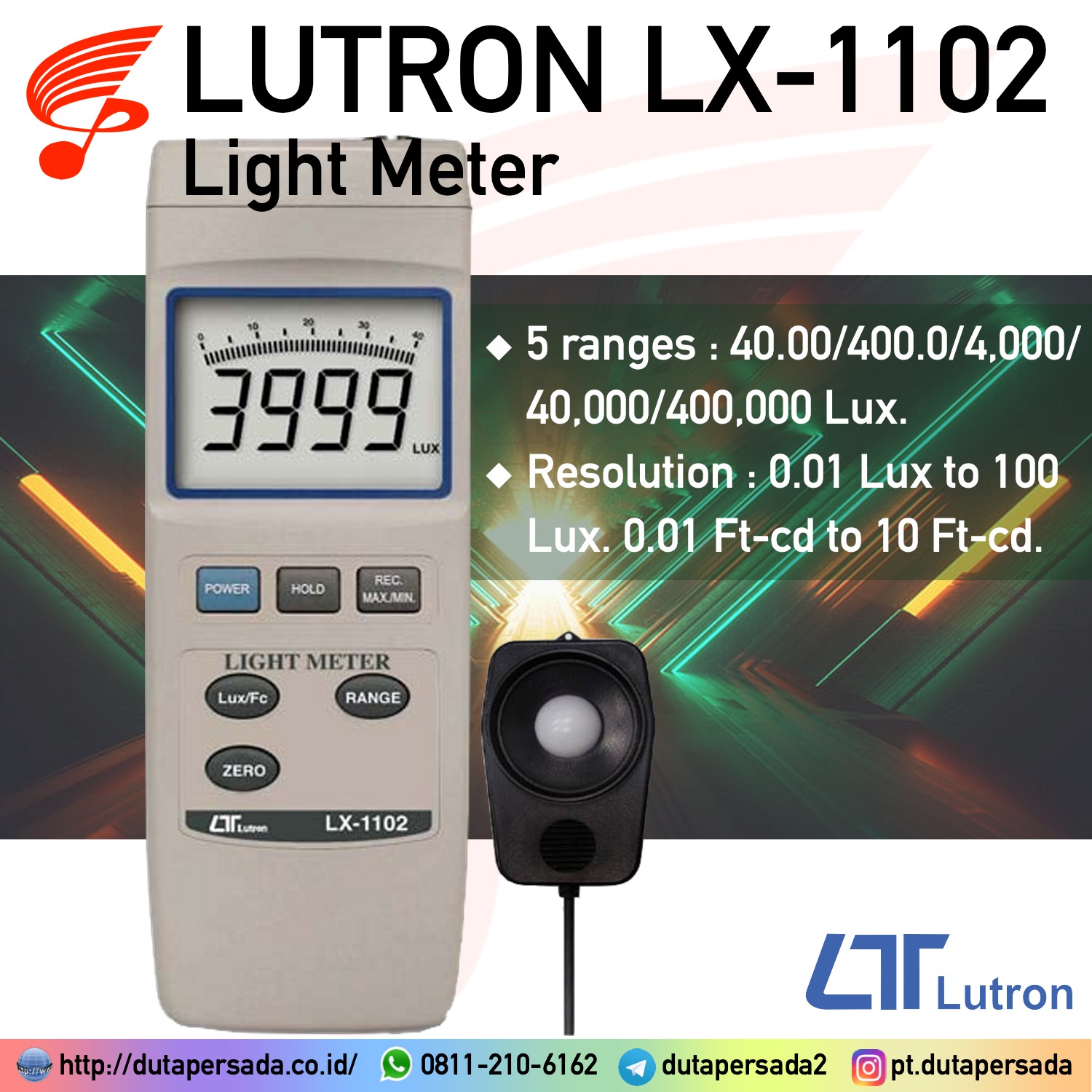

Lutron LX-1102 – Light / Lux Meter
5 in stock
The LX-1102 Light Meter provides accurate and reliable measurements of light intensity in Lux and Foot-candles, making it an essential tool for various industrial, environmental, and photographic applications.
Status Barang: Preorder (8 minggu)
Kondisi: Baru
Minimal Order: 1 pcs
$85.16
5 in stock
LIGHT METER
Model: LX-1102
OVERVIEW:
The LX-1102 Light Meter provides accurate and reliable measurements of light intensity in Lux and Foot-candles, making it an essential tool for various industrial, environmental, and photographic applications.
FEATURES:
◆ 5 ranges : 40.00/400.0/4,000/40,000/400,000 Lux.
◆ Resolution : 0.01 Lux to 100 Lux. 0.01 Ft-cd to 10 Ft-cd.
◆ Sensor used the exclusive photo diode amp; color correction filter, spectrum meet C.I.E. photopic.
◆ Sensor cosine correction factor meet standard.
◆ Separate Light Sensor allows user to measure the light at an optimum position.
◆ Lux amp; Foot-candle unit selection.
◆ Large LCD display with bar graph.
◆ Water resistance front panel
◆ Zero adjusting button.
◆ Data hold and Peak hold.
◆ Memory function with Recall. Auto
◆ Auto power off or manual power off.
◆ RS-232 computer data output.
EACH UNIT INCLUDES WITH:
◆ Instruction Manual
◆ Light Sensor with protection cover
OPTIONAL ACCESSORIES:
◆ RS232 Cable (UPCB-02)
◆ USB Cable (USB-01)
◆ Application Software (SW-U801-WIN)
◆ Hard Carrying Case (CA-06)
◆ Soft Carrying Case (CA-05A)
| Weight | 0.5 kg |
|---|
|
GENERAL SPECIFICATIONS |
|||
|
Display |
Large LCD dispaly. |
Operating Temperature |
0to50°C(32 to122°F). |
|
Operating Humidity |
Max. 80% RH. |
||
|
Measurement & ranges |
5 ranges : 40.00/400.0 Lux, 4,000/40,000/400,000 Lux, |
||
|
Power Supply |
DC 9V battery. 006P, |
||
|
Unit |
Lux, Foot-candle ( Ft-cd ). |
||
|
Sensor |
The exclusive photo diode & color correction filter, spectrum meet C.I.E. Cosine correction factor meet standard. |
Power Consumption |
Approx. DC 8 mA. |
|
Weight |
220 g/0.48 LB. |
||
|
Dimension |
Main instrument : Sensor probe : |
||
|
Zero Adjustment |
External adjustment by pushing button. |
||
|
Peak Hold |
To hold the peak display. |
||
|
Data Hold |
To freeze the display value. |
||
|
Memory |
Save the max. & min. value with Recall. |
Accessories Included |
Instruction Manual…….1 PC. Light Sensor with protection cover……………………..1 PC. |
|
Over and Under range Indication |
Over range Indicator : “- – – – ” |
||
|
Optional Accessories |
RS232 cable, UPCB-02 |
||
|
Under range Indicator : “_ _ _ _ ” |
Application Software, SW-U801-WIN |
||
|
Power Off |
Auto or manaual power off. |
Hard carryingt case, CA–06 |
|
|
Data Output |
RS-232 serial data output. |
Soft carryingt case, CA–05A |
|
|
ELECTRICAL SPECIFICATIONS ( 2 3± 5 °C ) |
||||
|
Measurement |
Range |
In-range Display |
Resolution |
Accuracy |
|
Lux |
40.00 Lux |
0 – 40.00 Lux |
0.01 Lux |
±(3%rdg+0.5% F.S..) |
|
400.0 Lux |
36.0 – 400.0 Lux |
0.1 Lux |
||
|
4,000 Lux |
360 – 4,000 Lux |
1 Lux |
||
|
40,000 Lux |
3,600 – 40,000 Lux |
10 Lux |
||
|
400,000 Lux |
10,000 – 400,000 Lux |
100 Lux |
< 100,000 Lux : ±(3%rdg+0.5% F.S..) ≧ 100,000 Lux : |
|
|
Foot-candle ( Fc ) |
4.000 Fc |
0 – 3.720 Fc |
0.001 Fc |
±(3%rdg+0.5% F.S..) |
|
40.00 Fc |
3.35 – 37.20 Fc |
0.01 Fc |
||
|
400.0 Fc |
33.5 – 372.0 Fc |
0.1 Fc |
||
|
4,000 Fc |
335 – 3,720 Fc |
1 Fc |
||
|
40,000 Fc |
930 – 37,200 Fc |
10 Fc |
< 9,300 Fc : ±(3%rdg+0.5% F.S..) ≧ 9,300 Fc |
|
|
Note : Accuracy tested by a standard parallel light tungsten lamp of 2856 K degree temperature. |
||||
