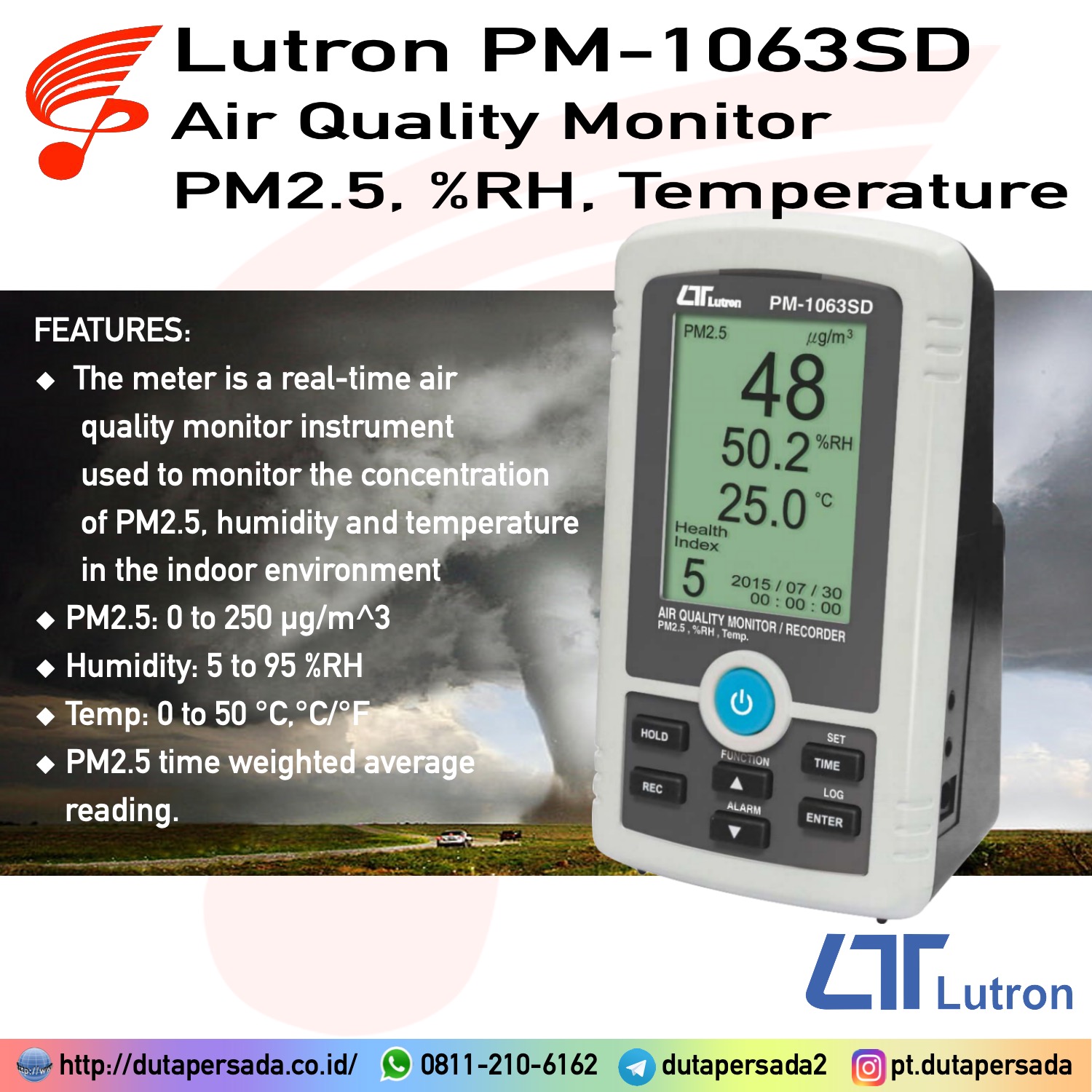

Lutron PM-1063SD – Air Quality Monitor / Particulate Matter (PM2.5, %RH, Temp.)
1 in stock
The PM-1063SD Air Quality Monitor provides accurate and reliable measurements of PM2.5, humidity, and temperature, with real-time data logging capabilities, making it an essential tool for various industrial and environmental applications.
Status Barang: Preorder (8 minggu)
Kondisi: Baru
Minimal Order: 1 pcs
$340.01
1 in stock
AIR QUALITY MONITOR/RECORDER (PM2.5, %RH, Temp.)
Model: PM-1063SD
OVERVIEW: Monitoring air pollutant source from dust, petrochemical industry, steel-making plant, thermal power plant, restaurant, smoke, burning plants, driving automobiles. The meter is a real-time air quality monitor instrument used to monitor the concentration of PM2.5, humidity and temperature in the indoor environment. What is PM? PM is short for “particulate matter”. It refers to particles found in the air, including dust, dirt, soot, smoke, and liquid droplets. Particles can be suspended in the air for long periods of time. Many man-made and natural sources emit PM directly or emit other pollutants that react in the atmosphere to form PM. These solid and liquid particles come in a wide range of sizes. Some particles are large or dark enough to be seen – like soot or smoke. Others are so small that individually, they can only be detected with an electron microscope.
FEATURES:
◆ PM2.5: 0 to 250 μg/m^3
◆ Humidity: 5 to 95 %RH
◆ Temp: 0 to 50 °C,°C/°F
◆ Built-in clock and Calendar, real time data record with SD memory card, sampling time can be set from 1 second to 3600 seconds. Just slot the SD card into the computer, all the measured values with the time information ( year, month, data, hour, minute, second ) can be downloaded to the Excel directly
EACH UNIT INCLUDES WITH:
◆ Instruction manual
◆ AC to DC 9V power adapter
OPTIONAL ACCESSORIES:
◆ SD Card
◆ USB Cable, USB-01
◆ RS232 Cable, UPCB-02
◆ Data Acquisition Software, SW-U801-WIN
| Weight | 1 kg |
|---|
SPECIFICATIONS
|
Circuit |
Custom single-chip microprocessor LSI circuit. |
|
Display |
LCD Size: 2.18 X 2.87″ (55.4 X 72.9 mm). Dot matrix backlit LCD (128 X 240 pixels). |
|
Measurement |
* PM2.5(Particulate matter). * Humidity. |
|
Over-range |
* LCD display show ” OL “.. (overleap the decimal point). |
|
Data Hold |
Freezes displayed reading. |
|
Memory Recall |
Maximum & Minimum value. |
|
Data Recording |
SD memory card ( 1 GB to 32 GB ). |
|
Sampling Time |
Approx. 1 second. |
|
Datalogger |
|
|
Data Output USB/RS232 |
* Computer interface. |
|
Operating temperature |
0 to 50°C ( 32 to 122°F ). |
|
Operating humidity |
Less than 80% R.H.. |
|
Power Supply |
* DC1.5V,AA(UM-3)BatteryX6PCs (Alkaline or heavy-duty battery). * AC to DC 9V power adapter.. |
|
Power consumption |
DC 122 mA approximately. |
|
Weight |
362 g/0.8 LB. |
|
Dimension |
164 x 93 x 72 mm ( 6.5 x 3.7 x 2.8 inch ). |
|
Accessories included |
* Instruction manual……………………………………………………. 1 PC |
|
Optional Accessories |
* SDmemorycard(4GB). |
Electrical SPECIFICATIONS (23 ± 5 °C)
PM2.5(Particulate matter)
|
Range |
Resolution |
Accuracy |
|
0 to 250 μ g/m^3 |
1 μ g/m^3 |
± (10%reading± 20μ g/m^3) |
Humidity
|
Range |
Resolution |
Accuracy |
|
5 % to 95 %RH |
0.1 %RH |
<70%RH:± 3%RH |
Temperature
|
Range |
Resolution |
Accuracy |
|
0.0 °C to 50.0 °C |
0.1 °C |
± 0.8 °C |
|
32.0 °F to 122.0 °F |
0.1 °F |
± 1.5 °F |
