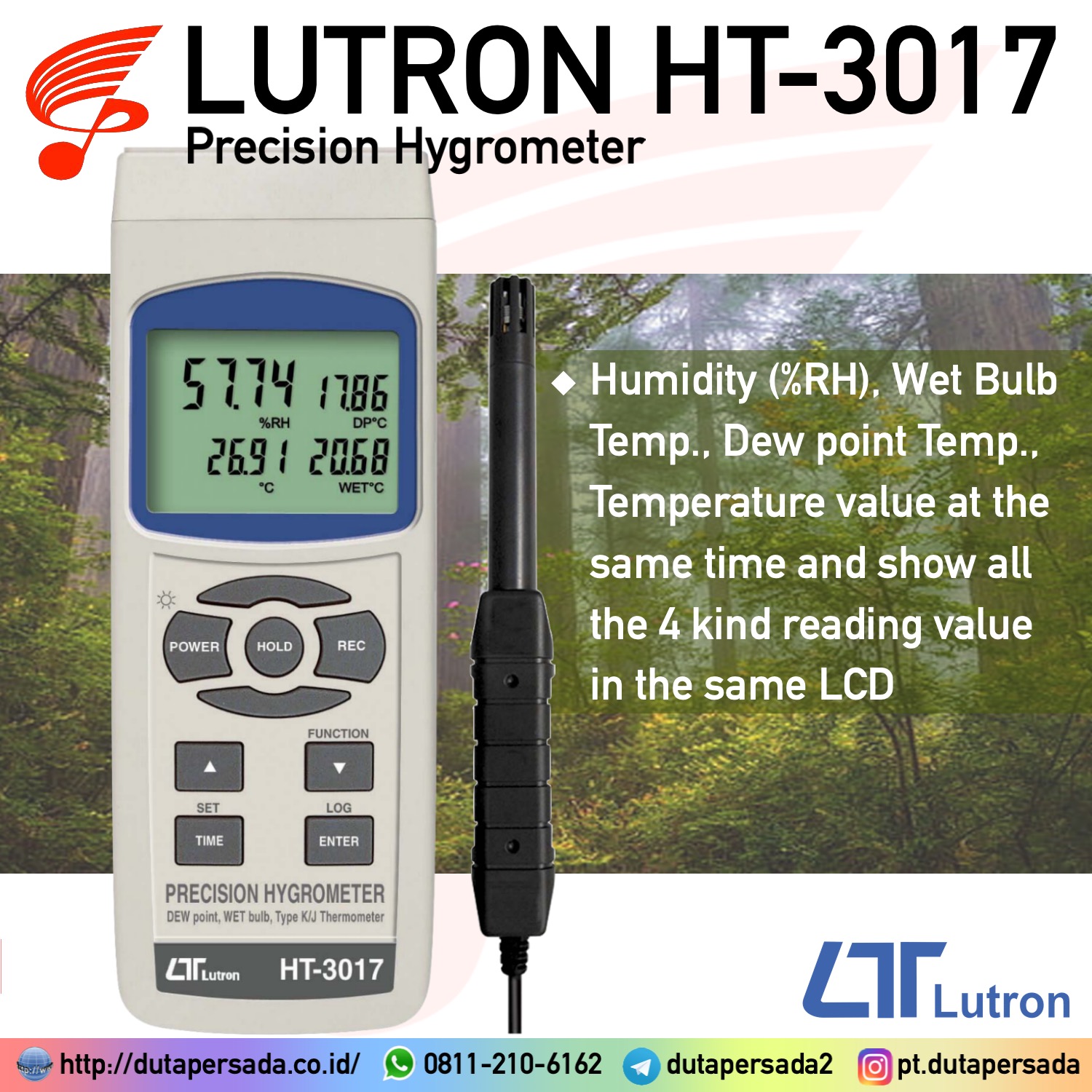

Lutron HT-3017 – Precision Hygrometer
3 in stock
The HT-3017 Precision Hygrometer provides accurate and reliable measurements of humidity, wet bulb temperature, dew point, and temperature, with optional Type K/J thermocouple inputs, making it an essential tool for various industrial, environmental, and HVAC applications.
Status Barang: Preorder (8 minggu)
Kondisi: Baru
Minimal Order: 1 pcs
$190.32
3 in stock
PRECISION HYGROMETER
Model: HT-3017
OVERVIEW:
The HT-3017 Precision Hygrometer provides accurate and reliable measurements of humidity, wet bulb temperature, dew point, and temperature, with optional Type K/J thermocouple inputs, making it an essential tool for various industrial, environmental, and HVAC applications.
FEATURES:
◆ High precision hygrometer, measurement.
◆ Humidity (%RH), Wet Bulb Temp., Dew point Temp., Temperature value at the same time and show all the 4 kind reading value in the same LCD.
◆ Humidity, %RH : 10 to 95 %RH.
◆ Type K Thermometer: -100 to 1300 C, C/F.
◆ High resolution: Humidity: 0,01 %RH. Temp.: 0,01 C/F.
◆ Data hold, Record (Max., Min.)
◆ Optional type K Temp. probes: TP-01, TP-02A, TP-03, TP-04, TP-05.
◆ RS232/USB computer interface.
EACH UNIT INCLUDES WITH:
◆ Instruction manual
◆ Humidity/Temp. probe
◆ Soft carrying case
OPTIONAL ACCESSORIES:
◆ AC to DC 9V Adapter
◆ USB Power to DC 9V Converter
◆ USB Cable, USB-01
◆ RS232 Cable, UPCB-02
◆ Data Acquisition Software, SW-U801-WIN
| Weight | 1 kg |
|---|
GENERAL SPECIFICATIONS
|
Circuit |
Custom one-chip of microprocessor LSI circuit. |
|
Display |
LCD size : 52 mm x 38 mm |
|
Measurement Unit |
Humidity/Temp. : %RH/°C or °F. Dew point ( Humidity ) : °C or °F. Wet bulb ( Humidity ) : °C or °F. Type K/J thermometer : °C or °F. |
|
Advanced setting |
* Auto power OFF management |
|
Temperature Compensation |
Automatic temp. compensation for the humidity function and the type K/J thermometer. |
|
Data Hold |
Freeze the display reading. |
|
Memory Recall |
Maximum & Minimum value. |
|
Sampling Time of Display |
Approx. 1 second. |
|
Data Output |
RS 232/USB PC computer interface. * Connect the optional RS232 cable UPCB-02 will get the RS232 plug. * Connect the optional USB cable USB-01 will get the USB plug. |
|
Operating Temperature |
0 to 50 °C. |
|
Operating Humidity |
Less than 85% R.H. @ Meter only. |
|
Power Supply |
* Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent. |
|
* ADC 9V adapter input. ( AC/DC power adapter is optional ). |
|
|
Power Current |
Normal operation ( LCD Backlight is OFF) : Approx. DC 3.5 mA. |
|
* AIf LCD backlight on, the power consumption will increase approx. 12 mA. |
|
|
Weight |
489 g/1.08 LB. |
|
Dimension |
177 x 68 x 45 mm (7.0 x 2.7x 1.9 inch) |
|
Accessories Included |
* Instruction manual………………………1 PC |
ELECTRICALSPECIFICATIONS (23±5°C)
Humidity/ Temperature
|
Humidity |
Range |
5 % to 95 % R.H. |
|
|
Resolution |
0.01 % R.H. |
||
|
Accuracy |
± 2% R.H. |
||
|
Temperature |
Range |
0 °C to 50 °C,32 °F to 122 °F. |
|
|
Resolution |
0.01 degree |
||
|
Accuracy |
°C |
± 0.5 °C. |
|
|
°F |
± 1.0 °F. |
||
Dew Point ( Humidity )
|
°C |
Range |
-25.3 °C to 48.9 °C |
|
Resolution |
0.01 °C |
|
|
°F |
Range |
-13.5 °F to 120.1 °F. |
|
Resolution |
0.01 °F. |
|
|
Remark : |
||
Wet bulb ( Humidity )
|
°C |
Range |
-21.6 °C to 50.0 °C |
|
Resolution |
0.01 °C |
|
|
°F |
Range |
-6.9 °F to 122.0 °F. |
|
Resolution |
0.01 °F. |
|
|
Remark : |
||
Type K/J thermometer
|
Sensor Type |
Resolution |
Range |
Accuracy |
|
Type K |
0.1 °C |
-50.0 to 1300.0 °C -50.1 to -100.0 °C |
± (0.2%+0.5°C) ± (0.2%+1°C) |
|
0.1 °F |
-58.0 to 2372.0 °F -58.1 to -148.0 °F |
± (0.2%+1°F) ± (0.2%+1.8°F) |
|
|
Type J |
0.1 °C |
-50.0 to 1200.0 °C -50.1 to -100.0 °C |
± (0.2%+0.5°C) ± (0.2%+1°C) |
|
0.1 °F |
-58.0 to 2192.0 °F -58.1 to -148.0 °F |
± (0.2%+1°F) ± (0.2%+1.8°F) |
