Air Quality Meter

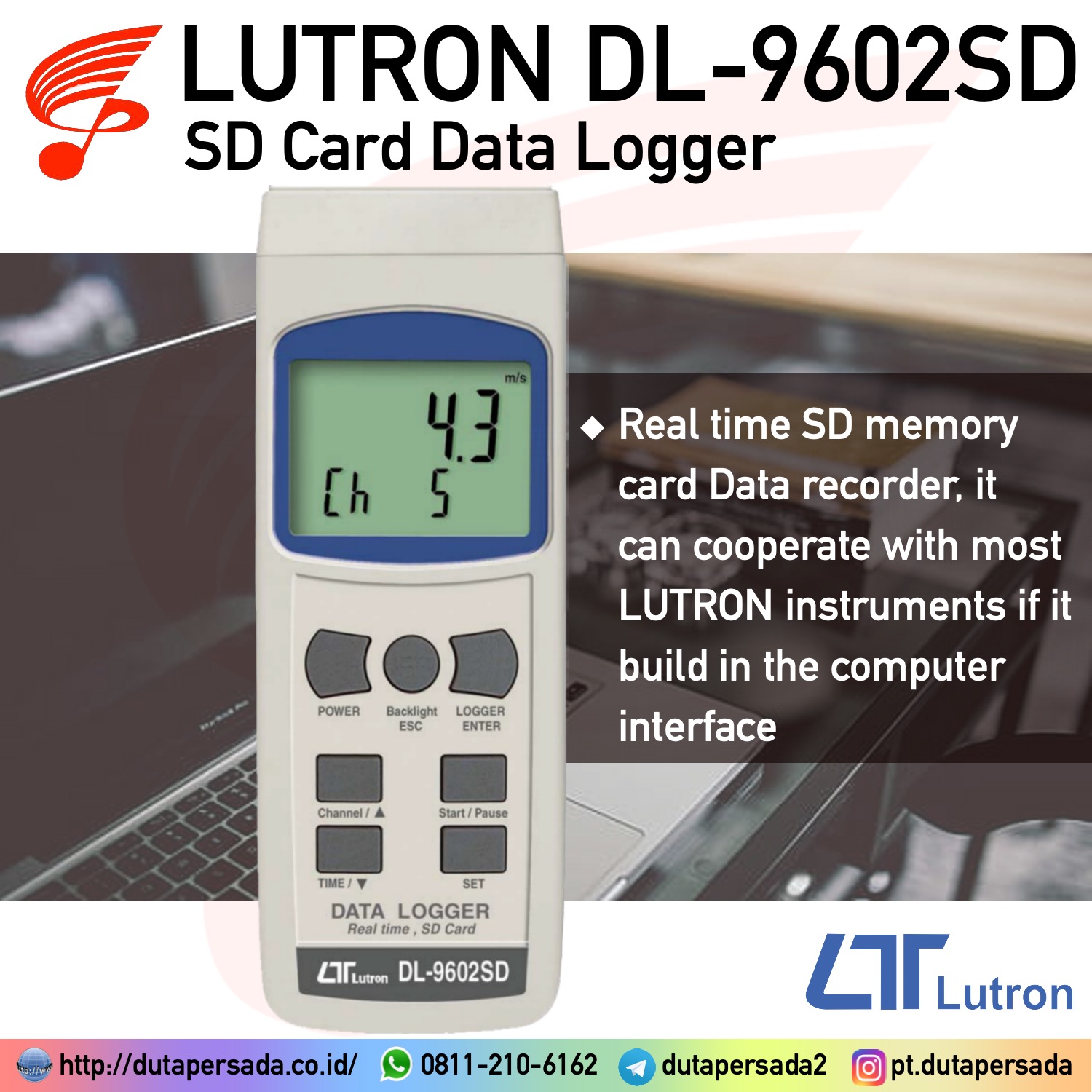

Lutron DL-9602SD – Real Time SD Card Data Logger
Availability:
5 in stock
The DL-9602SD Set offers accurate and reliable measurements along with real-time data recording capabilities, making it an essential tool for various applications in electrical maintenance, troubleshooting, industrial environments, and quality control.
Status Barang: Preorder (8 minggu)
Kondisi: Baru
Minimal Order: 1 pcs
⚠️ Barang ini Pre-Order (Full Payment). Pengiriman akan dilakukan setelah barang tersedia.
$203.19
5 in stock
SD CARD DATA LOGGER
Model: DL-9602SD
OVERVIEW:
The DL-9602SD Set offers accurate and reliable measurements along with real-time data recording capabilities, making it an essential tool for various applications in electrical maintenance, troubleshooting, industrial environments, and quality control.
FEATURES:
◆ Real time SD memory card Data recorder, it can cooperate with most LUTRON instruments if it build in the computer interface
◆ Innovation and easy operation, computer is not need to setup extra software, just take way the SD card from the DL-9602SD and plug in the SD card into the computer, then download the measured value with the time information (year / month / date / hour / minute / second) to the Excel directly. User can make the further data or graphic analysis in the Excel by themselves
◆ Built-in Clock and Calendar, real time data recorder, sampling time set from 2 seconds to 8 hours 59 minutes 59 seconds
◆ Manual recorder is available (set the sampling time to 0), during execute the manual recorder function, it can set the different place location No.(place 1 to place 99)
◆ SD card (optional) capacity : 1 GB to 16 GB
◆ Can set max. 9 channels data input with default
◆ LCD with green light backlight, easy reading
◆ RS232/USB computer interface
EACH UNIT INCLUDES WITH:
◆ Instruction manual
◆ Interface cable, UPCB-03
OPTIONAL ACCESSORIES:
◆ Hard carrying case, CA-06
◆ SD Card
| Weight | 0.5 kg |
|---|
SPECIFICATIONS
Application |
|
Circuit | Custom one-chip of microprocessor LSI circuit. |
Display | LCD size : 52 mm x 38 mm LCD with Backlight ( ON/OFF ). |
Input Signal | Direct RS232 signal input. Isolate RS232 signal input. |
Advanced setting | * SD memory card Format | |
* Set input channel No. | ||
* Set sampling time ( Hour/Minute/ Second ) | ||
* Auto power OFF management | ||
* Set LCD backlight ON/OFF | ||
* Set beeper sound ON/OFF | ||
Power off | Auto shut off saves battery life or manual off by push button. | |
Sampling Time Setting range | Auto | 2 seconds to 8 hours 59 min. 59 seconds. but memory data may loss |
Manual | Push the data logger button once will save data one time. @ Set the sampling time to 0 second. | |
Data error no. | 0.1% of total saved data max. | |
Data Output | RS 232/USB PC computer interface. * The output data structure are same as the input data.
| |
Operating Temp. and Humidity | 0 to 50 °C. | |
Power Supply | *AClk/aDliCnepowrehreavdyapdtuetryisDoCp1ti.o5nVal.battery ( UM3, AA ) x 6 PCs, or equivalent. | |
* ADC/D9CV paodwapetrear dinaputet.r (isAoCp/tDioCnpalo.wer adapter is optional ). | ||
Power Current | Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 7 mA. | |
When SD card save the data and LCD Backlight is OFF) : Approx. DC 28 mA. | ||
* AIfCL/DCCD pboawckelirgahdtaopnt,erthise oppotwioenral. consumption will increase approx. 17 mA. | ||
Weight | 468 g/1.03 LB. | |
Dimension | 178 x 68 x 44 mm (7.0 x 2.7x 1.7 inch) | |
Standard Accessories Included | * Instruction manual……………………..1…P..C | |
Optional Accessory | Hard carrying case, CA-06 | |
