Conductivity Meter

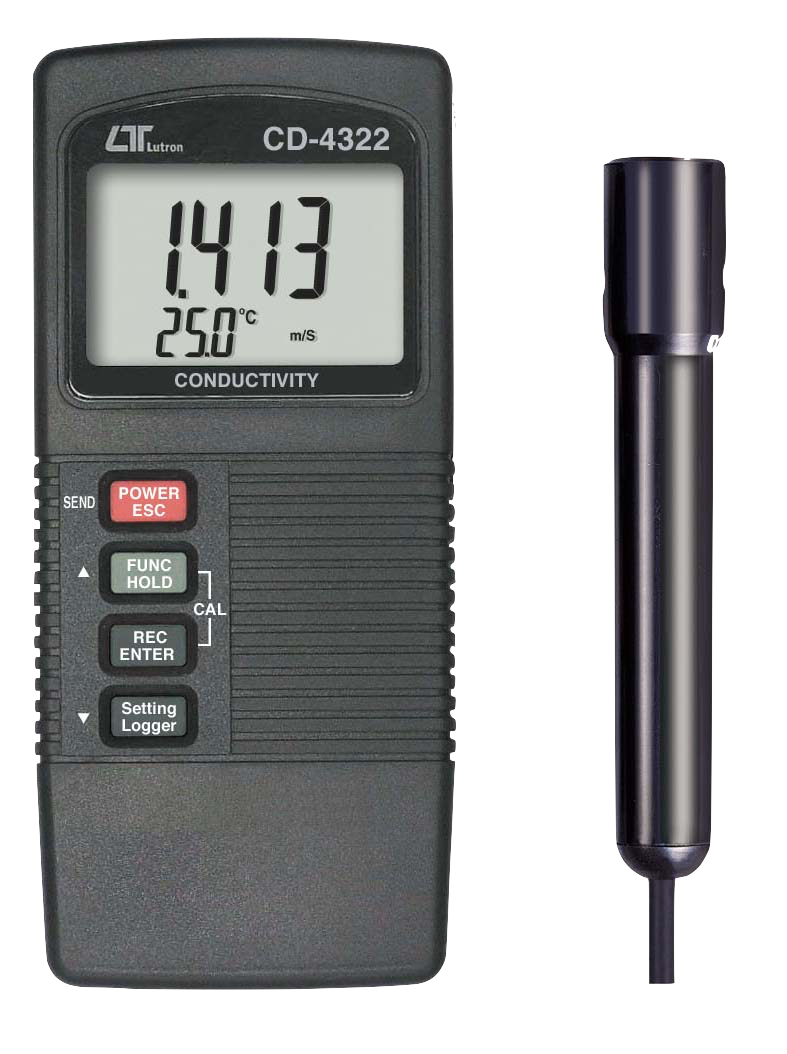

Lutron CD-4322 – Conductivity Meter with Temperature
Availability:
5 in stock
The CD-4322 Conductivity Meter is designed for high precision and versatility, featuring automatic calibration, data logging capabilities, and multiple measurement ranges, making it an ideal tool for various applications.
Status Barang: Preorder (8 minggu)
Kondisi: Baru
Minimal Order: 1 pcs
⚠️ Barang ini Pre-Order (Full Payment). Pengiriman akan dilakukan setelah barang tersedia.
$130.48
5 in stock
CONDUCTIVITY METER
Model: CD-4322
OVERVIEW:
The CD-4322 Conductivity Meter is designed for high precision and versatility, featuring automatic calibration, data logging capabilities, and multiple measurement ranges, making it an ideal tool for various applications.
FEATURES
◆ 3 measurement range, 2,000 uS, 20 mS, 100 mS with auto range.
◆ Separate probe, easy for operation of different measurement environment.
◆ Automatic temperature compensation range : 0 to 50 .
◆ Carbon rod electrode for long life.
◆ Innovative feature with built-in automatic temperature compensation factor adjustable between 0 to 5.0% per .
◆ Selecting ” 0% per ” of Temp. Coefficient Adjust, allows you to take uncompensated conductivity readings (absolute conductivity measurement).
◆ Microprocessor circuit assures high accuracy and provides special functions and features.
◆ Multi-display, show Conductivity and Temp. value at the same time.
◆ Data hold function for freezing the desired value.
◆ Records max. and min. value with recall.
◆ Build in temperature , measurement with default.
◆ Manual and auto data logger, with flexible sampling time selection, can save max. 1,600 reading data.
◆ Power function can default to auto off or manual off.
◆ Build in the input socket for DC 9V power adapter.
◆ Use the durable, long-lasting components, including a heavy duty & compact ABS-plastic housing case.
◆ RS232/USB PC serial interface.
◆ Applications for Aquarium, Medical research, Agriculture, Fish hatcheries, Laboratory, Water conditioning, Mining industry, Schools & Colleges, Quality control… industry, quality control, school & college, water conditioning.
ACCESSORIES INCLUDED:
◆ Conductivity probe
◆ Operation manual
OPTIONAL ACCESSORIES:
◆ 1.413 mS Conductivity StandardSolution, CD-14
◆ RS232 cabl, UPCB-02
◆ USB cabl, USB-01
| Weight | 0.5 kg |
|---|
SPECIFICATIONS
Display LCD size : 44 mm x 29 mm. Dual function LCD | ||
Circuit Custom one-chip of microprocessor LSI circuit. | ||
Function Conductivity, TDS. | ||
Ranges | Conductivity : | |
TDS : | ||
Accuracy | ± (2%FS+1d) * FS : full scale | |
Temperature Compensation | Automatic from 0 to 50 °C (32 – 122 °F), with temperature compensation factor variable between 0 to 5.0% per C. | |
Conductivity Probe Structure | Carbon rod electrode for long life. | |
Memory Recall | Records Maximum, Minimum readings with recall. | |
Power off | Auto power off saves battery life, or manual off by push button. Power will off automatically after 10 min., if no button be pressed. | |
Data Output | RS 232 PC serial interface. | |
Sampling Time of Data Logger | Manual | Push the data logger button once will save data one time. * Set sampling time to 0 second. |
Auto | 1, 2, 5, 10, 30, 60, 600, 1800, 3600 seconds. | |
Data Logger number | Max. 1,600-point Data logger | |
Data Hold | Freeze the display reading. | |
Sampling Time of display | Approx. 1 second. | |
Data Output | RS 232 PC serial interface. | |
Operating Temperature | 0 to 50 °C. | |
Operating Humidity | Less than 80% RH. | |
Power Supply | 006P DC 9V battery ( Alkaline or Heavy duty type ) or DC 9V adapter input. | |
Power Current | Approx. DC 5.7 mA. | |
Weight | 295 g/0.65 LB. * Include probe and batterry. | |
Dimension | Main instrument : 135 x 60 x 33 mm. |
Conductivity Probe : | |
Accessories Included | Conductivity probe………………………….. 1 PC. Operation manual…………………………….1 PC. |
Optional Accessories | * 1.413 mS Conductivity Standard Solution………………………….CD-14 * RS232 cable…………………….UPCB-02 *USB cable……………………….USB-01 |
