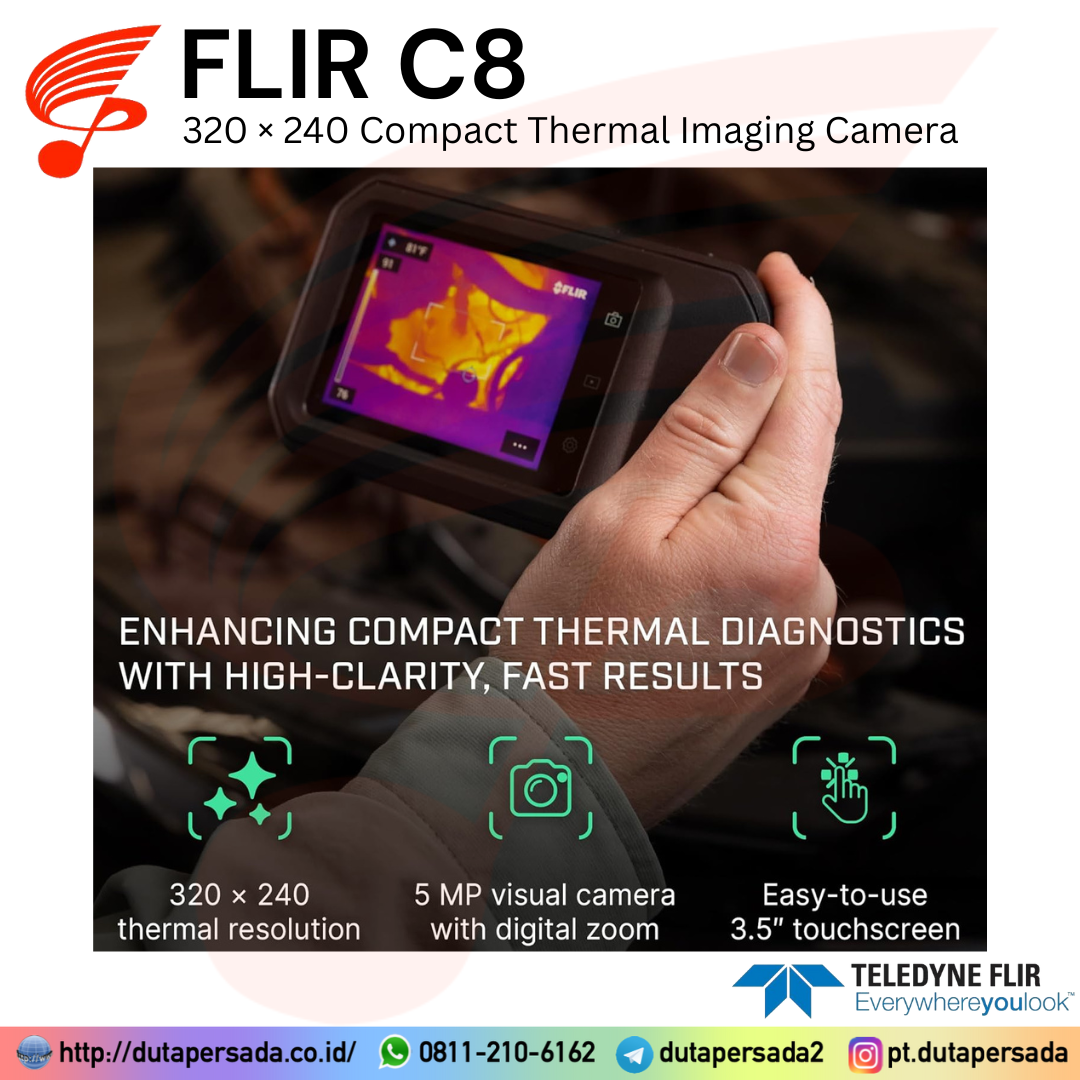

Flir C8 – 320 × 240 IR Resolution Compact Thermal Imaging Camera
5 in stock

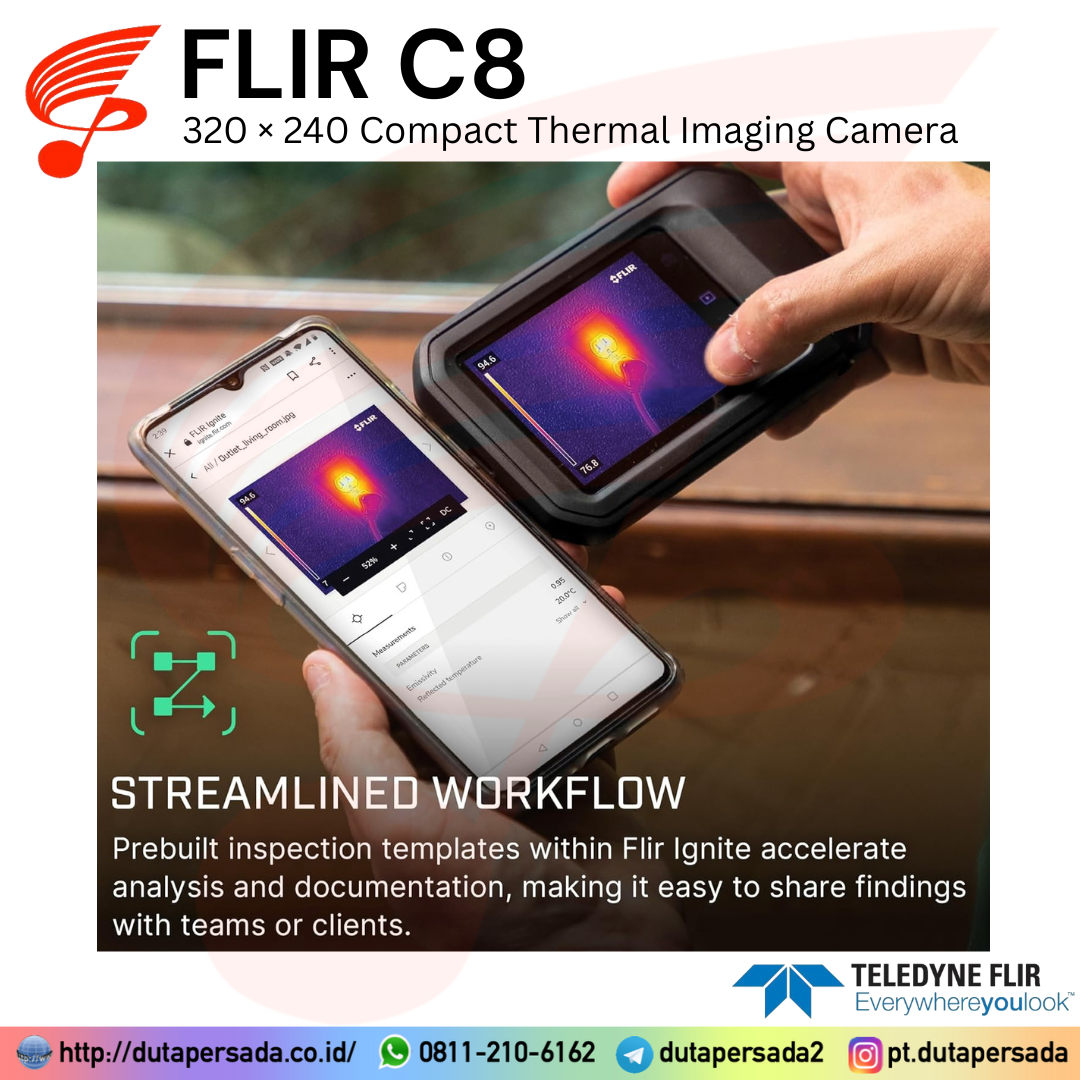

Flir C8 compact thermal imaging camera is designed to deliver faster, clearer, and more reliable inspections. Featuring 320 × 240 thermal resolution with MSX® detail enhancement, the C8 captures sharp thermal images for accurate diagnostics. Integrated Flir Ignite cloud connectivity and advanced reporting templates streamline workflows, save time, and support easy collaboration.
Status Barang: Preorder (8 Minggu)
Kondisi: Baru
Minimal Order: 1 pcs
NOTE:
BARANG TIDAK BERSEGEL, SEGEL KAMI BUKA UNTUK MEMASTIKAN ALAT BERFUNGSI DENGAN BAIK, KAMI TIDAK MENERIMA KOMPLAIN AKIBAT SEGEL YG SDH TERBUKA
OVERVIEW:
Flir C8 compact thermal imaging camera is designed to deliver faster, clearer, and more reliable inspections. Featuring 320 × 240 thermal resolution with MSX® detail enhancement, the C8 captures sharp thermal images for accurate diagnostics. Integrated Flir Ignite cloud connectivity and advanced reporting templates streamline workflows, save time, and support easy collaboration.
KEY FEATURES:
◆ Superior thermal imaging quality with the 320 × 240 (76,800 pixels) true thermal imager for faster and more accurate analysis to find faults and anomalies
◆ Flir-patented MSX® enhancement, which embosses visible details onto thermal images for faster problem identification
◆ Isotherm instantly detects if temperature of equipment is exceeding a set threshold
SPECs:
◆ Temp. Range: -20°C to 450°C
◆ FOV: 35° × 27°
◆ Min Focus Distance: 0.4 m (1.3 ft)
◆ Image Freq: 9 Hz
◆ Spectral Range: 7,5μm – 13μm
◆ 3.5″ Display
◆ Storage: Internal memory & onboard FLIR Ignite cloud connectivity (with Wi-Fi)
◆ Image storage capacity: ±5,000 image
EACH UNIT INCLUDES WITH:
◆ Flir C8
◆ Printed documentation
◆ Wrist strap lanyard
◆USB cable
◆ Pouch
| Weight | 0.5 kg |
|---|
| Highlighted | |
|---|---|
| IR Resolution | 320 × 240 pixels |
| Thermal Sensitivity/NETD | <50 mK |
| Accuracy | Accuracy at ambient temp. 10°C to 35°C (50°F to 95°F) and object temp. above 0°C (32°F): • 0°C to 100°C (32°F to 212°F): ±2°C (±5.5°F) • 100°C to 450°C (212°F to 842°F): ±2% |
| Field of view (FOV) | 35° × 27° |
| Digital Camera | 5 MP, Fixed focus, 71.5° × 56° (84° diagonal) field of view |
| Image Modes | • Infrared image • Visual image • MSX • Picture in picture (IR area on visual image) |
| Display | 3.5 in, auto orientation |
| Storage Media | Built-in |
| Imaging & Optical | |
|---|---|
| Automatic Image Adjustment | • Automatic level and span |
| Camera software update | • Automatic over Wi-Fi • USB via computer |
| Color Palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Detector Pitch | 12 µm |
| Detector Type | Focal plane array, uncooled microbolometer |
| Digital Camera | 5 MP, Fixed focus, 71.5° × 56° (84° diagonal) field of view |
| Digital Zoom | Yes, zoom pinch, 1–4× continuous |
| Display resolution | 640 × 480 pixels |
| f-number | 1.4 |
| Field of view (FOV) | 35° × 27° |
| Focus | Focus free |
| Gallery | Yes, incl. thumbnails and custom folder structure |
| Image Frequency | 9 Hz |
| Image Modes | • Infrared image • Visual image • MSX • Picture in picture (IR area on visual image) |
| IR Resolution | 320 × 240 pixels |
| Manual Image Adjustment | • Manual level and span • 1-Touch level and span |
| Minimum Focus Distance | 0.4 m (1.3 ft) |
| Spatial resolution (IFOV) | 2.0 mrad/pixel |
| Spectral Range | 7.5 to 13 µm |
| Thermal Sensitivity/NETD | <50 mK |
| Video Streaming | Yes; MSX, Thermal, Visual, Picture in Picture. USB Video Class colorized uncompressed with overlay 9 Hz. |
| Measurement & Analysis | |
|---|---|
| Accuracy | Accuracy at ambient temp. 10°C to 35°C (50°F to 95°F) and object temp. above 0°C (32°F): • 0°C to 100°C (32°F to 212°F): ±2°C (±5.5°F) • 100°C to 450°C (212°F to 842°F): ±2% |
| Measurement Tools | • Spot • Box with max./min. • Isotherm |
| Measurements correction | • Emissivity; matt/semi-matt/semi-glossy + custom value • Reflected apparent temperature • Atmospheric compensation |
| Object Temperature Range | -20°C to 450°C (-4°F to 842°F) |
| User Interface | |
|---|---|
| Display | 3.5 in, auto orientation |
| Text | Image annotations: Soft keyboard on touchscreen, auto-prompt for note when image is saved |
| Touchscreen | Yes, capacitive |
| Communication & Data Storage | |
|---|---|
| Bluetooth | Bluetooth v. 5.0 EDR • PAN |
| Image File Format | Standard JPEG, 14-bit measurement data included |
| Image Storage Capacity | >5000 sets of images |
| Storage Media | Built-in |
| USB | USB 2.0, Type-C connector |
| WiFi | 802.11 a/b/g/n (2.4 and 5 GHz) |
| Power | |
|---|---|
| Battery operating time | 3 hours |
| Battery Type | Rechargeable Li-Ion battery (built-in) |
| Battery voltage | 3.7 V |
| Charging system | USB-C (1 A) |
| Charging Time | 2 hours |
| External Power Operation | 5 V, USB-C |
| Power Management | Adjustable stand-by and automatic shut-down |
| Environmental & Certifications | |
|---|---|
| Drop | Designed for 2 m (6.56 ft) |
| EMC | • EN 301 489-1 RED • EN 301 489-17 • FCC 47 CFR Part 15 B, Class B |
| Encapsulation | IP54 |
| Humidity (Operating and Storage) | IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C (77°F to 104°F) / 2 cycles |
| Operating Temperature Range | -10° to 50°C (14°F to 122°F) |
| Radio Spectrum | • ETSI EN 300 328 • EN 301 893 • FCC Title 47 CFR Part 15 • RSS-247 |
| Safety | EN 62368-1 |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Tripod Mounting | UNC ¼″-20 |
| General | |
|---|---|
| Package Includes | • Flir C8 • Printed documentation • Wrist strap lanyard • USB cable • Pouch |
| Size (L x W x H) | 138 × 84 × 34 mm (5.4 × 3.3 × 0.94 in) |
| Weight | 0.19 kg (0.42 lb) |
