Distance Meter

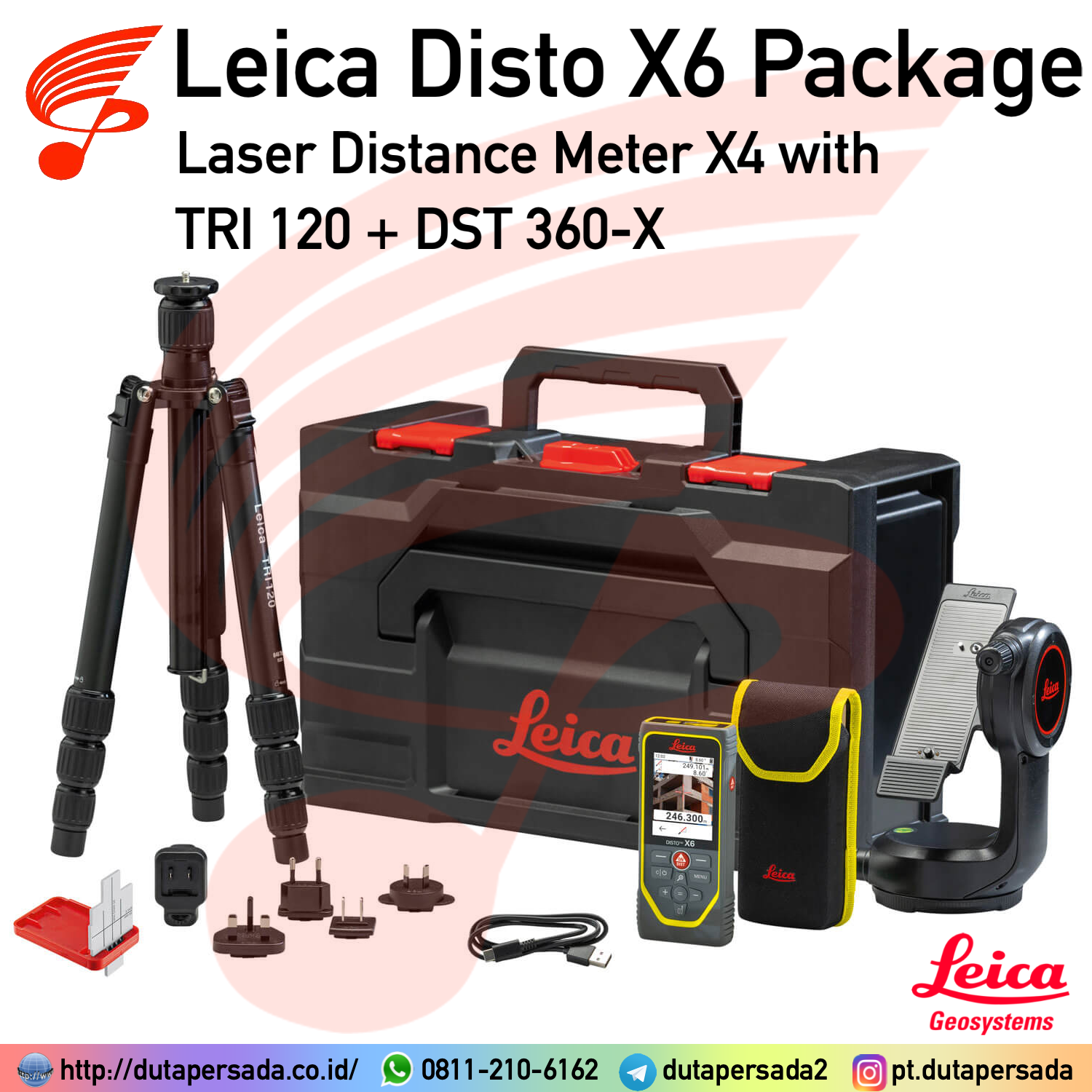

Leica Disto X6 Package – Laser Distance Meter Disto X6 with DST 360-X + TRI 120
Availability:
3 in stock
The combination of the DISTO X6 and the Leica DST 360-X Adapter enables P2P Technology, which means distances between any two points or complex areas can be measured from a safe location, even in inaccessible areas. Afterwards, the results can be downloaded as perfectly organised DXF files and further processed in any CAD software. Visualisation of the data in the DISTO Plan app is also possible directly on site, allowing you to see immediately if any measurement points are still missing. This supports the digitalisation process, shortens workflows, saves money and avoids errors.
Status Barang: Ready
Kondisi: Baru
Minimal Order: 1 pcs
Leica Disto X6 Package
Laser Distance Meter X6 with DST 360-X and TRI 120
OVERVIEW:
The Leica DISTO X6 with its extremely robust housing, IP65 protection class and scratch-resistant
display glass is particularly suitable for rough construction site use. A new crystal-clear, touch screen display, it is perfect for using the digital point finder to target objects upto 250m outside. Bluetooth enabled – link to the free Leica Disto Plan app, transfer measurements into excel or any application running on your tablet PC. Add the P2P adapter, now you can measure anything, anywhere in 3D. Capture DXF files and send directly to CAD.
FEATURES:
◆ Range: 250m
◆ Accuracy: ± 1 mm
◆ Colour touchscreen with Digital Pointfinder 4x zoom
◆ Robust according to IP65 and drop tested from 2 meters
◆ Indirect height measurement, 360° tilt sensor, Measuring units: m, ft, in
◆ Trigger measurements with a gesture – for max accuracy
◆ Bluetooth 5.0 Technology for error-free data transfer
◆ Area & volume function | Addition/subtraction
◆ Smart horizontal mode | Pythagoras function
◆ Stake-out function | Height tracking
◆ Inclination tracking | Sloped objects | Trapezium
◆ Distance measurement | Min/max measurement
◆ Works with DISTO Plan App (iOS and Android) and DISTO transfer (Windows)
◆ P2P measuring with DST 360-X adapter
EACH UNIT INCLUDES WITH:
◆ Leica DISTO X6
◆ Pouch
◆ Charger with Cable
◆ Hand Loop
◆ DST 360-X Adapter
◆ TRI 120 Tripod
◆ GZM 3 Target Plate
◆ metaBOX
◆ Quick Start Guide
◆ Safety Manual
◆ Calibration Certificate Silver
| Weight | 10 kg |
|---|
The specifications for the table below are for the Leica DISTO X6 with the DST 360-X.
Leica DISTO X6 – P2P Package | |
| Accuracy with favourable conditions * | 1.0 mm / 1/16″ *** |
| Accuracy with unfavourable conditions ** | 2.0 mm / 1/8″ *** |
| Range with favourable conditions * | 0.05 – 250 m / 0.16 – 820 ft *** |
| Range with unfavourable conditions ** | 0.05 – 150 m / 0.16 – 500 ft *** |
| Smallest unit displayed | 0.1 mm / 1/32 in |
| X-Range Power Technology | Yes |
| Laser | class 2, 635 nm, <1 mW |
| Digital Pointfinder with 4-fold zoom | Yes |
| Tilt measuring range **** | 360° |
| Tilt measuring tolerance | ± 0.2° |
| Measuring range with Leica DST 360-X horizontal | 360° |
| Measuring range with Leica DST 360-X vertical | -64° to > 90° |
| Tolerance P2P function at distances | ± 5 mm / 5 m |
| ø laser point | at distances | 6 / 30 / 60 mm | 10 / 50 / 100 m |
| Auto. laser switch off after | 90 s |
| Auto. power switch off after | 180 s |
| Memory | for 300 reports and 1’000 captured 3D points |
| Bluetooth® Smart | Bluetooth® v5.0 |
| Range of Bluetooth® Smart | up to 10 m |
| Battery durability (Li-Ion 2 000 mAh) | up to 4’000 measurements |
| Dimension of the device incl. adapter (H x D x W) | 208 x 190 x 150 mm |
| Weight (with batteries) | 1580 g |
| Temperature range storage | operation (Applies to X6 device only.) | -25 to 70 °C | -10 to 55°C |
