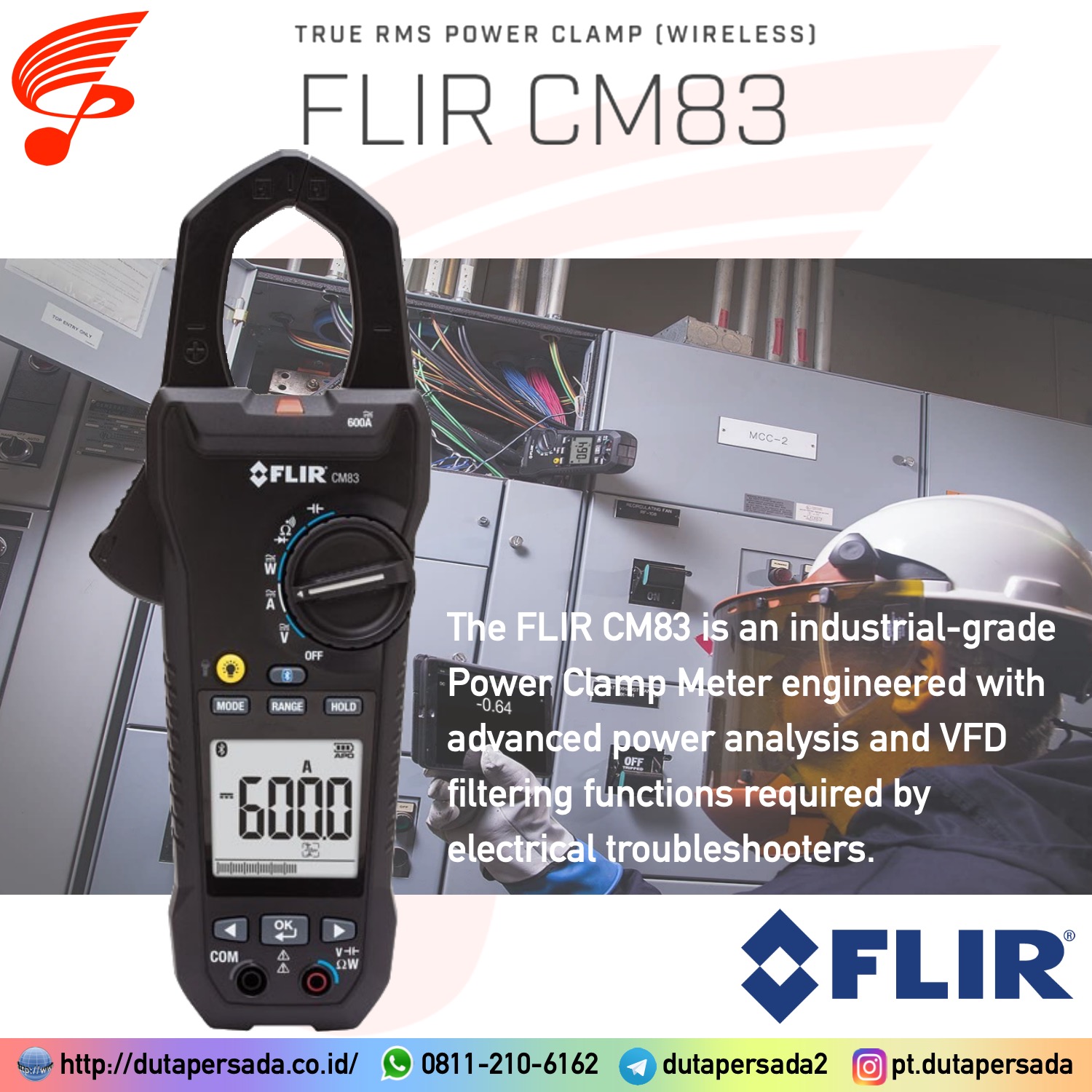

Flir CM83 – True RMS Power Clamp Meter (Wireless)
Availability:
3 in stock
FLIR CM83 industrial-grade power clamp meters are engineered with advanced power analysis and variable frequency drive (VFD) filtering functions required by electrical troubleshooters. The CM83 meters offer additional features including Bluetooth technology to connect compatible mobile devices for remote viewing and sharing, and METERLiNK technology, to wirelessly embed electrical readings into radiometric infrared images on compatible FLIR thermal cameras
Status Barang: Ready
Kondisi: Baru
Minimal Order: -3 pcs
$524.60
3 in stock
OVERVIEW:
FLIR CM83 industrial-grade power clamp meters are engineered with advanced power analysis and variable frequency drive (VFD) filtering functions required by electrical troubleshooters. The CM83 meters offer additional features including Bluetooth technology to connect compatible mobile devices for remote viewing and sharing, and METERLiNK technology, to wirelessly embed electrical readings into radiometric infrared images on compatible FLIR thermal cameras

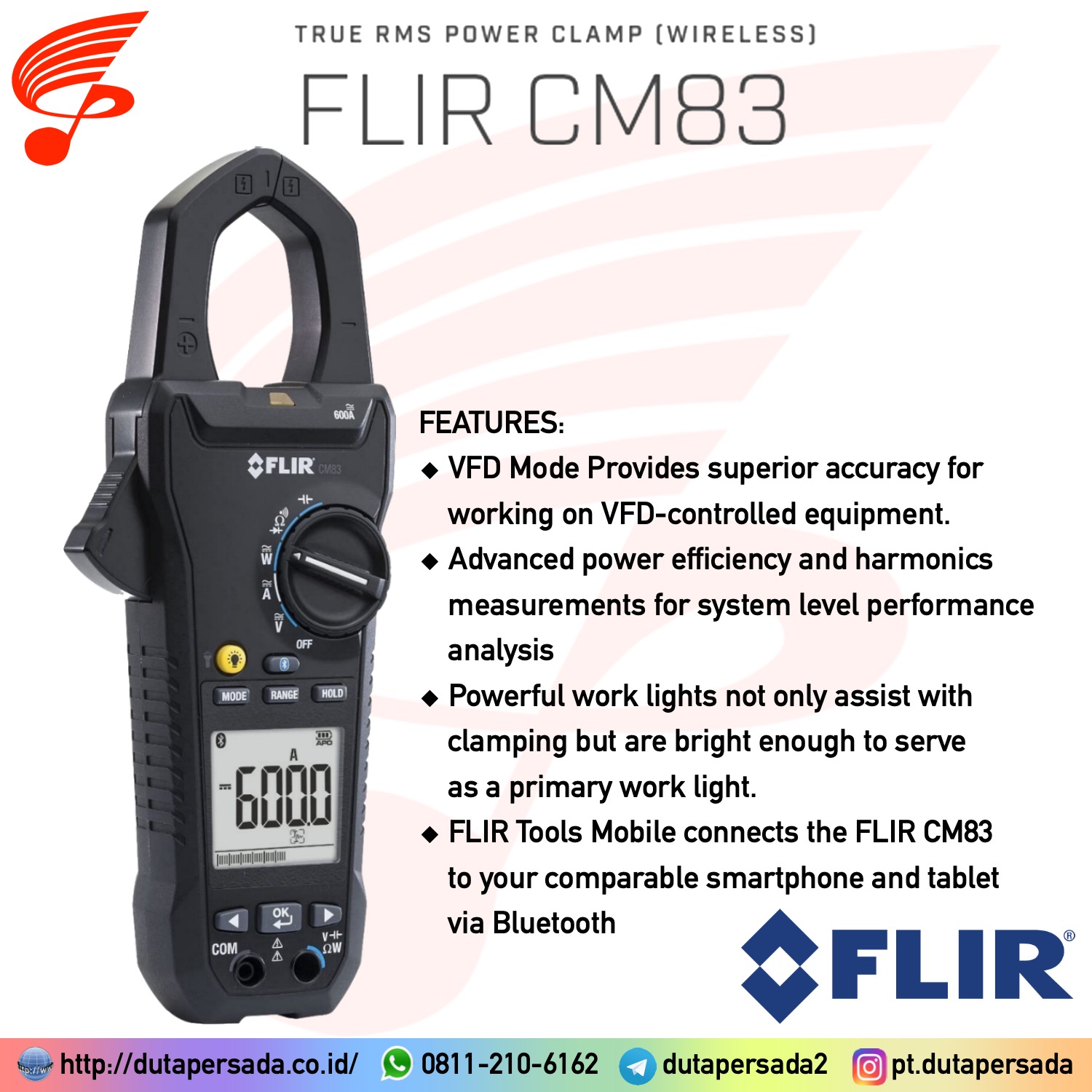

KEY FEATURES:
◆ Superior accuracy.
◆ Advanced power analysis and variable frequency drive filtering functions
◆ VFD Mode provides superior accuracy for working on VFD-controlled equipment
◆ Advanced power efficiency and harmonics measurements for system level performance analysis
◆ True RMS voltage and current plus non-contact voltage detector
◆ Reliable performance.
◆ Dependable functionality vital to professionals
◆ 2 meter drop tested with
◆ Inrush mode captures fast AC Current spikes during appliance start-up
◆ Phase Rotation testing ensures the motor and power source are aligned
EACH UNIT INCLUDES WITH:
◆ CM83 Power Clamp
◆ User Manual
◆ TA80 Silicone Test Leads
| Weight | 1.5 kg |
|---|
| Highlighted | |
|---|---|
| Jaw Opening | 37 mm (1.45″, 1500MCM) |
| AC/DC Voltage | Range 999.9 V Max / Basic Accuracy +/- 1% / 0.7% |
| Imaging & Optical | |
|---|---|
| Gallery | 17555 |
| Measurement & Analysis | |
|---|---|
| AC VFD Voltage | Range 1000 V / Basic Accuracy +/- 1% |
| AC/DC Current | Range 599.9 A Max / Basic Accuracy +/- 2% |
| AC/DC Voltage | Range 999.9 V Max / Basic Accuracy +/- 1% / 0.7% |
| Active Power | Range 9.999 kW to 599.9 kW, (10 V, 5 A min) / Basic Accuracy +/- 3% |
| Capacitance | Range 3.999 mF Max / Basic Accuracy +/- 1.9% |
| Category Rating | CAT IV-600V, CAT III-1000V |
| Continuity Threshold | Range 30 Ω / Basic Accuracy +/- 1% |
| Diode Test | Range 0.4 to 0.8 V / Basic Accuracy +/- 0.1V |
| Frequency | Range 20.00 Hz to 9.999 kHz / Basic Accuracy +/- 0.5% |
| Harmonics | Range 1st-25th Order / Basic Accuracy +/- 5% |
| Inrush Current | Range 599.9 ACA Max (Integration Time 100 ms) / Basic Accuracy +/- 3% |
| Resistance | Range 99.99 kΩ Max / Basic Accuracy +/- 1% |
| Total Harmonic Distortion | Range 0.0 to 99.9% / Basic Accuracy +/- 3% |
| Communication & Data Storage | |
|---|---|
| Bluetooth range max | 32 ft (10 m) |
| Power | |
|---|---|
| Battery Type | 6 x AAA |
| General | |
|---|---|
| Jaw Opening | 37 mm (1.45″, 1500MCM) |
| Environmental & Certifications | |
|---|---|
| Certifications | CE, UL, FCC |
