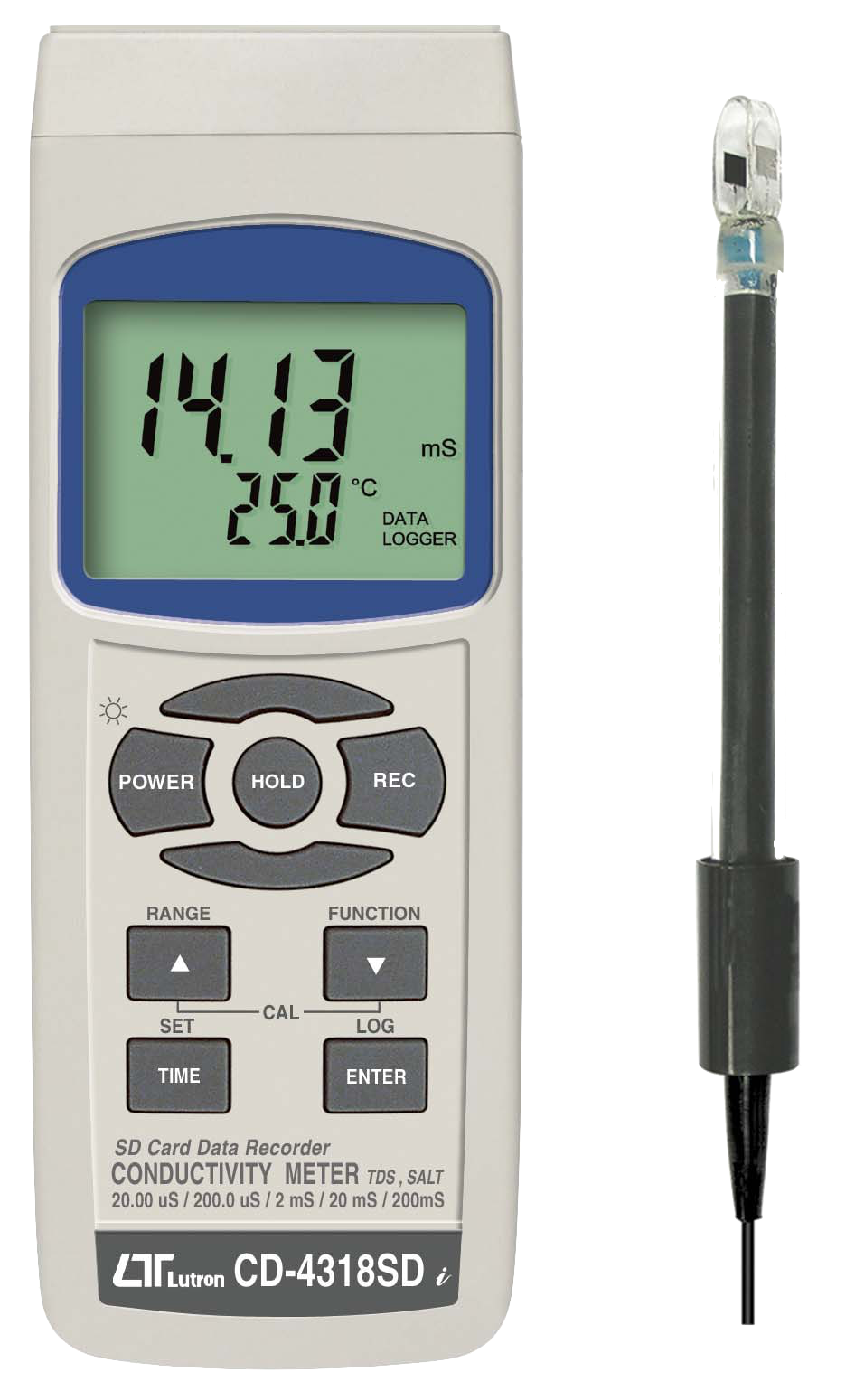

Lutron CD-4318SD – Precision Conductivity/TDS/Salt Meter with Data Logger
5 in stock
The CD-4318SD Conductivity Meter offers comprehensive measurement capabilities with real-time data logging, making it an ideal tool for precise and versatile applications in various industries.
Status Barang: Ready
Kondisi: Baru
Minimal Order: 1 pcs
$260.90
5 in stock
PRECISION CONDUCTIVITY METER
Model: CD-4318SD
FEATURES:
◆ One meter for multi purpose operation: Conductivity, TDS (Total dissolved solids), Salt measurement
◆ Conductivity : 20 uS/ 200 uS/2 mS/20 mS/200 mS
◆ Salt: 0 to 12% salt (%weight)
◆ Conductivity measurement can select Temp. Coefficient of measurement solution
◆ ATC for the conductivity measurement
◆ Separate probe, easy for operation of different measurement environment
◆ Real time SD memory card Datalogger, built-in Clock and Calendar, sampling time can set from 1 sec to 3600 seconds
◆ Manual datalogger is available, during execute the manual datalogger function, it can set the different location no. (position 1 to position 99)
◆ Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information (year/month/date/ hour/minute/second) to the Excel directly, thenuser can make the further data or graphic analysis by themselves
◆ LCD with green light backlight, easy reading
◆ It can default auto power off or manual power off
◆ Data hold, record max. and min. reading
◆ Microcomputer circuit, high accuracy
◆ RS232/USB PC Computer interface
EACH UNIT INCLUDES WITH:
◆ Instruction manual
◆ Conductivity/TDS/Salt pt glass probe: CDPB-04
◆ Hard carrying case
OPTIONAL ACCESSORIES:
◆ 1.413 mS Conductivity Standard Solution: CD-14
◆ SD Card
◆ AC to DC 9V adapter
◆ USB cable, USB-01
◆ RS232 cable, UPCB-02
◆ Data Acquisition software, SW-U801-WIN
| Weight | 2 kg |
|---|
GENERAL SPECIFICATIONS
|
Circuit |
Custom one-chip of microprocessor LSI circuit. |
|
|
Display |
LCD size : 52 mm x 38 mm |
|
|
Measurement Function |
* Conductivity ( uS, mS ) |
|
|
Temperature Compensation |
Automatic from 0 to 60 °C (32 – 140 °F), with temperature compensation factor variable between 0 to 5.0% per C. |
|
|
Conductivity Probe |
Pt glass electrode, high performance for the low conductivity ( pure water ) measurement. |
|
|
Datalogger Sampling Time Setting range Memory Card |
Auto |
1 sec to 3600 sec. but memory data may loss. |
|
Manual |
Push the data logger button once will save data one time. @Set the sampling time to 0 second. 1 to 99 position ( Location ) no. |
|
|
SD memory card. 1 GB to 16 GB. |
||
|
Advanced setting |
|
|
|
Data Hold |
Freeze the display reading. |
|
|
Memory Recall |
Maximum & Minimum value. |
|
|
Sampling Time of Display |
Approx. 1 second. |
|
|
Data Output |
RS 232/USB PC computer interface. * Connect the optional RS232 cable UPCB-02 will get the RS232 plug. * Connect the optional USB cable USB-01 will get the USB plug. |
|
|
Operating Temperature |
Meter |
0 to 50 °C. |
|
Probe |
0 to 60 °C. |
|
|
Operating Humidity |
Less than 85% R.H. |
|
|
Power Supply |
* Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent. * DC 9V adapter input. ( AC/DC power adapter is optional ). |
|
|
Power Current |
Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 6 mA. Approx. DC 37 mA. consumption will increase approx. 12 mA. |
|
|
Weight |
489 g/1.08 LB. |
|
|
Dimension |
Meter |
177 x 68 x 45 mm (7.0 x 2.7x 1.9 inch) |
|
Probe |
Round, |
|
|
Accessories Included |
* Instruction manual………………………… 1 PC |
|
|
Optional Accessories |
1.413 mS Conductivity Standard Solution, CD-14
AC to DC 9V adapter.
USB cable, USB-01. |
|
ELECTRICAL SPECIFICATIONS (23± 5 °C)
Conductivity ( uS, mS )
|
Range |
Measurement |
Resolution |
Accuracy |
|
20 uS |
0 to 20.00 uS |
0.01 uS |
± (2% F.S.+1d) * F.S. : full scale full scale |
|
200 uS |
0 to 200.0 uS |
0.1 uS |
|
|
2 mS |
0.2 to 2.000 mS |
0.001 mS |
|
|
20 mS |
2 to 20.00 mS |
0.01 mS |
|
|
200 mS |
20 to 200.0 mS |
0.1 mS |
|
|
* Temperature Compensation : * The accuracy is specified under measurement value ≦ 100 mS. * mS – milli Simens * @ 23± 5°C |
|||
TDS ( Total Dissolved Solids )
|
Range |
Measurement |
Resolution |
Accuracy |
|
20 PPM |
0 to 13.20 PPM |
0.01 PPM 0.1 PPM 1 PPM 10 PPM 100 PPM |
± (2% F.S.+1d) * F.S. : full scale |
|
* Temperature Compensation : * The accuracy is specified under measurement value ≦ 66,000 PPM. * PPM – parts per million * @ 23± 5°C |
|||
Temperature
|
Function |
Measuring Range |
Resolution |
Accuracy |
|
°C |
0 °C to 60 °C |
0.1 °C |
± 0.8 °C |
|
°F |
32 °F to 140 °F |
0.1 °F |
± 1.5 °F |
|
* @ 23± 5°C |
|||
Salt
|
Measurement Range |
0 to 12 % salt ( % weight ). |
|
Resolution |
0.01 % salt. |
|
Accuracy |
± 0.5 % salt value |
